5942133-1 Nonmetallic Hose Assembly (NSN 4720-01-262-2573)

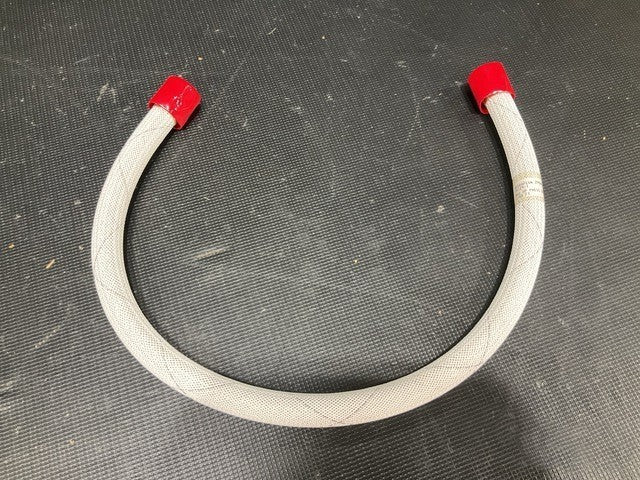

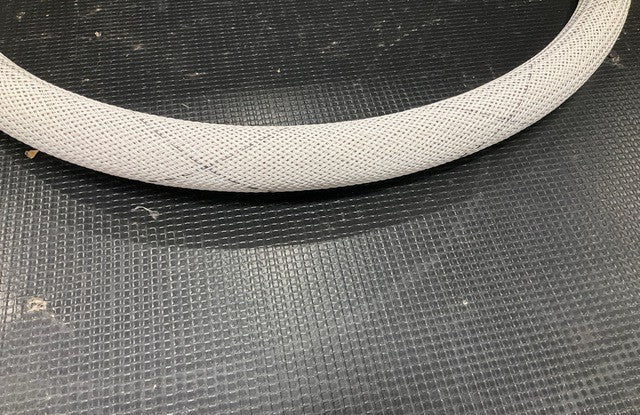

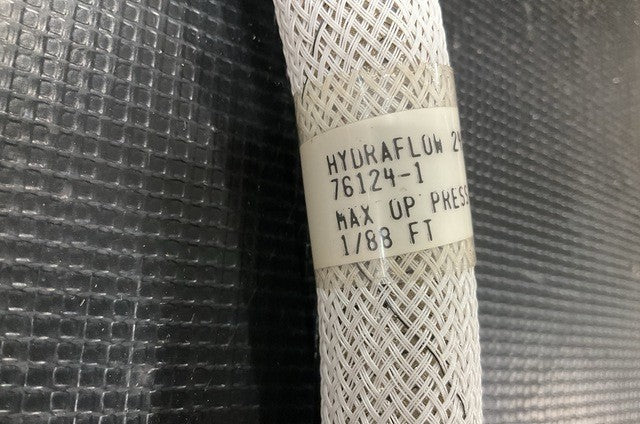

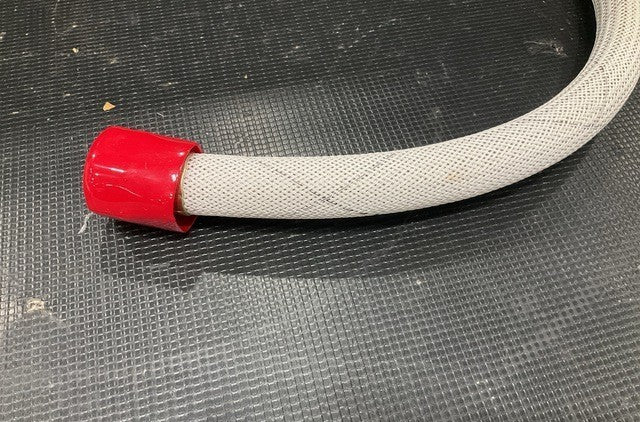

Nonmetallic hose assembly with braided steel wire outer layer, 0.562 in nominal inside diameter, 30 in working length, for the Ticonderoga Class CG 47.

Part Information

• Design Control Activity: Naval Sea Systems Command
• Part Number: 5942133-1
• NSN: 4720-01-262-2573
• End Item: Ticonderoga Class CG 47

Specifications

• Thread Class: 3B
• Thread Direction: First End, Right-Hand
• Inside Diameter: 0.562 in nominal
• Outside Diameter: 0.797 in nominal
• Minimum Inside Bending Radius: 2.000 in
• End Connection Design: First End, Straight
• Connection Type: First End, Threaded Internal Tube
• Thread Quantity Per Inch: 14
• Nominal Thread Size: First End, 1.000 in
• Thread Series Designator: First End, UNS
• Seat Angle: First End, 37.0 Degrees
• Operating Pressure: 205.0 PSI Maximum
• Burst Test Pressure: 1000.0 PSI
• Hydrostatic Test Pressure: 300.0 PSI
• Temp Rating: -67.0°F to 158.0°F
• Layer Composition: Outer Layer, Braided Steel Wire
• Outer Covering: Fire Resistant
• Inside Surface Condition: Smooth
• Measuring Method and Length: 30.000 in Nominal Working
• Media For Which Designed: Air and Fuel/Oil, Hydrocarbon
• Item Structural Composition: Outer Layer, Braided Steel Wire
