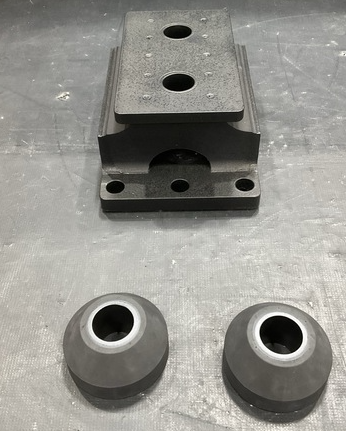

Statz 5B5000H-6BOLT Weapon System Resilient Mount

NSN: 5342-00-543-3867 | P/N: 5B5000H-6BOLT

Heavy-duty weapon system resilient mount designed to absorb shock, reduce vibration, and provide stable support for compatible military and defense equipment.

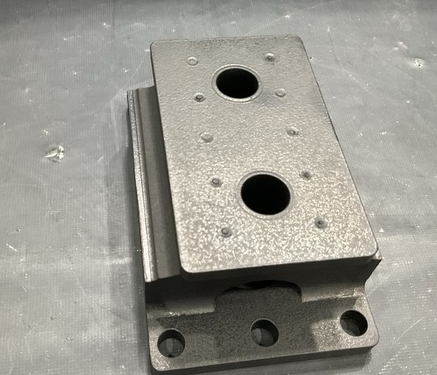

Featuring a rugged steel mounting assembly and natural rubber resilient components, this 6-bolt mount is engineered to isolate equipment from operational vibration and mechanical shock.

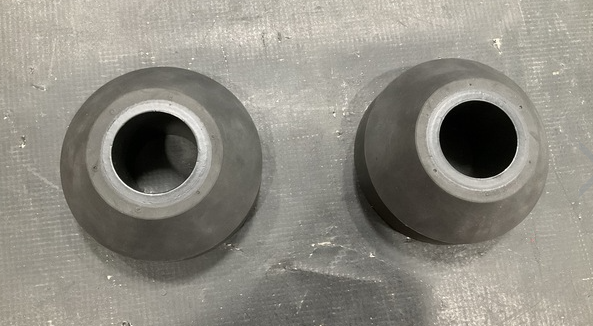

The assembly features a 6-bolt mounting configuration with decelerator cones for demanding military and industrial applications.

Product Specifications

• Part Number: 5B5000H-6BOLT
• NSN: 5342-00-543-3867
• Brand: Statz
• Item Description: Weapon System Resilient Mount
• Configuration: 6-Bolt Assembly
• Construction: Steel and Natural Rubber
• Maximum Rated Load: 5,000 lbs
• Overall Height: 6.656 inches
• Flange Length: 13 inches
• Flange Width: 8 inches
• Flange Thickness: 0.813 inches
• Inside Diameter: 1.516 inches
• Bushing Length: 3.063 inches
• Mounting Hole Diameter: 0.906 inches
• Mounting Hole Center Distance: 11.250 inches
• Shortest Mounting Hole Center Distance: 3.250 inches

Features

• Heavy-duty 6-bolt mounting configuration
• Shock and vibration isolation
• Steel construction with resilient rubber components
• Designed for military weapon system equipment
• Integrated decelerator cone configuration
• 5,000 lb maximum rated load
• Military-specification design

Applications

Designed for use in compatible military weapon system mounting assemblies requiring shock absorption, vibration isolation, and structural support.

Important: Buyers should verify part number, NSN, mounting dimensions, and equipment compatibility before purchasing.
