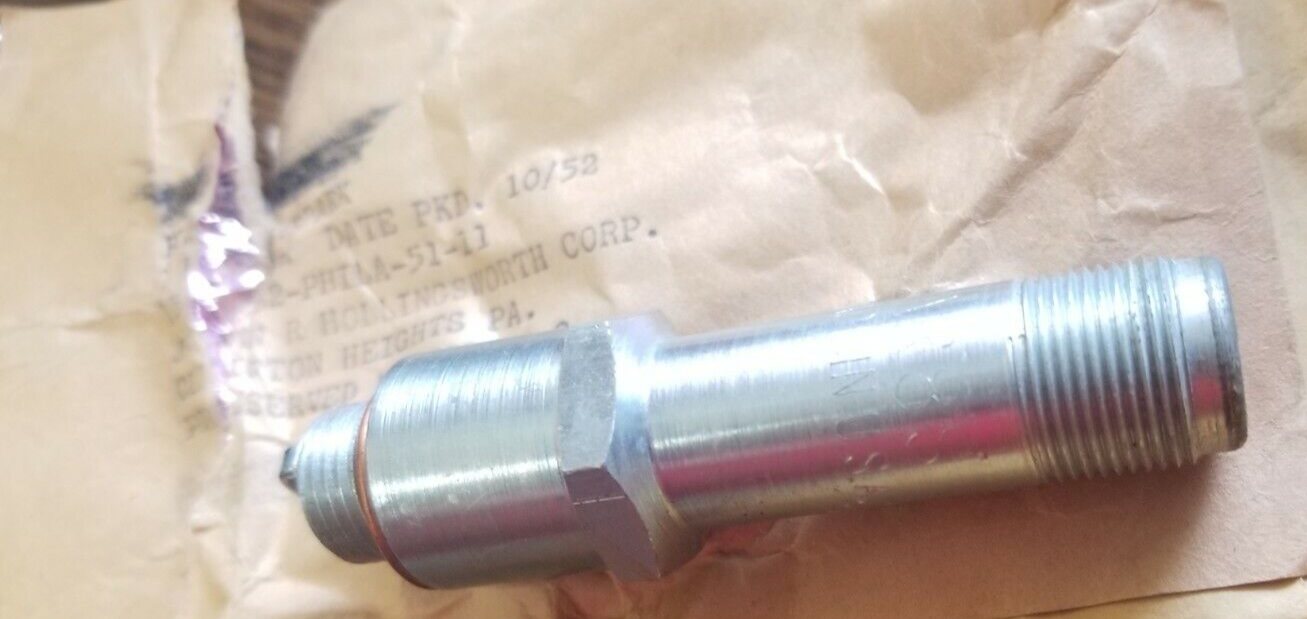

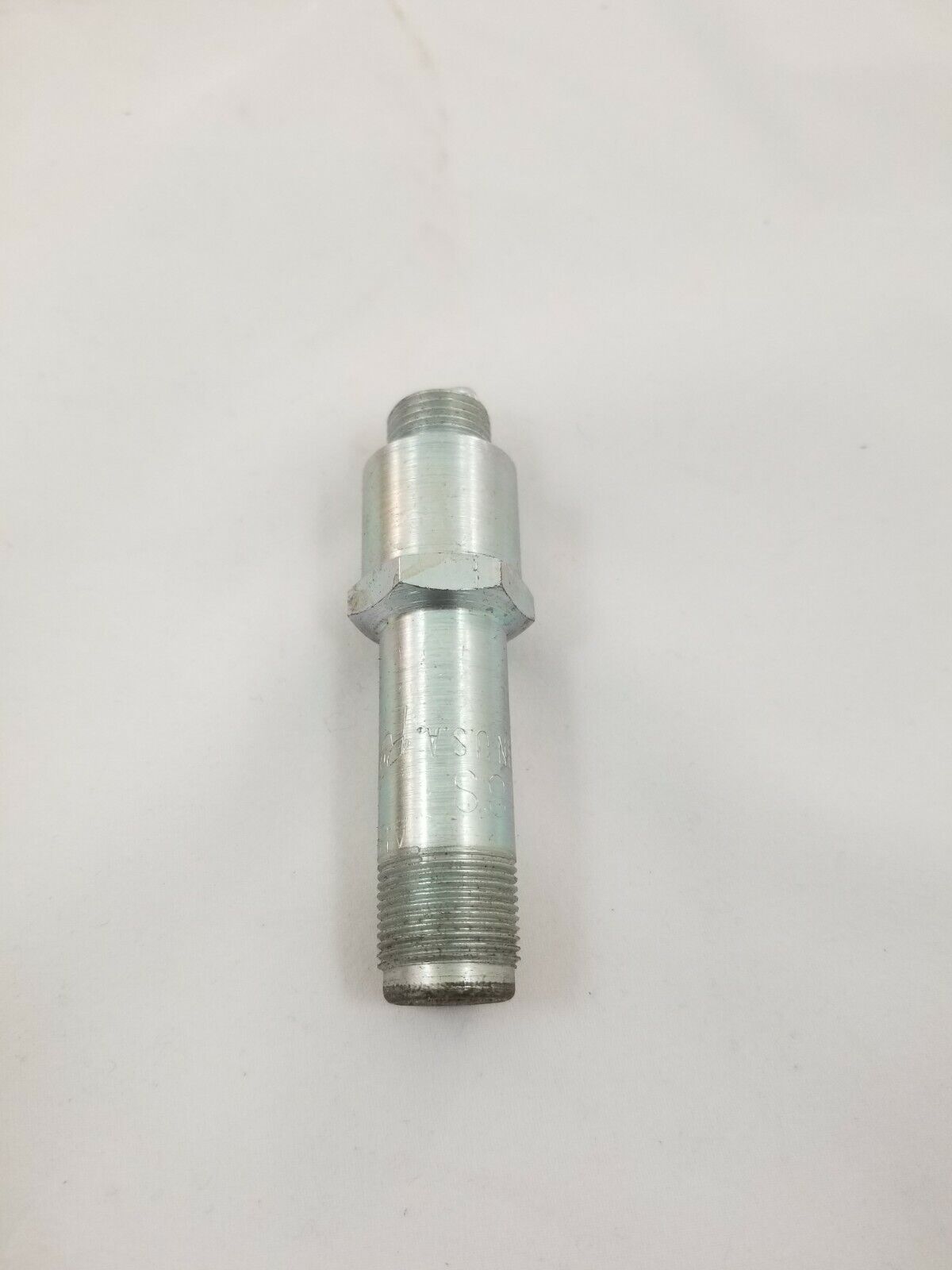

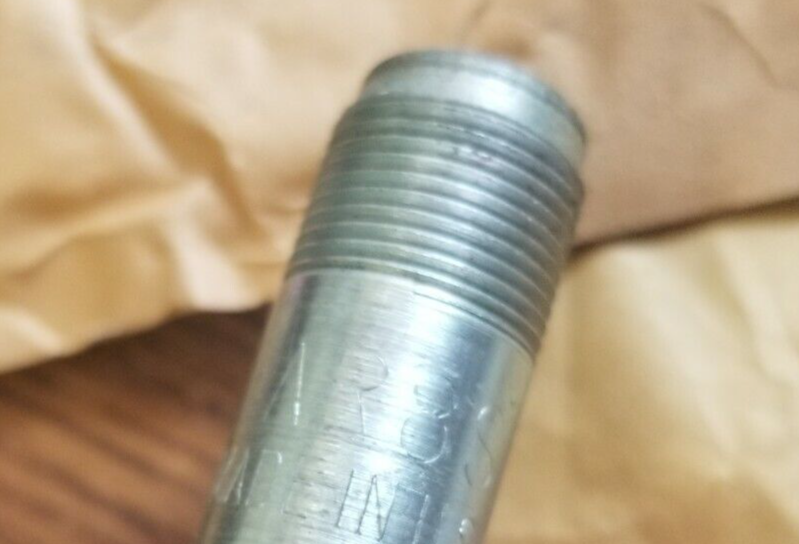

SPARK PLUG JEEP M151 M37 DODGE KAISER JEEP M151 M43 M38 AR8S 2246 HOT LONGER

BODY STYLE

ELECTRICALLY SHIELDED, PARTIAL INSULATOR, GASKET SEAT

DC RESISTANCE RATING IN OHMS

10000.0 NOMINAL

REACH LENGTH

0.375 INCHES NOMINAL

USAGE DESIGN

ENGINE OTHER THAN AIRCRAFT

WIDTH ACROSS FLATS

0.812 INCHES NOMINAL

ELECTRODE STYLE

SINGLE FLAT SHELL GROUND ELECTRODE (SEE ALSO STYLE 4)

THREAD SIZE AND SERIES/TYPE DESIGNATOR AND LOCATION

14-1.25MM BASE ERR-100

THREAD SIZE AND SERIES/TYPE DESIGNATOR AND LOCATION

5/8-24 UNEF SHIELDING ERR-100

MEAN EFFECTIVE PRESSURE RATING

140.0 POUNDS PER SQUARE INCH NOMINAL

SEAT MAJOR DIAMETER

0.800 INCHES NOMINAL

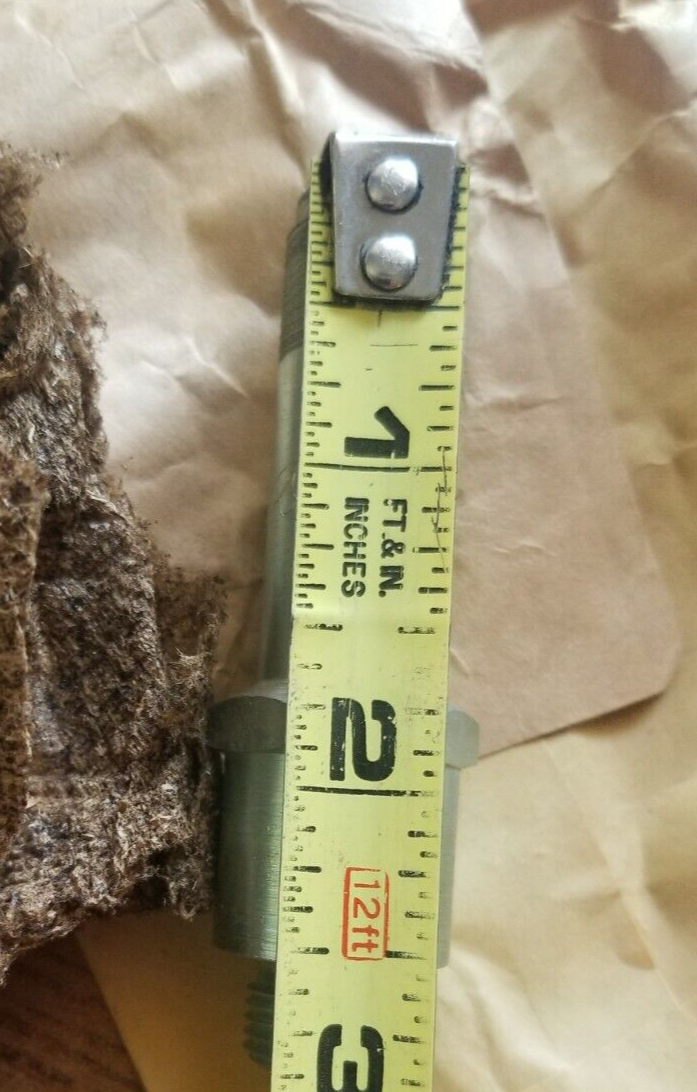

HEIGHT ABOVE MOUNTING SURFACE

2.442 INCHES NOMINAL

TOP TO TERMINAL CONTACT DISTANCE

1.000 INCHES MINIMUM AND 1.050 INCHES MAXIMUM

TOP TO SHIELD THREAD DISTANCE

0.125 INCHES NOMINAL

SHIELD THREAD LENGTH

0.438 INCHES NOMINAL

BARREL INSIDE DIAMETER

0.560 INCHES MINIMUM AND 0.565 INCHES MAXIMUM

TERMINAL SLEEVE INSIDE DIAMETER

0.378 INCHES MINIMUM AND 0.383 INCHES MAXIMUM

SPECIAL FEATURES

GRUMMAN A-10 AIRCRAFT

PROPRIETARY CHARACTERISTICS

PACS

NONDEFINITIVE SPEC/STD DATA

2 TYPE AND A CLASS

BODY STYLE

A6 ELECTRICALLY SHIELDED, PARTIAL INSULATOR, GASKET SEAT

ELECTRODE STYLE

B1 SINGLE FLAT SHELL GROUND ELECTRODE

THREAD SIZE AND SERIES/TYPE DESIGNATOR AND LOCATION

14-1.25MM BASE

THREAD SIZE AND SERIES/TYPE DESIGNATOR AND LOCATION

5/8-24 UNEF SHIELDING
