SHUGHART CLASS T-AKR FAL36100 SQUARE D FA 100A CIRCUIT BREAKER 5925-00-891-2391

SQUARE D FAL36100 Circuit Breaker (5925-00-891-2391)

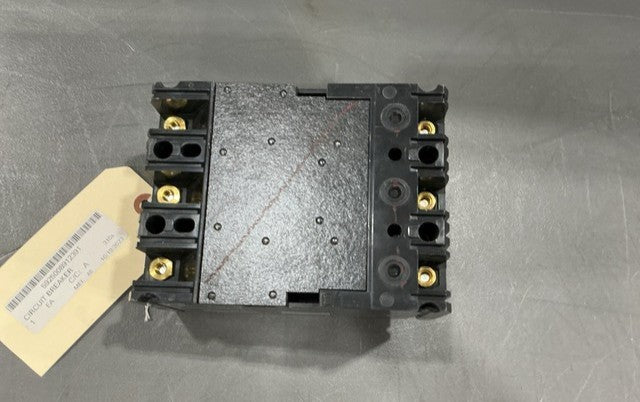

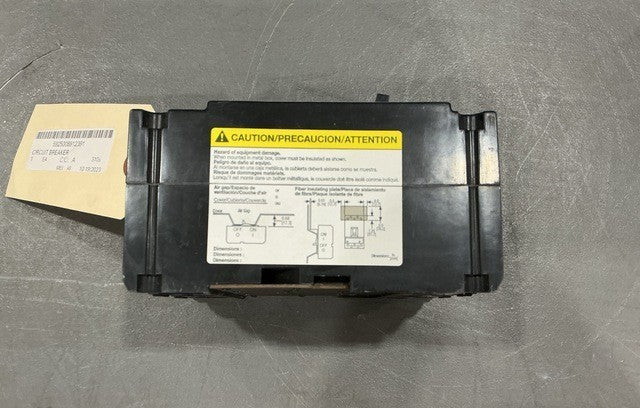

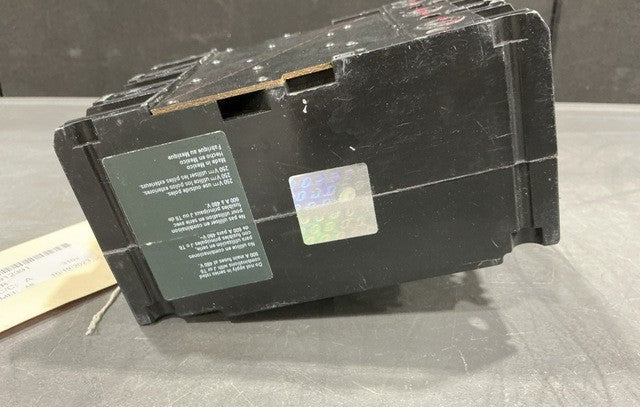

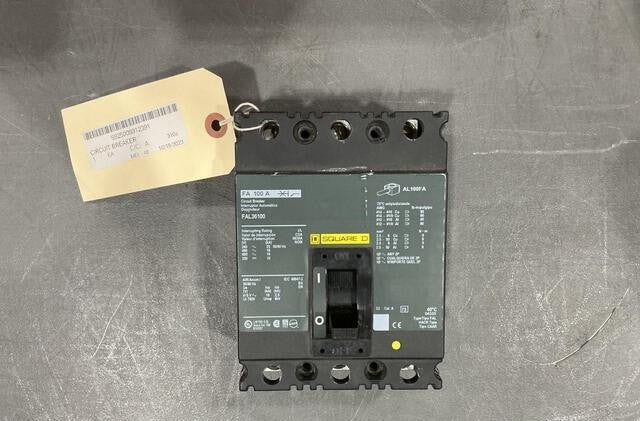

Square D FAL36100 molded case thermal-magnetic circuit breaker, 3-pole, 100A, 600VAC, for the Shughart Class T-AKR.

Part Information

• Manufacturer: Square D (Schneider Electric USA, Inc.)
• Part Number: FAL36100
• NSN: 5925-00-891-2391
• End Item: Shughart Class T-AKR

Specifications

• Pole Quantity: 3
• Maximum Continuous Load Current Rating per Pole: 100.0 A AC
• Operating Voltage Rating per Pole: 600.0 V AC
• Maximum Interrupting Capacity per Pole: 14000.0 A AC
• Circuit Protection Type: Overcurrent
• Trip Release Method: Thermal-Magnetic
• Trip Release Characteristic: Time Delay
• Reset Method: Manual
• Main Contact Tripping Mechanism: Trip Free
• Manual Actuator: Toggle, Qty 1
• Case Material: Plastic

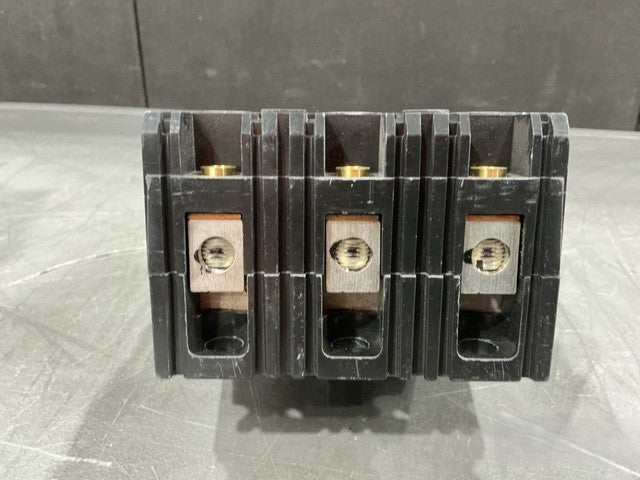

• Terminal Type: Compression, Qty 6
• Frequency: 60 Hz
• Body Dimensions: 6.000 x 4.469 x 3.156 in
