Seawolf Ssn Curtiss-wright Electro-mechanical 4397B61H03 Bolt | NSN 5306-01-505-2305
Seawolf Ssn Curtiss-wright Electro-mechanical 4397B61H03 Bolt | NSN 5306-01-505-2305
Regular price
$564.47 USD
Regular price
Sale price
$564.47 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
NSN 5306-01-505-2305 Specs and cross-references for NSN 5306-01-505-2305 (opens in a new tab) ↗
Curtiss-Wright Electro-Mechanical 4D98023 ITEM 184 Machine Bolt (5306-01-505-2305)

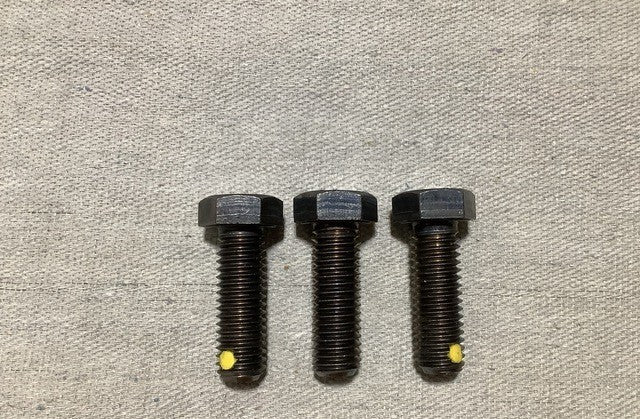

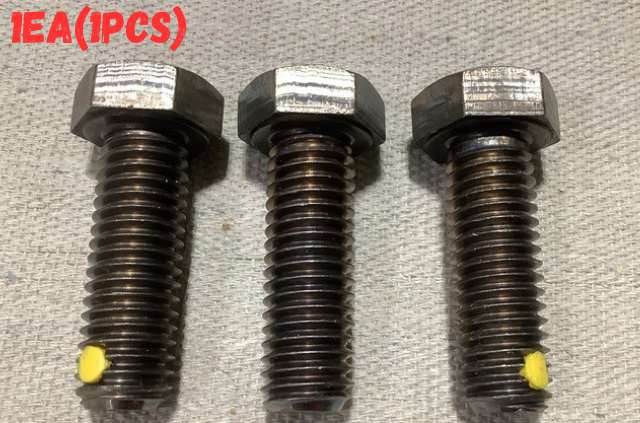

Nickel alloy K-500 machine bolt, 0.500 inch nominal thread diameter, 1.500 inch length, UNC thread, for Seawolf Ssn support equipment.
Part Information
- Manufacturer: Curtiss-Wright Electro-Mechanical
- Part Number: 4D98023 ITEM 184
- NSN: 5306-01-505-2305
- End Item: Seawolf Ssn
Specifications
- Thread Class: 2A
- Thread Direction: Right-hand
- Thread Length: 1.500 inches nominal
- Fastener Length: 1.500 inches nominal
- Locking Feature: Threads, pellet or strip
- Nominal Thread Diameter: 0.500 inches
- Threads Per Inch: 13
- Material: Nickel Alloy K-500
- Material Spec: QQ-N-286
- Thread Series: UNC
