Seawolf Class Ssn Ship MIL-C-28840/29 Electrical Plug Connector | NSN 5935-01-436-3156
Seawolf Class Ssn Ship MIL-C-28840/29 Electrical Plug Connector | NSN 5935-01-436-3156
Regular price
$183.64 USD
Regular price
Sale price
$183.64 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
NSN 5935-01-436-3156 Specs and cross-references for NSN 5935-01-436-3156 (opens in a new tab) ↗

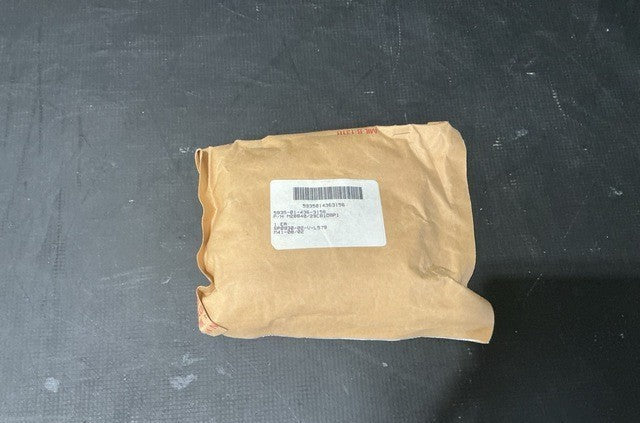

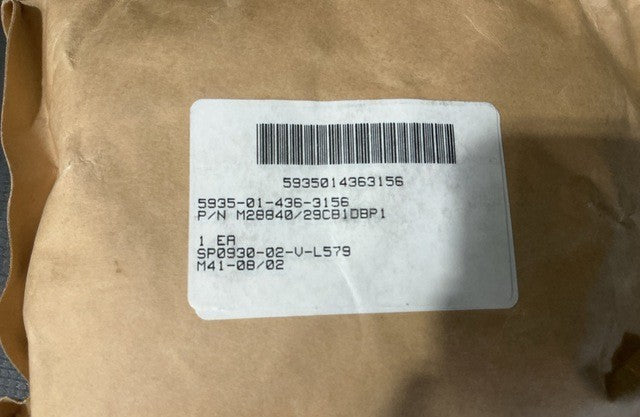

MIL-C-28840/29 Electrical Plug Connector (NSN 5935-01-436-3156)
Electrical plug connector, single mating end, 12 gold contacts, crimp terminals, for the Seawolf Class SSN Ship.
Part Information
- Part Number: MIL-C-28840/29
- NSN: 5935-01-436-3156
- End Item: Seawolf Class SSN Ship
- CAGE Code: 81349
Specifications
- Overall Diameter: 1.312 in nominal
- Body Angle: 135.0 deg
- Mating End Quantity: 1
- Distance from Centerline to Connector End: 6.262 in nominal
- Distance from Centerline to Cable End: 5.682 in nominal
- Terminal Location: Single mating end, single contact grouping, back
- Terminal Type: Single mating end, single contact grouping, crimp
- Included Contact Quantity: 12
- Precious Material: Gold
