SECO Parts and Equipment

SEAWOLF CLASS SSN 118-302994-003 NONIM ELECTRICAL HEATING ELEMENT 4520014377516

SEAWOLF CLASS SSN 118-302994-003 NONIM ELECTRICAL HEATING ELEMENT 4520014377516

$1,069.21 USD
$1,069.21 USD
Sale Sold out
Shipping calculated at checkout.

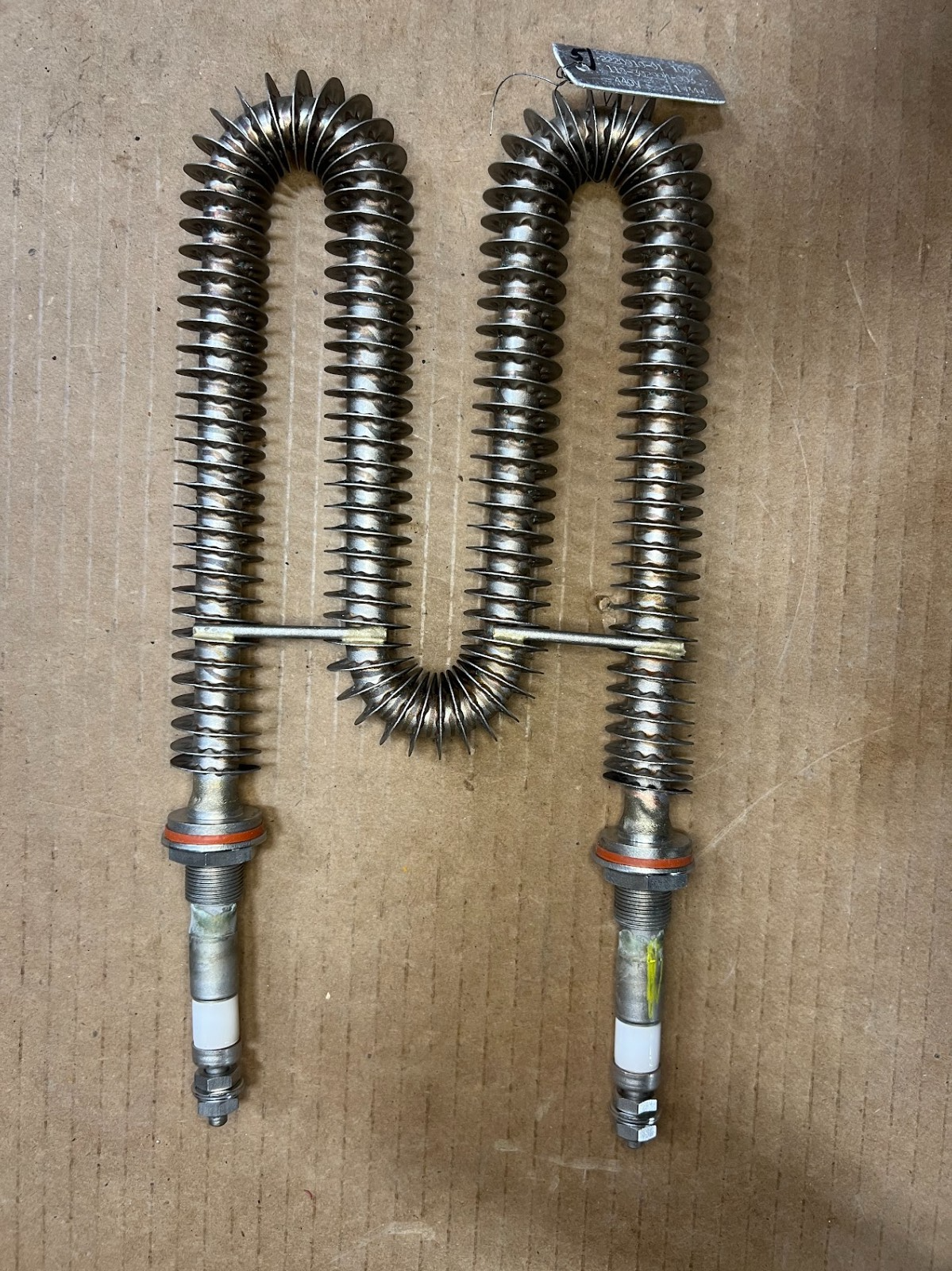

CHROMALOX INC 118-302994-003 Nonimmersion Electrical Heating Element (4520-01-437-7516)

Nickel alloy sheathed nonimmersion electrical heating element, 27 inches nominal length, for the SEAWOLF CLASS SSN.

Part Information

  • Manufacturer: Chromalox Inc
  • Part Number: 118-302994-003
  • NSN: 4520-01-437-7516
  • End Item: SEAWOLF CLASS SSN

Specifications

  • Terminal Quantity: 2
  • Effective Heating Length: 27.000 in nominal
  • Length: 27.000 in nominal
  • Maximum Wattage Rating: 1834.0 W
  • Voltage/Current Type: 440V AC
  • Phase: Three
  • Frequency: 60 Hz
  • Element Radiation Spectrum: Noninfrared
  • Material: Sheath, Nickel Alloy
  • Special Features: Used on 4520-01-436-0346 stationary duct type heater
View full details
