PLS LOADING SYSTEM OSHKOSH 1943960 SQUARE ANGLE BRACKET 5340-01-363-3312
PLS LOADING SYSTEM OSHKOSH 1943960 SQUARE ANGLE BRACKET 5340-01-363-3312
Regular price
$162.09 USD
Regular price
Sale price
$162.09 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
NSN 5340-01-363-3312 Specs and cross-references for NSN 5340-01-363-3312 (opens in a new tab) ↗

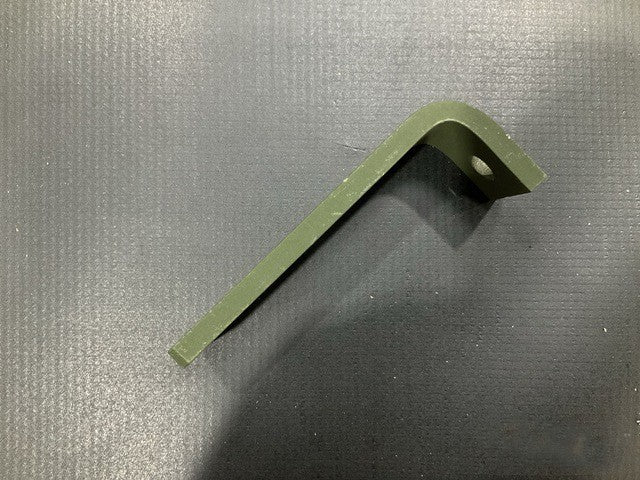

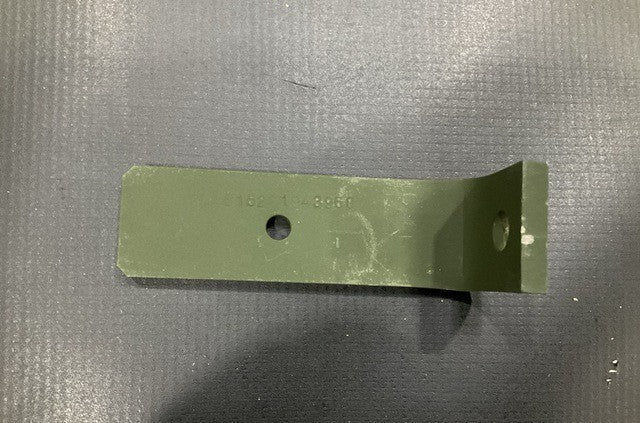

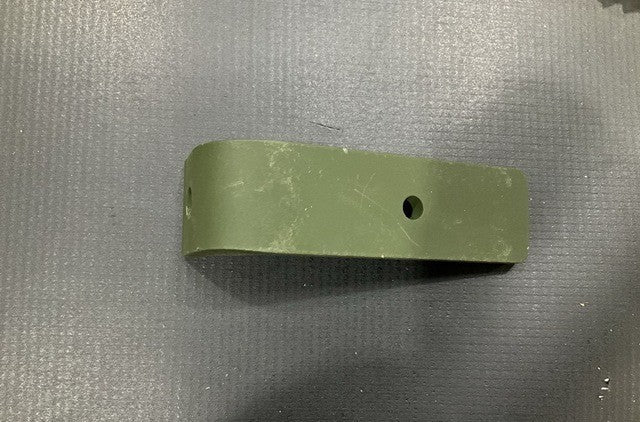

OSHKOSH DEFENSE 1943960 Angle Bracket (5340-01-363-3312)
Angle bracket, plain mounting holes, two legs with differing dimensions, for the PLS Loading System.
Part Information
- Manufacturer: Oshkosh Defense LLC
- Part Number: 1943960
- NSN: 5340-01-363-3312
- End Item: PLS Loading System
- CAGE Code: (Oshkosh Defense LLC)
Specifications
- Mounting Hole Type: Plain
- First Leg Length: 1.500 in nominal
- First Leg Width: 1.250 in nominal
- First Leg Thickness: 0.250 in nominal
- First Leg Hole Diameter: 0.406 in nominal
- First Leg Angle: 0.25 radians nominal
- Second Leg Length: 4.250 in nominal
- Second Leg Width: 1.250 in nominal
- Second Leg End Width: 1.010 in nominal
- Second Leg Thickness: 0.250 in nominal
- Second Leg Hole Diameter: 0.281 in nominal
- Second Leg Chamfer Angle: 45.0 degrees nominal
- Second Leg Relationship to First Leg: Not Identical
