P-19R TRUCK INFINITIFLEX E485764 600V 1EA ELECTRICAL CABLE ASSY 6150-00-217-7198

Oshkosh Defense LLC EE-34864 Electrical Power Cable Assembly (6150-00-217-7198)

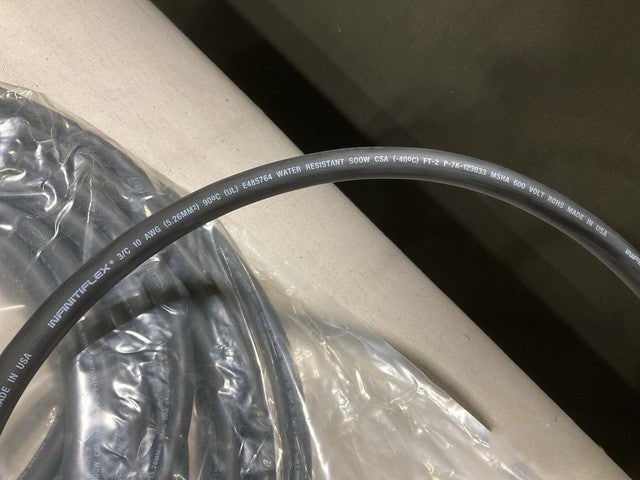

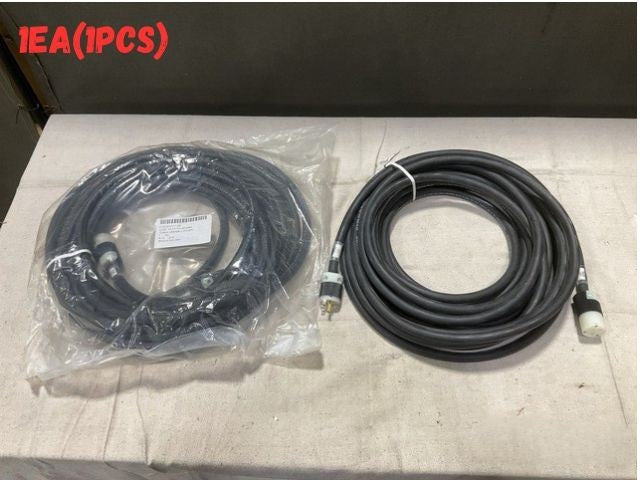

Electrical power cable assembly, 50-foot overall length, 2 stranded copper conductors (AWG 10, 37 strands of AWG 26) with 1 ground wire, both ends terminated with connector receptacles, for the P-19R Truck.

Part Information

• Manufacturer: Oshkosh Defense LLC
• Part Number: EE-34864
• NSN: 6150-00-217-7198
• End Item: P-19R Truck

Specifications

• Overall Length: 50 ft
• Termination: Both ends, all conductors, connector receptacle
• Conductor Quantity: 2
• Accessory Wire: Ground, 1
• Strand Quantity per Conductor: 37
• Conductor Form: Stranded (all conductors)
• Conductor Size: AWG 10 (all conductors)
• Strand AWG Size per Conductor: 26
• Conductor Arrangement: Singles, 2
• Core Conductor Material: Copper
• Material Spec: QQ-W-343, Soft
