Nimitz CVN Parker 1H2H0A00273903 Line Actuating Cylinder ASSY | NSN 3040-01-425-1017

PARKER HANNIFIN 1.50F2HKTVS14A1.625 Linear Actuating Cylinder Assembly (NSN 3040-01-425-1017)

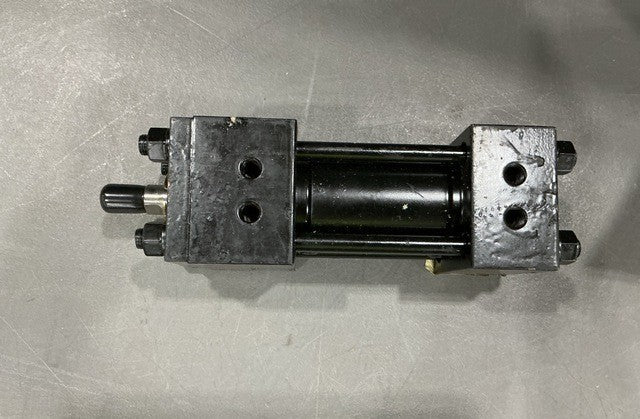

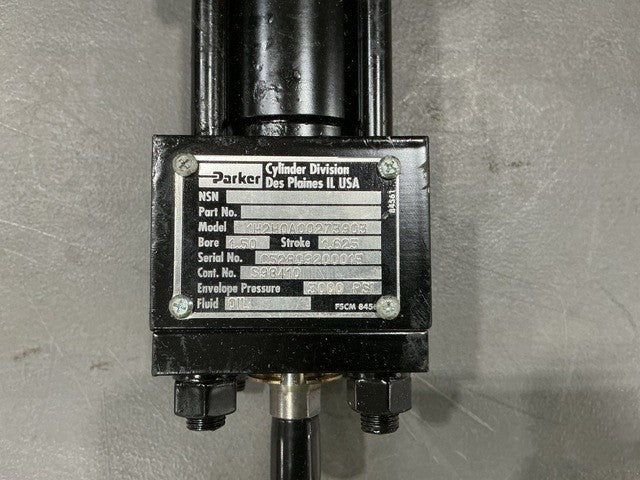

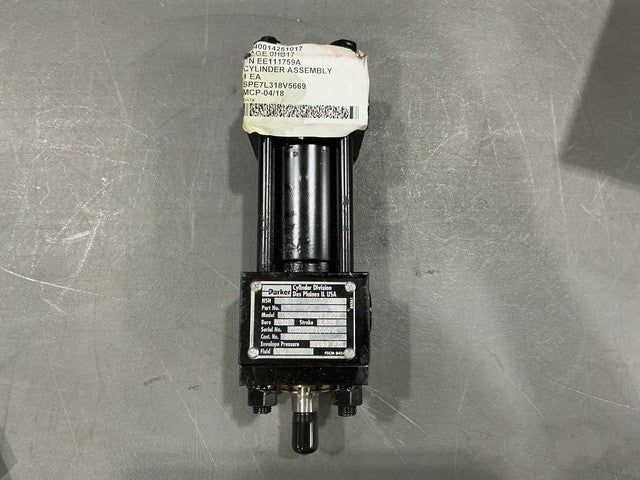

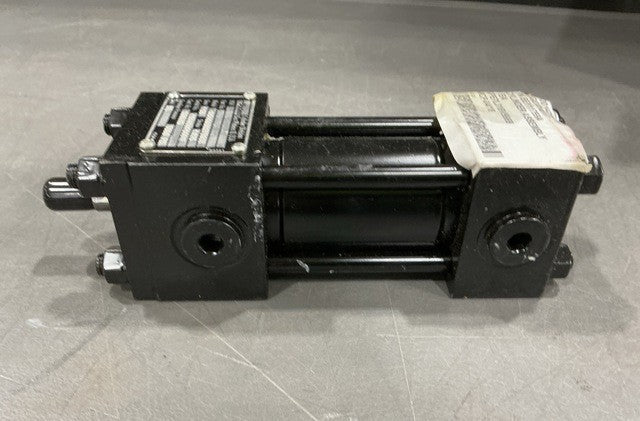

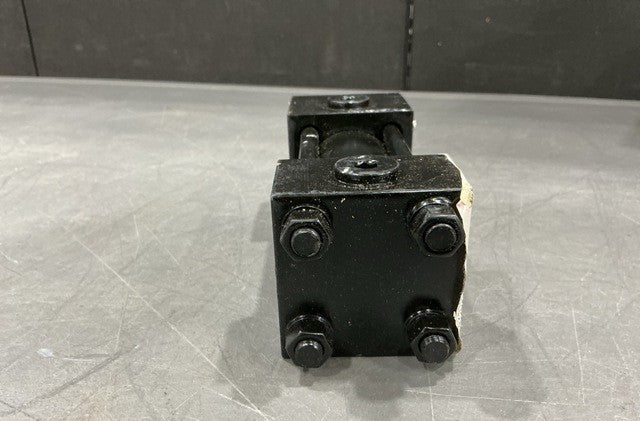

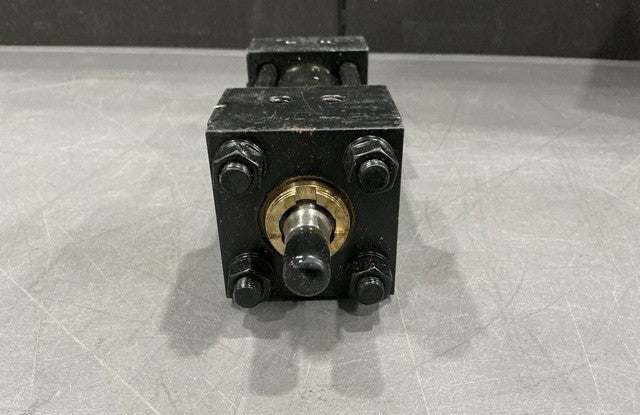

Steel hydraulic linear actuating cylinder assembly, single acting, single cylinder, side tapped mounting, for the NIMITZ CLASS CVN.

Part Information

• Manufacturer: Parker Hannifin Corporation
• Part Number: 1.50F2HKTVS14A1.625
• NSN: 3040-01-425-1017
• End Item: NIMITZ CLASS CVN

Specifications

• Bore Diameter: 1.500 in nominal
• First End Outside Diameter: 0.625 in nominal
• First End External Thread Length: 0.750 in nominal
• Mounting Provision: Threaded mounting holes
• Mounting Facility Thread: UNC, 0.375 in nominal, 16 threads/in, right-hand
• First Piston Rod End Thread: UNF, 0.438 in nominal, 20 threads/in, Class 1A
• Port Thread: UNF, 0.875 in nominal, 14 threads/in, Class 1B
• Integral Valve Operation: Hydraulic
• Body Material: Steel
• Special Features: Side tapped mounting
