Nimitz Class CVN Powerex CM100DY-12HA14 Unitized Semiconductor | NSN 5961-01-380-3738

POWEREX CM100DY-12HA14 Unitized Semiconductor Device (5961-01-380-3738)

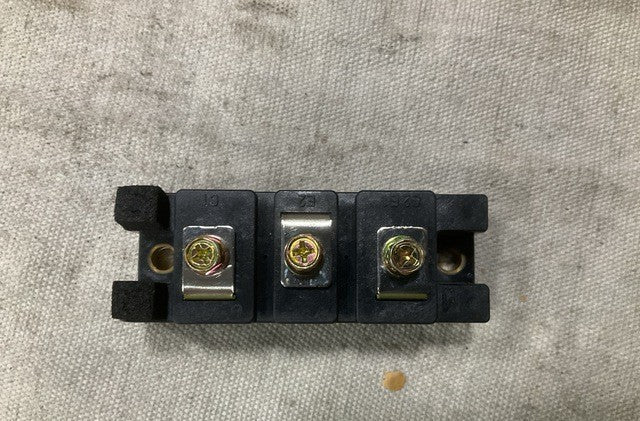

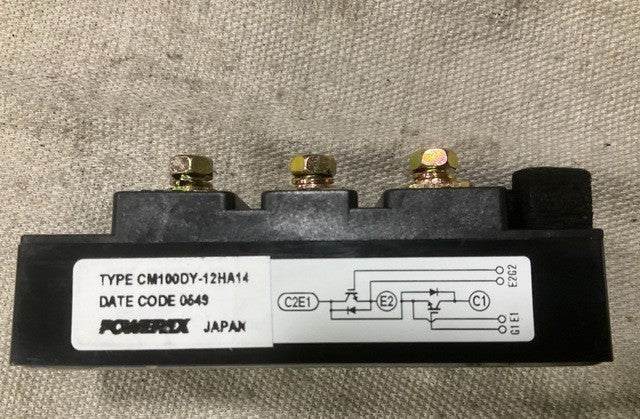

Powerex CM100DY-12HA14 unitized semiconductor device, silicon, for switching, used aboard Nimitz Class CVN.

Part Information

• Manufacturer: Powerex, Inc.
• Part Number: CM100DY-12HA14
• NSN: 5961-01-380-3738
• End Item: Nimitz Class CVN

Specifications

• Overall Length: 3.700 in (nominal)
• Overall Height: 1.220 in (max)
• Overall Width: 1.340 in (nominal)
• Overall Width Across Flats: 3.800 in (nominal)
• Function: Switching
• Component Name and Quantity: Diode (2), Transistor (2)
• Semiconductor Material: Silicon
• Voltage Rating: 600.0V (max, collector-to-emitter, base short-circuited to emitter)
• Current Rating: 100.00A (max, collector current RMS)
• Power Rating: 400.0W (max, total device dissipation)
• Mounting Method: Unthreaded hole(s)
• Mounting Facility Quantity: 2
• Terminal Type and Quantity: Screw (3), Tab/Solder Lug (4)
• Enclosure Material: Plastic
