Nimitz Class Cvn Asme B16.11 Pipe Elbow 5000S4823-64496REV3 4730-00-249-3969 USA

5000S4823-64496REV3 Pipe Elbow (NSN 4730-00-249-3969)

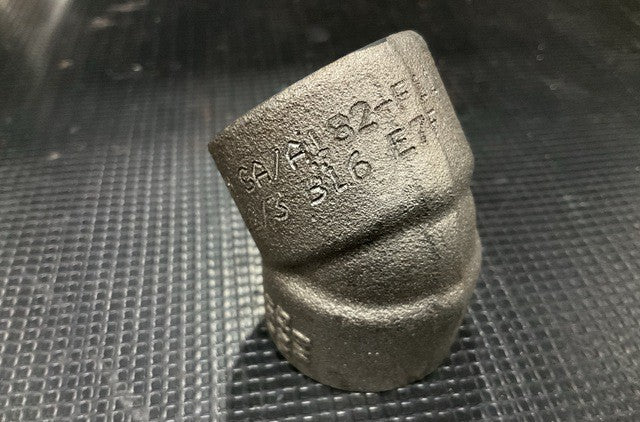

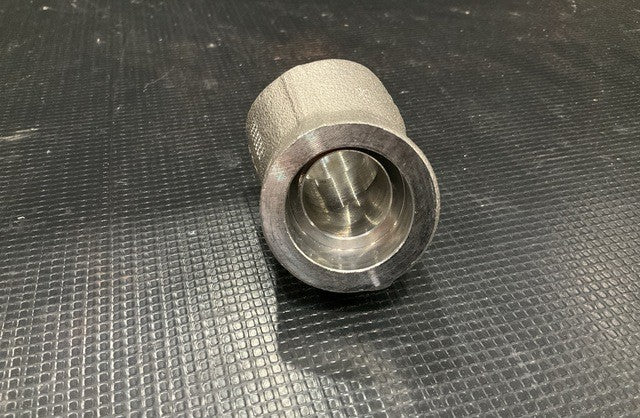

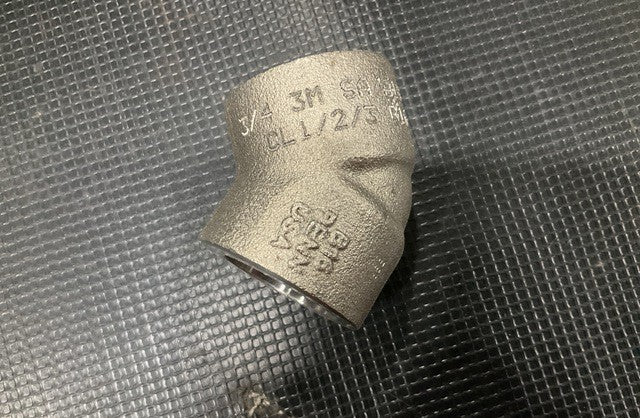

Steel pipe elbow, 45-degree flow angle, unthreaded internal pipe connection ends, Schedule 40 wall thickness, per ASME B16.11.

Part Information

• Design Control Activity: The American Society of Mechanical Engineers
• Part Number: 5000S4823-64496REV3
• NSN: 4730-00-249-3969
• End Item: Nimitz Class CVN

Specifications

• Nominal Pipe Size (All Ends): 0.750 in
• Leg Length (All Ends, Nominal): 1.000 in
• Connection Type: Unthreaded Internal Pipe
• Flow Angle: 45°
• Pipe Wall Thickness: Schedule 40
• Material: Steel, MIL-S-872 Class A
• Operating Pressure: 600 PSI max (first response); 750 PSI max (second response)
• Operating Temp: 454°F (first response); 218°F (second response)
• Media: Steam (first); Water-Oil-Gas (second)
• Referenced Standard: ASME B16.11 (Professional/Industrial Association Standard 80204-B16.11)
