New M9 Ace Upstart Acquisitions 13214E2109 Straight Shaft | NSN 3040-01-222-7586 USA

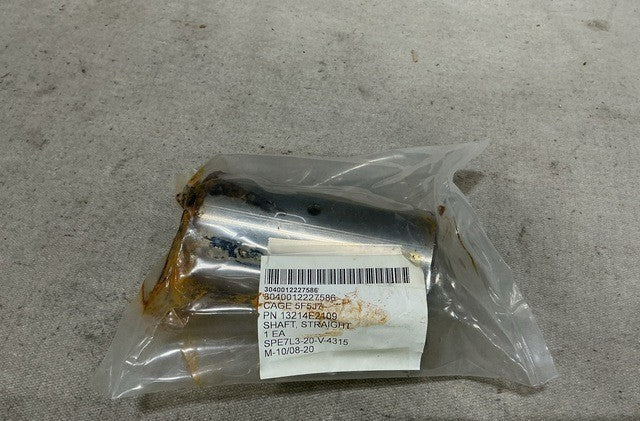

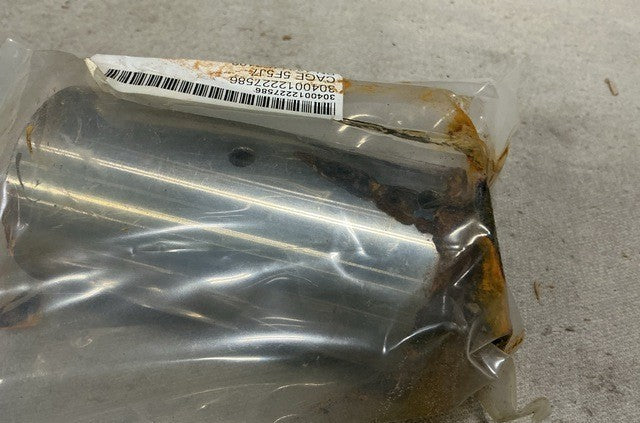

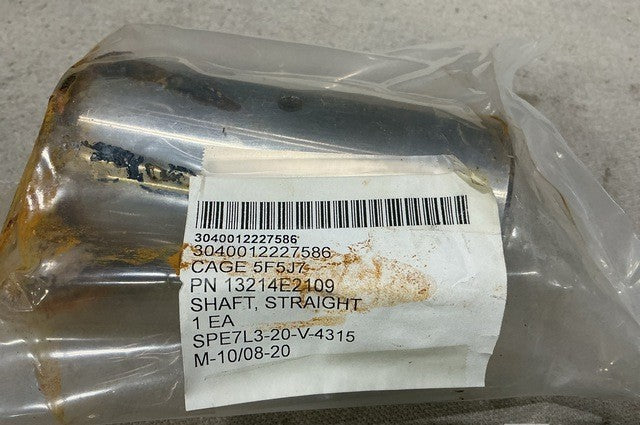

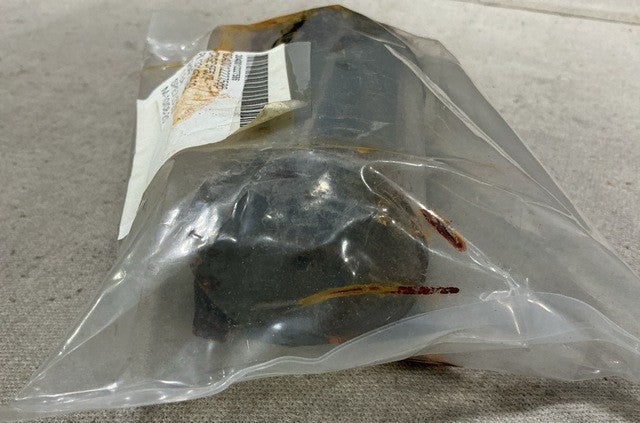

13214E2109 Straight Shaft (NSN 3040-01-222-7586)

Corrosion resisting steel straight shaft, overall length 4.438 in.

Part Information

• Design Control Activity: CECOM LR Center
• Part Number: 13214E2109
• NSN: 3040-01-222-7586
• CAGE Code: 97403

Specifications

• End Similarity: Not identical
• Overall Length: 4.438 in nominal
• First End Diameter: 2.3378 in nominal
• Second End Diameter: 2.3378 in nominal
• Second End Hole Diameter (First Hole): 0.2500 in nominal
• Second End Distance From Hole Center to End: 0.328 in nominal
• Second End Hole Depth: 0.6689 in nominal
• Second End Distance Between Hole Centers: 1.862 in nominal
• Second End Angle Between Holes: 180.0 degrees nominal
• Surface Finish: 16.0 microinches
• Material: Steel, corrosion resisting
• Material Document and Classification: SAE 8620 or SAE 4620 or SAE 4820 (all material responses)
