AR M35A3 M939 N4250B Air Drier Military Truck W/ ABS RCSK16384 | NSN 4440-01-407-5135
AR M35A3 M939 N4250B Air Drier Military Truck W/ ABS RCSK16384 | NSN 4440-01-407-5135
Regular price
$541.63 USD
Regular price
Sale price
$541.63 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
NSN 4440-01-407-5135 Specs and cross-references for NSN 4440-01-407-5135 (opens in a new tab) ↗

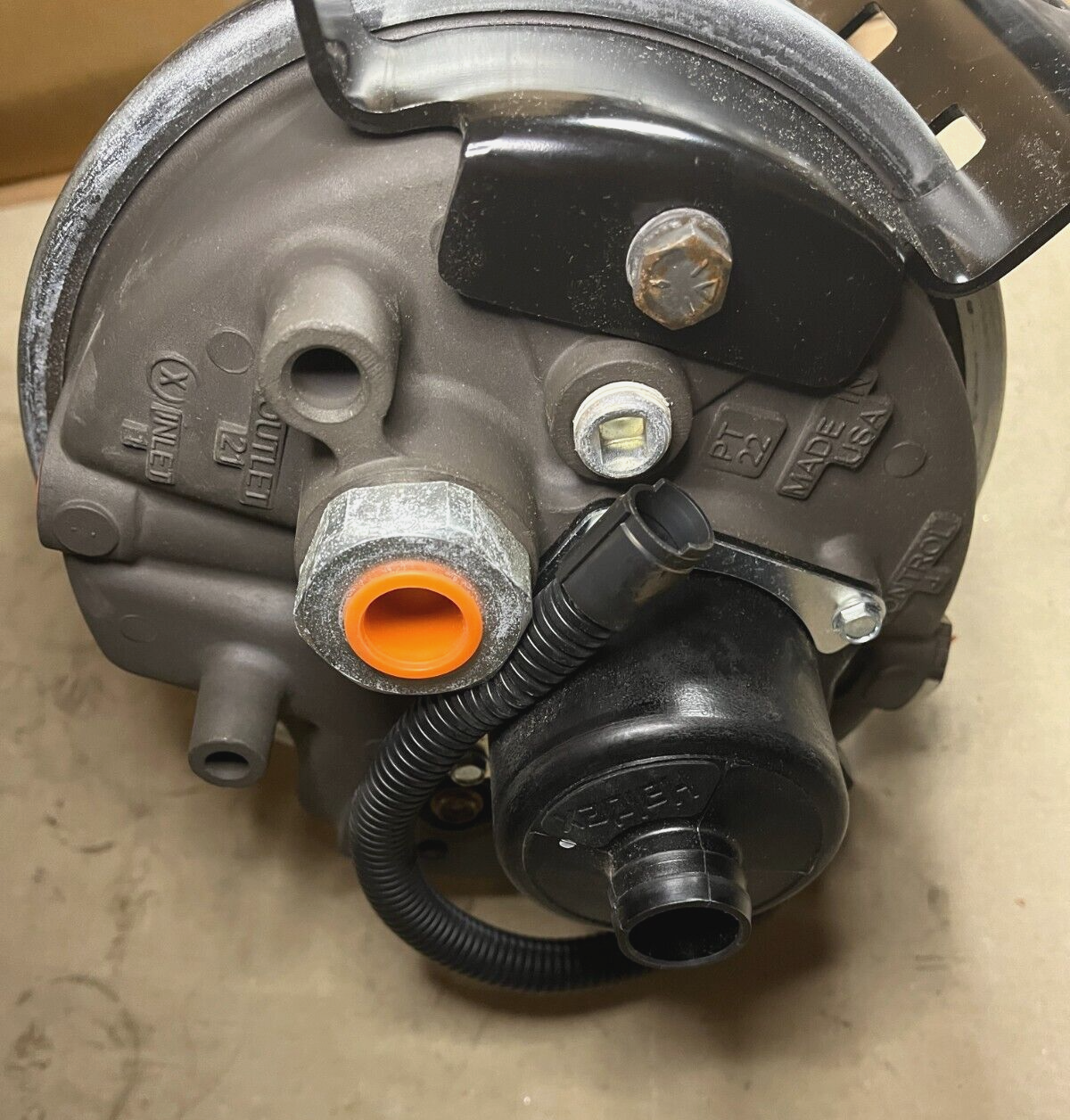

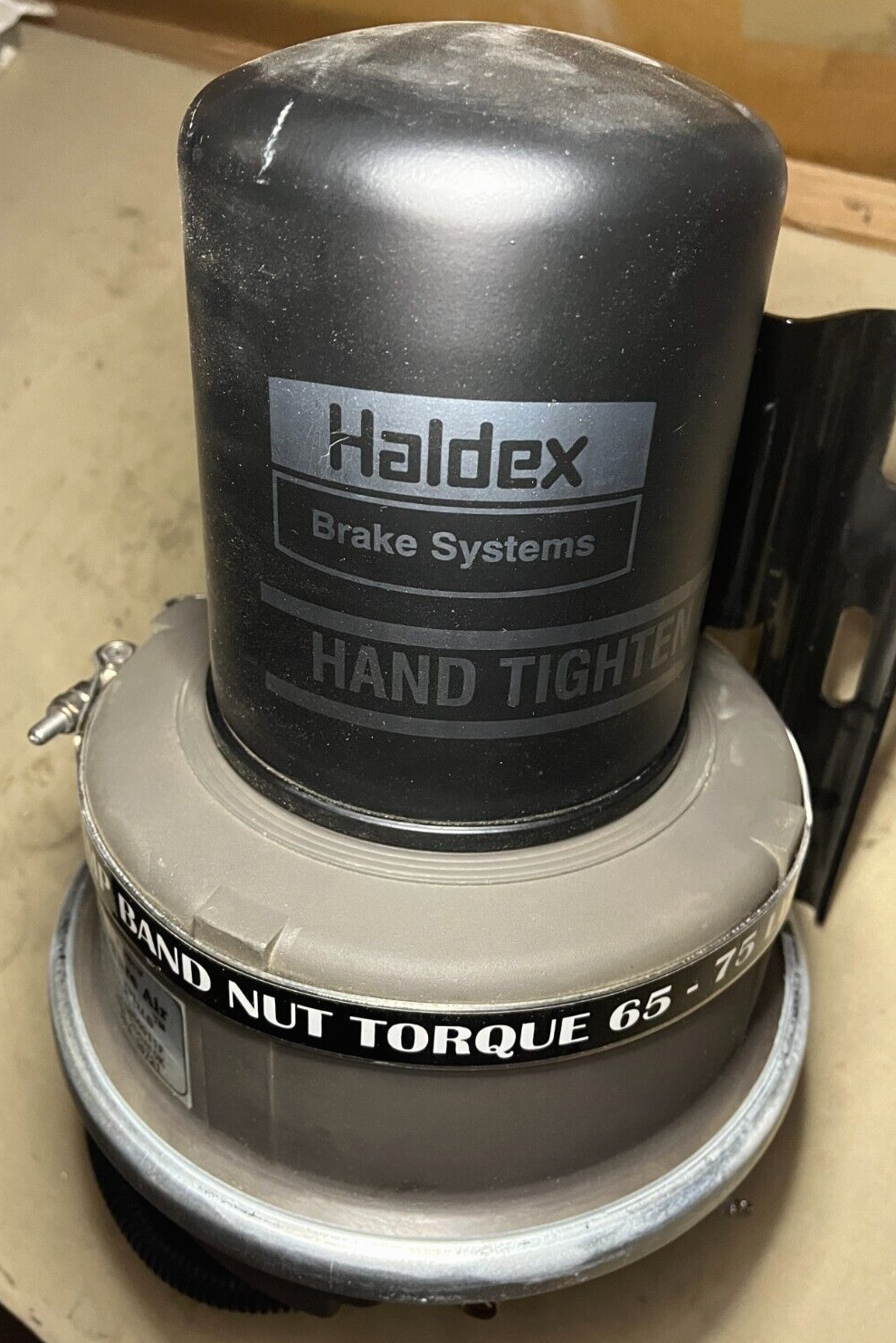

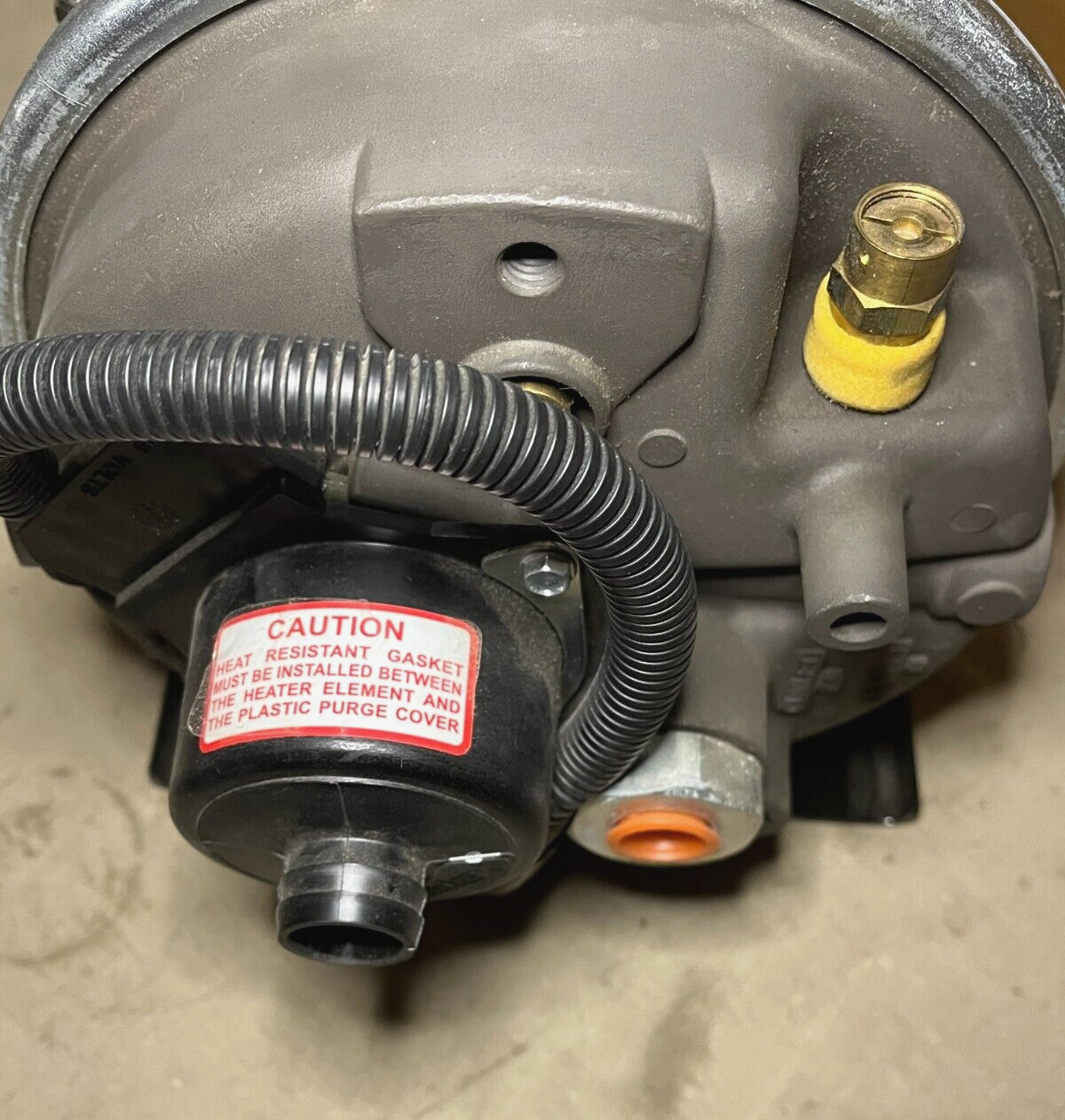

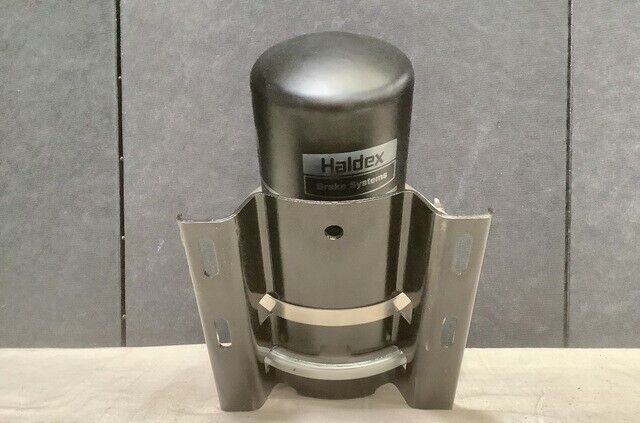

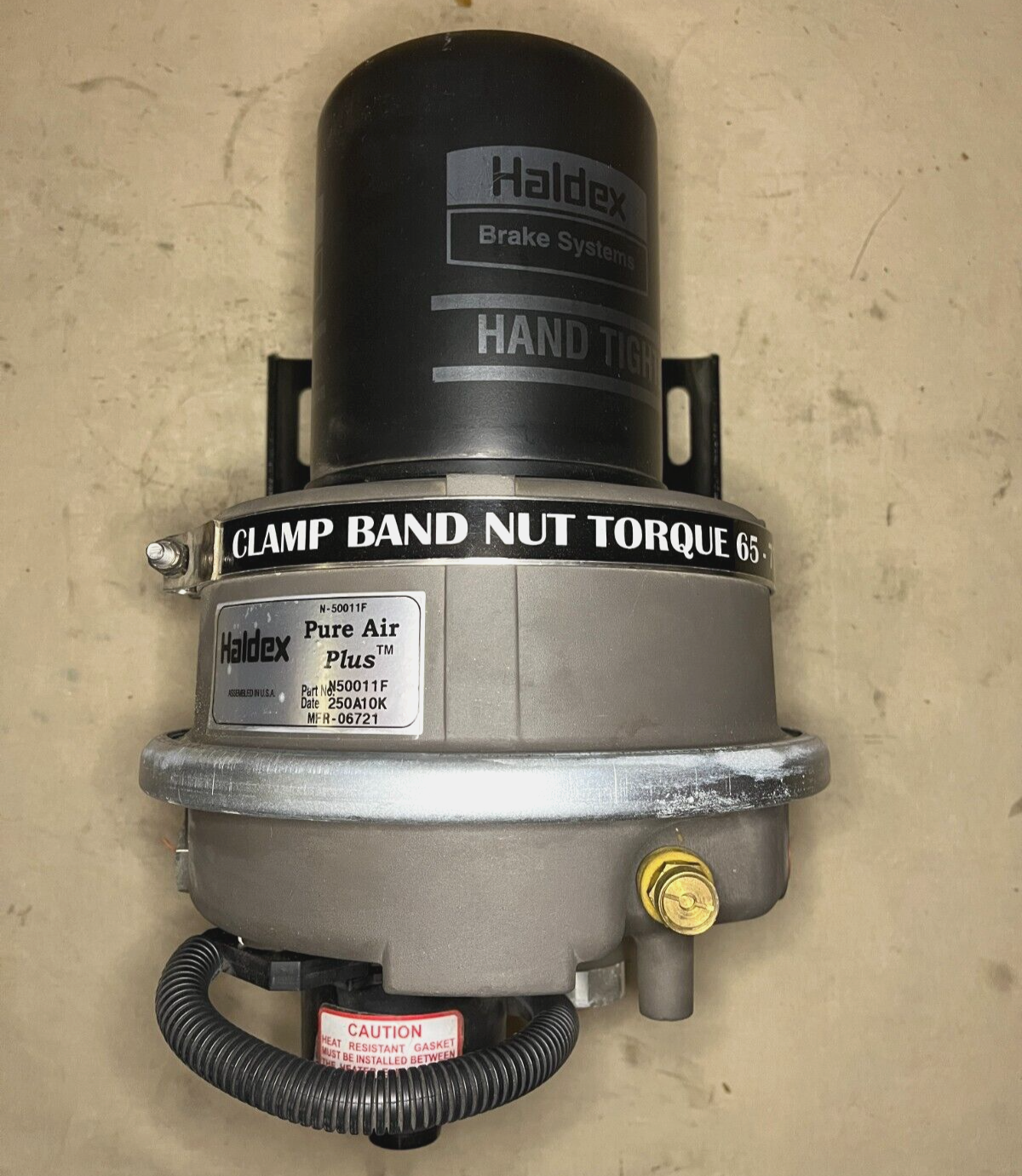

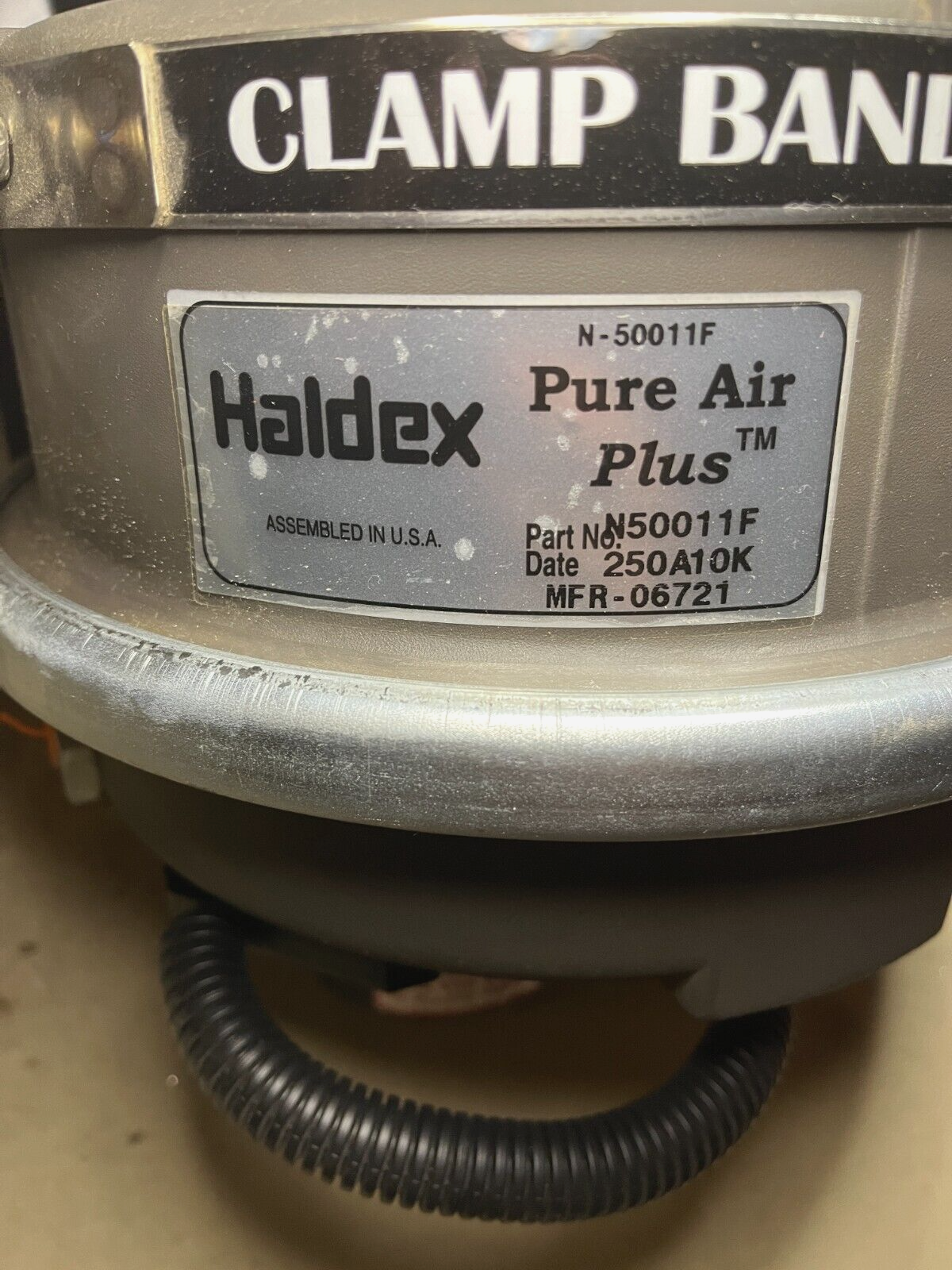

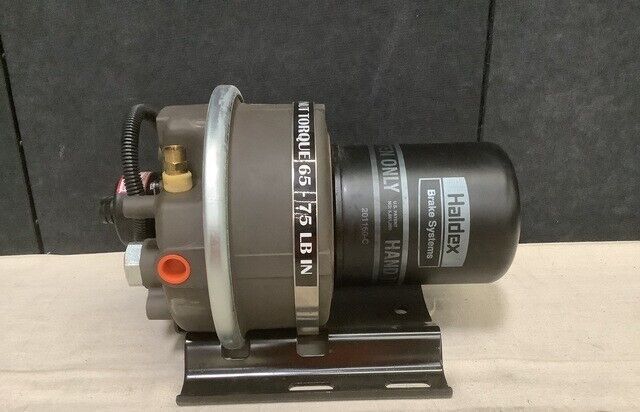

Windward Enterprises WHMBN50011F Air-Gas Desiccant Drier (NSN 4440-01-407-5135)
Air-gas desiccant drier with 24V AC heater, for M35A3, M939 trucks.
Part Information
- Manufacturer: Windward Enterprises, LLC
- Part Number: WHMBN50011F
- NSN: 4440-01-407-5135
- End Item: M35A3, M939
- CAGE Code: 0UKB6
Specifications
- Overall Height: 15.080 in nominal
- Overall Diameter: 9.330 in nominal
- Voltage: 24.0 VAC

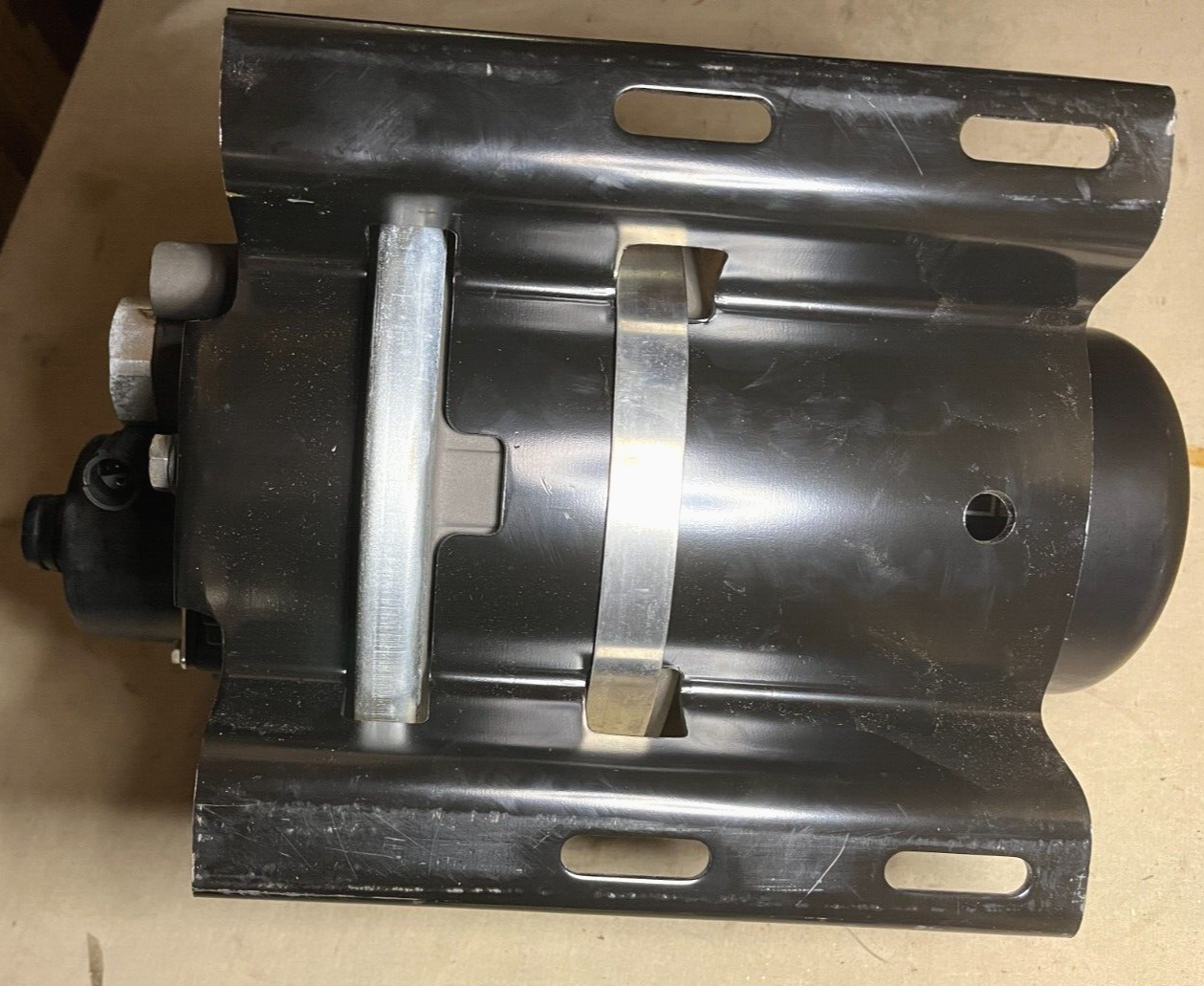

- Special Features: Includes drain valve, relief valve, coalescing filter, desiccant canister, heater, and mounting bracket with 4 slots
- Inlet/Outlet Ports: 0.5-14 NPTF
- Control Port: 0.125-27 NPTF
Fits
This NSN is listed in the U.S. Army repair parts manuals for:
- M35A3 / M44A3 2-1/2 ton series: M35A3, M35A3C, M36A3 (TM 9-2320-386-24P)
Confirm against your vehicle's data plate or technical manual before ordering. Call or email us with your vehicle model and we will check it for you.
