NEW HYDRAFLOW 55046-003 NONMETALLIC HOSE ASSEMBLY 5336354-003 4720-01-205-0449
NEW HYDRAFLOW 55046-003 NONMETALLIC HOSE ASSEMBLY 5336354-003 4720-01-205-0449
Regular price
$510.80 USD
Regular price
Sale price
$510.80 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
NSN 4720-01-205-0449 Specs and cross-references for NSN 4720-01-205-0449 (opens in a new tab) ↗
HYDRAFLOW 21004-3 Nonmetallic Hose Assembly (4720-01-205-0449)

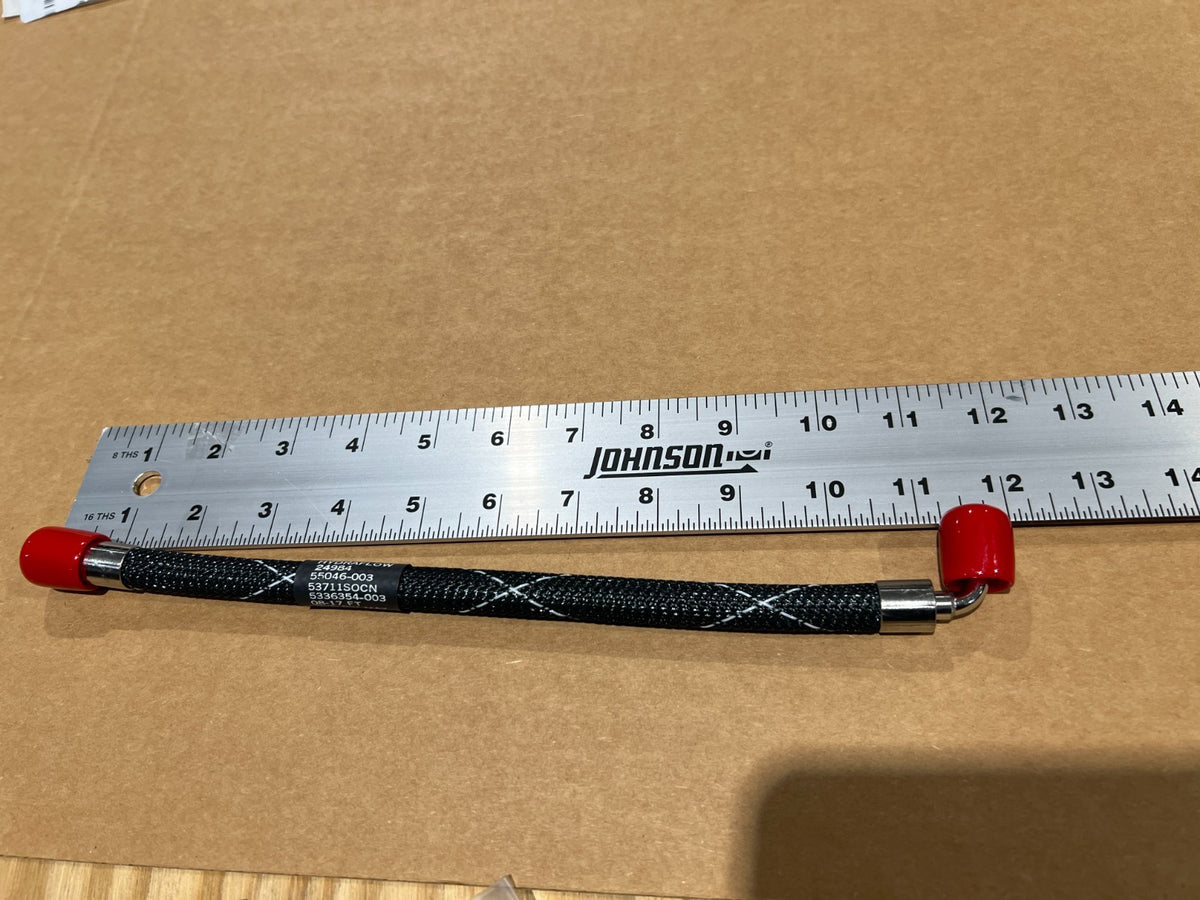

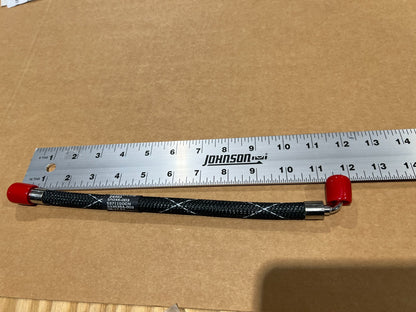

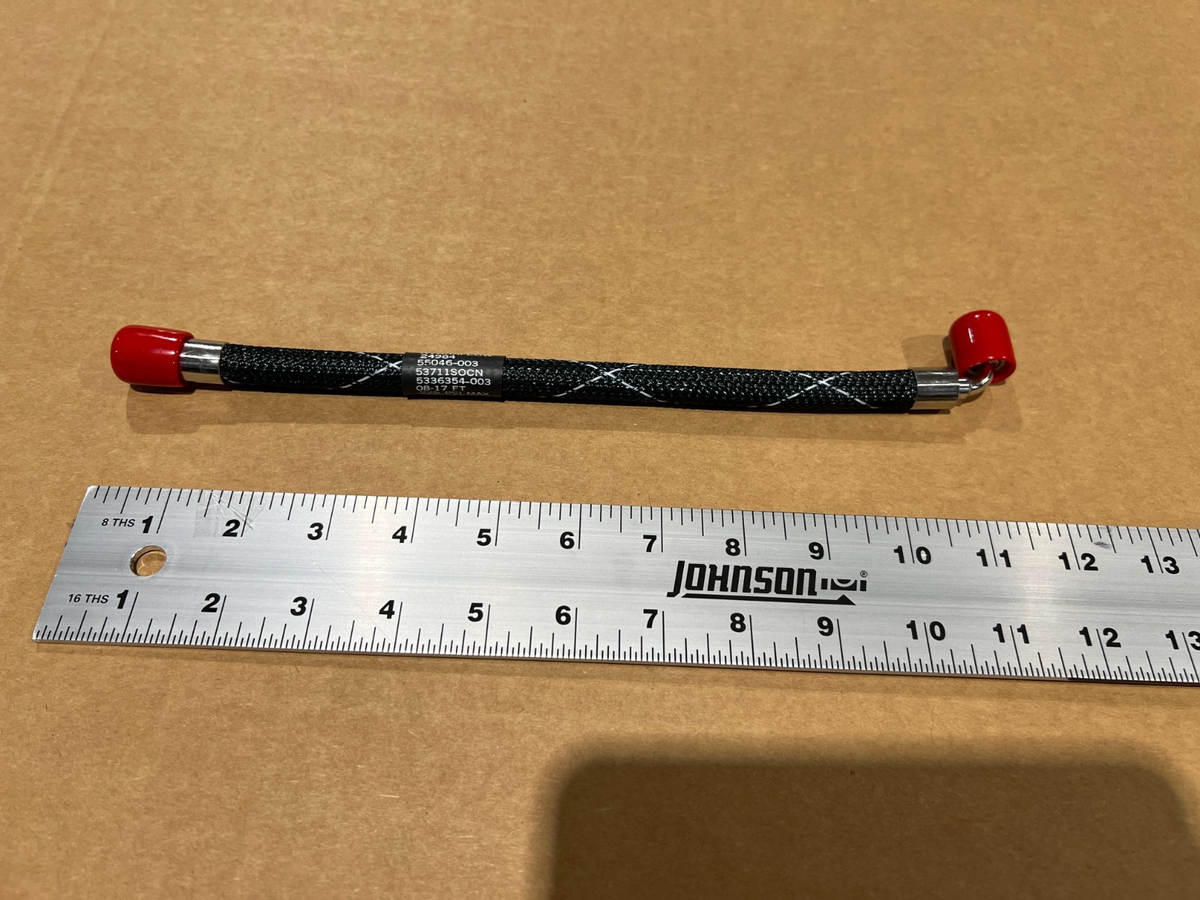

Nonmetallic hose assembly with rigid elbow fittings set at a 90° angle, rated for ethylene glycol media.
Part Information
- Manufacturer: Hydraflow
- Part Number: 21004-3
- NSN: 4720-01-205-0449
Specifications
- Outside Diameter: 0.600 in nominal
- Exterior Color: Black
- Angle Between Rigid Elbow Fittings: 90.0°
- Working Length: 11.000 in min / 11.500 in max
- Temperature Rating: -40.0°F to 160.0°F
- Operating Pressure: 225 PSI max
- Burst Test Pressure: 900 PSI
- Hydrostatic Test Pressure: 450 PSI
- Media: Ethylene Glycol
