New Fuel Pump Jeep M151 A2 11640994 m151 Military | NSN 2910-00-176-8869
New Fuel Pump Jeep M151 A2 11640994 m151 Military | NSN 2910-00-176-8869
Regular price
$99.19 USD
Regular price
Sale price
$99.19 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
NSN 2910-00-176-8869 Specs and cross-references for NSN 2910-00-176-8869 (opens in a new tab) ↗

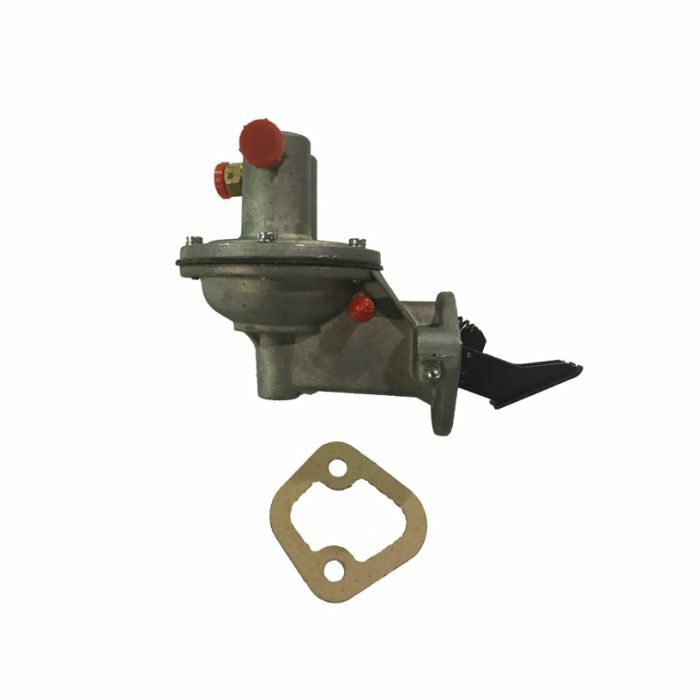

2910001768869 Cam Actuated Fuel Pump (NSN 2910-00-176-8869)
Cam actuated fuel pump, direct cam actuation, SAE preferred mounting, for the M151 A2.
Part Information
- Design Control Activity: E.C.A Établissement Central des
- Part Number: 2910001768869
- NSN: 2910-00-176-8869
- End Item: M151 A2
Specifications
- Mounting Type: SAE Preferred
- Actuation Method: Direct Cam
- Overall Length: 5.625 in
- Overall Height: 4.710 in
- Overall Width: 4.000 in
- Inlet Connection: 1/2-20 UNF-2B Thd Size
- Outlet Connection: 1/2-20 UNF-2B Thd Size
