New Aircraft C/KC-135 Seals & Packing AS3209-014 Cp O-ring | NSN 5331-01-119-2008 USA
New Aircraft C/KC-135 Seals & Packing AS3209-014 Cp O-ring | NSN 5331-01-119-2008 USA
Regular price
$25.00 USD
Regular price
Sale price
$25.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
NSN 5331-01-119-2008 Specs and cross-references for NSN 5331-01-119-2008 (opens in a new tab) ↗

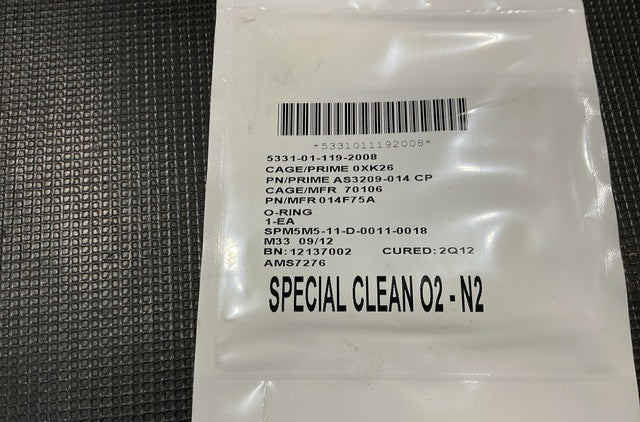

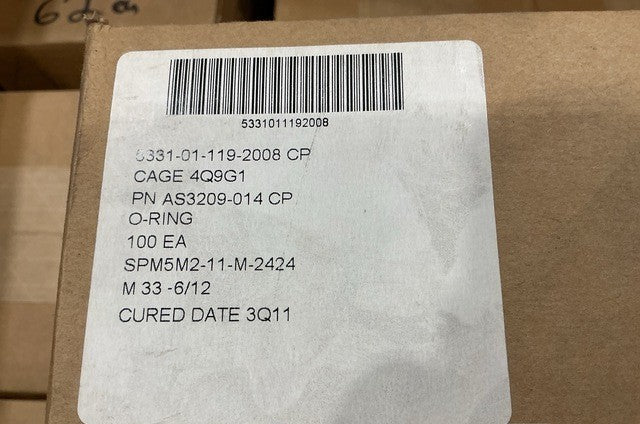

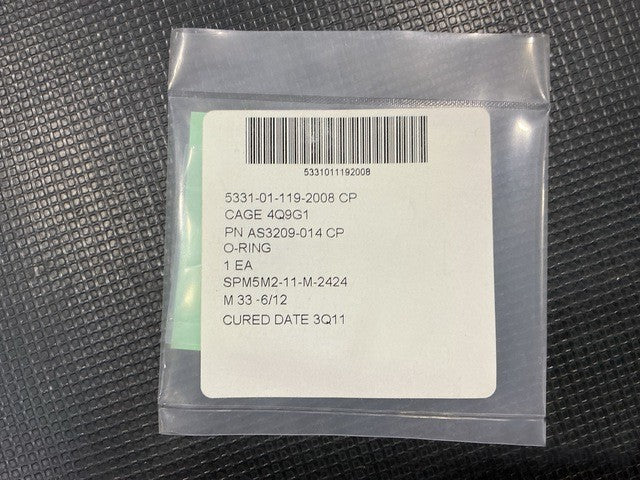

5331PL0937959 O-Ring (NSN 5331-01-119-2008)
Fluorocarbon (FPM) rubber O-ring for the C/KC-135 aircraft.
Part Information
- Design Control Activity: Jednolity Indeks Materialowy
- Part Number: 5331PL0937959
- NSN: 5331-01-119-2008
- End Item: C/KC-135
Specifications
- Material: Rubber Fluorocarbon Class FPM, per MIL-R-83248
- Outside Diameter: 0.629 in nominal
- Center Hole Diameter: 0.484–0.494 in
- Cross-Sectional Height: 0.067–0.073 in
- Hardness: Shore A 70–80
- Elongation: 125% maximum
- Temperature Rating: -15°F to 400°F

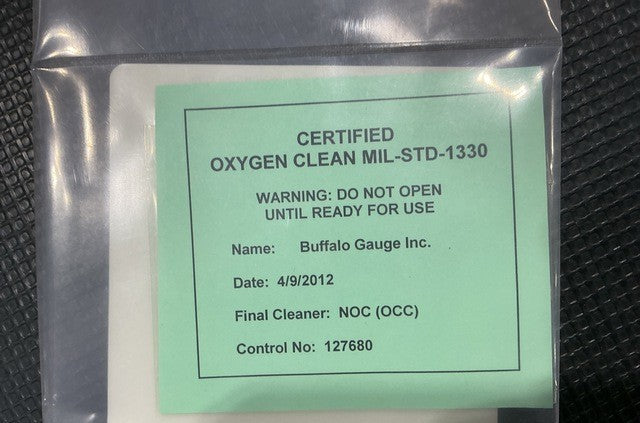

- Cleaning, Packaging, and Marking IAW MIL-STD-1330D
