MTVR MK23 Truck Snap Action 5AMP 36DC 3266496 Circuit Breaker | NSN 5925-01-474-3576

OSHKOSH CORP 3266496 5 Amp Circuit Breaker (NSN 5925-01-474-3576)

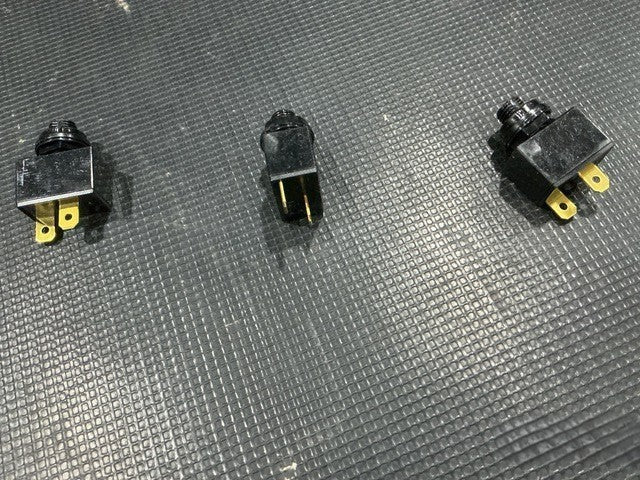

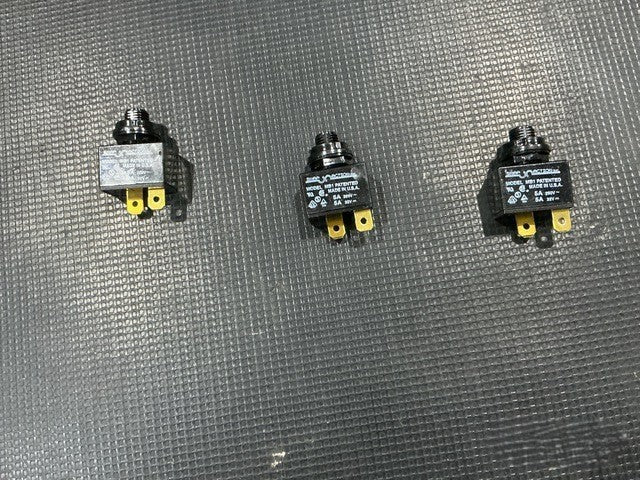

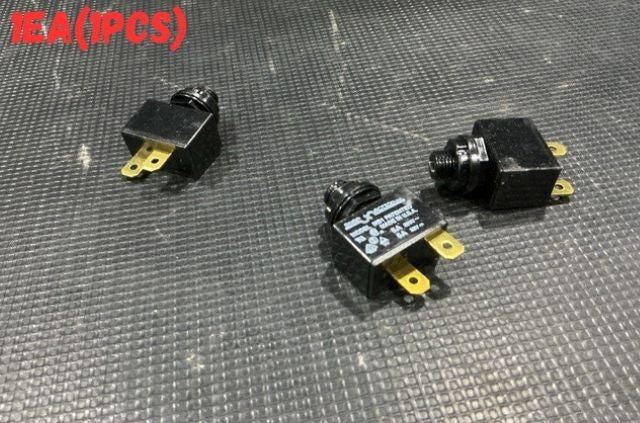

Snap-action 2-pole circuit breaker, thermal trip, for the MTVR MK23 Truck.

Part Information

• Manufacturer: Oshkosh Corp
• Part Number: 3266496
• NSN: 5925-01-474-3576
• End Item: MTVR MK23 Truck

Specifications

• Part Name (Controlling Agency): Circuit Breaker, 5 Amp
• Pole Quantity: 2
• Max Continuous Load Current per Pole: 5.0 A DC
• Operating Voltage per Pole: 36.0 V DC
• Max Interrupting Capacity per Pole: 15.0 A DC
• Circuit Protection Type: Overcurrent
• Trip Release Method: Thermal
• Trip Release Characteristic: Instantaneous
• Reset Method: Automatic
• Internal Trip Release Configuration: Relay Trip
• Body Diameter: 0.820 in nominal
• Mounting Slot Width: 0.820 in nominal
• Mounting Facility: 1 Slot
• Terminal Type: Bus Bar, Qty 1
• Case Material: Plastic
