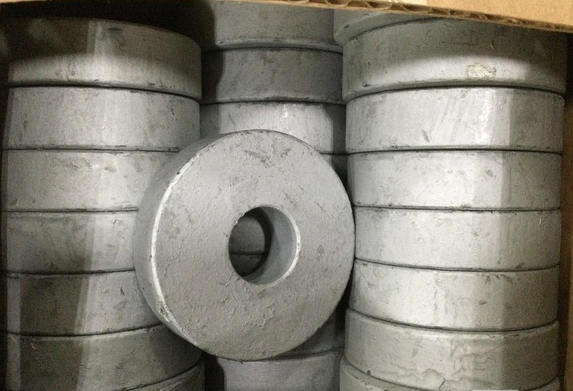

MRV MRAP FLAT WASHER HEAVY DUTY 5310-01-612-9692 12537448
MRV MRAP FLAT WASHER HEAVY DUTY 5310-01-612-9692
| ROSS-SECTIONAL SHAPE STYLE | RECTANGULAR |
| HOLE DIAMETER | 0.814 INCHES MINIMUM AND 0.874 INCHES MAXIMUM |
| PERIPHERAL SHAPE STYLE | ROUND |
| CENTER HOLE SHAPE STYLE | ROUND |
| THICKNESS | 0.595 INCHES MINIMUM AND 0.655 INCHES MAXIMUM |
| OVERALL DIAMETER | 2.44 INCHES MINIMUM AND 2.56 INCHES MAXIMUM |
| III END ITEM IDENTIFICATION | 2355-01-559-0791;2355-01-549-5271 |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | WASHER |
| SPECIAL FEATURES | CENTER HOLE IS CHAMFERED 4 X 0.030 X 45DEG;OPTIONAL MATERIALS LISTED ARE STEEL,ALLOY 4130,4140 SPEC AMS6348,6370,6528,6345 OR 6350 OR STEEL,ALLOY SPEC AMS6349,6382,6529 OR 6395 |
| MATERIAL | STEEL COMP 4130 OR STEEL COMP 4140 OR STEEL COMP 8630 OVERALL |
