MRAP RCV JERRV 10003438 TRANSMISSION TUNNEL UPPER ACCESS PLATE 5340-01-578-3616

General Dynamics Land Systems 10003438 Transmission Tunnel Upper Access Plate (5340-01-578-3616)

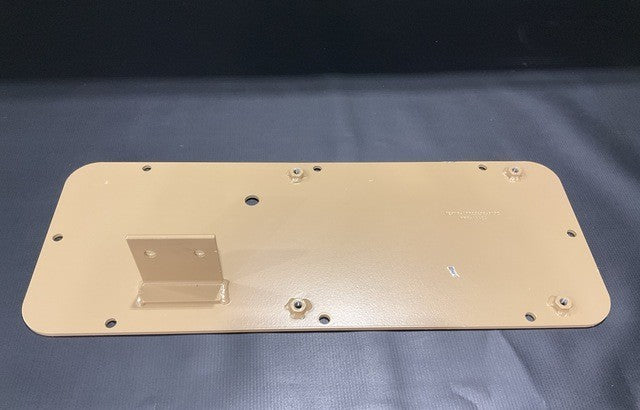

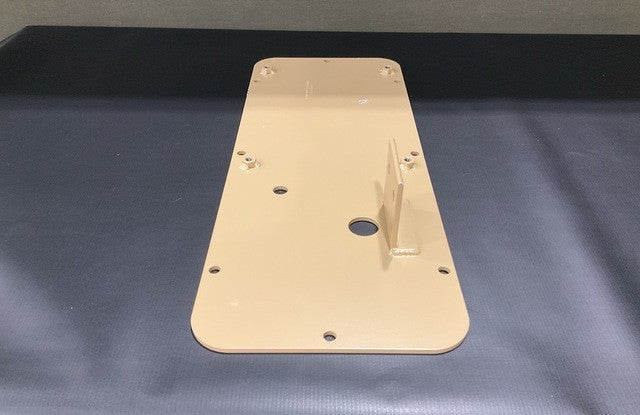

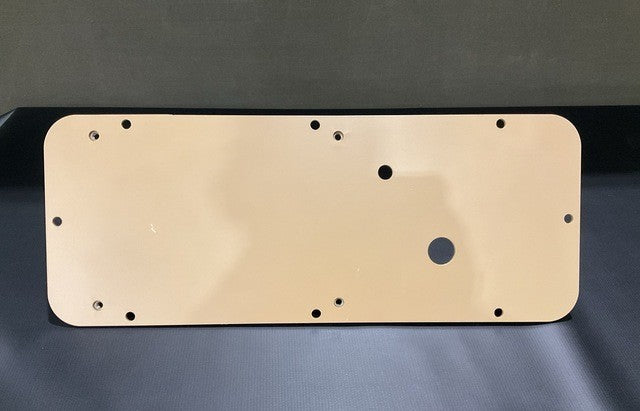

Steel transmission tunnel upper access plate for the MRAP RCV JERRV, rectangular with rounded corners, featuring 4 welded hexagon prevailing torque lock nuts.

Part Information

• Manufacturer: General Dynamics Land Systems
• Part Number: 10003438
• NSN: 5340-01-578-3616
• End Item: MRAP RCV JERRV

Specifications

• Width: 225.0 mm nominal
• Length: 575.0 mm nominal
• Thickness: 4.6 mm nominal
• Corner Radius: 35.0 mm nominal
• Mounting Hole Quantity: 14, unthreaded
• Mounting Hole Diameter (1st): 9.5–10.5 mm
• Mounting Hole Diameter (2nd): 15.7–16.3 mm
• Mounting Hole Diameter (3rd): 29.5–30.5 mm
• Material: Steel
• Special Features: 4 hexagon prevailing torque lock nuts welded, metric 8.0 mm, 1.25 mm thread pitch, Class 9 steel
• Shape: Rectangular with rounded corners
