MRAP MAXXPRO DASH 3566354C2 RADIATOR SUPPORT GUSSET 3566354C3 5340-01-537-4202
MRAP MAXXPRO DASH 3566354C2 RADIATOR SUPPORT GUSSET 3566354C3 5340-01-537-4202
Regular price
$74.76 USD
Regular price
Sale price
$74.76 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
NSN 5340-01-537-4202 Specs and cross-references for NSN 5340-01-537-4202 (opens in a new tab) ↗

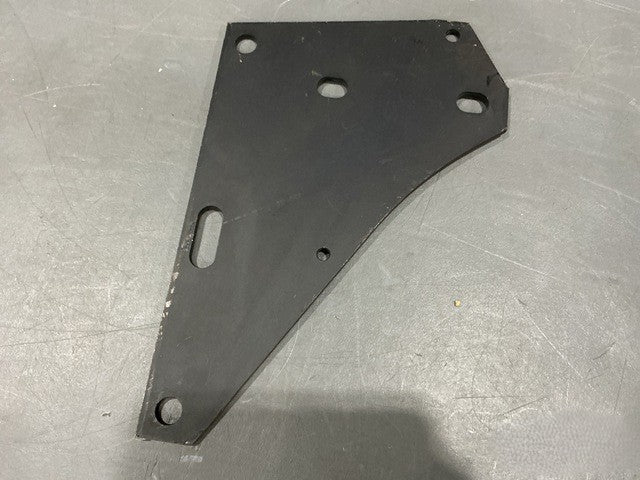

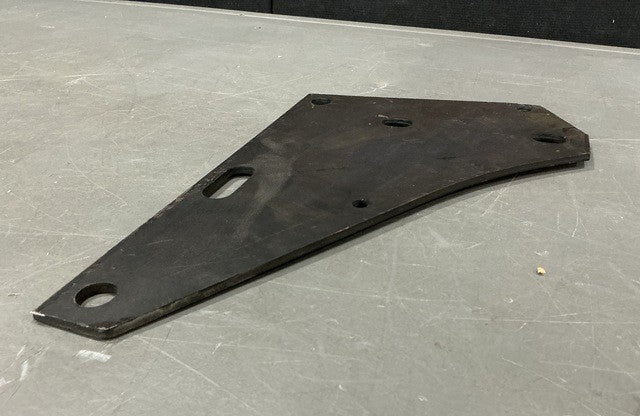

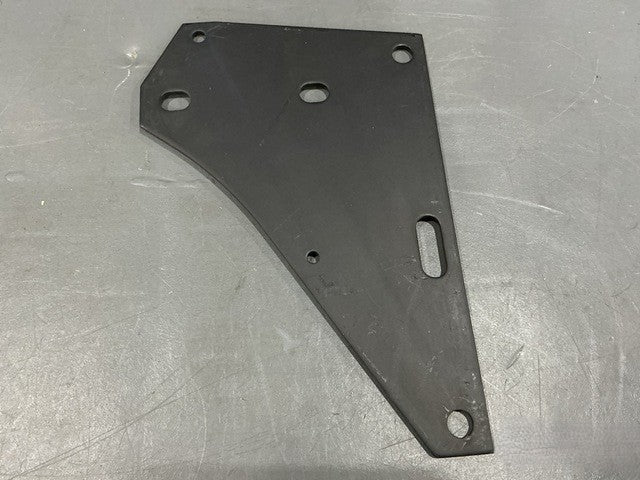

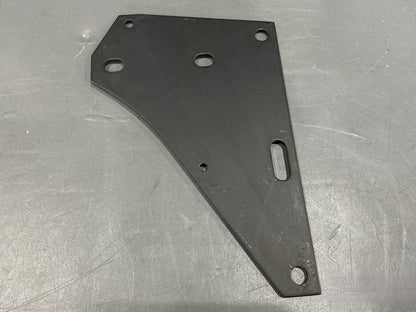

ND DEFENSE LLC 3566354C2 Radiator Support Gusset (5340-01-537-4202)
Steel radiator support gusset, 6.00mm thickness, for the MRAP MAXXPRO Dash.
Part Information
- Manufacturer: ND Defense LLC
- Part Number: 3566354C2
- NSN: 5340-01-537-4202
- End Item: MRAP MAXXPRO Dash
Specifications
- Material: Steel
- Material Thickness: 6.00mm nominal
- First Leg Length: 40.0mm nominal
- Second Leg Length: 263.0mm nominal
- Angle: 300.0 radians nominal
- Hole Quantity: 6
- Mounting Hole Diameter: 17.50mm nominal, plain
- Surface Treatment: Paint
