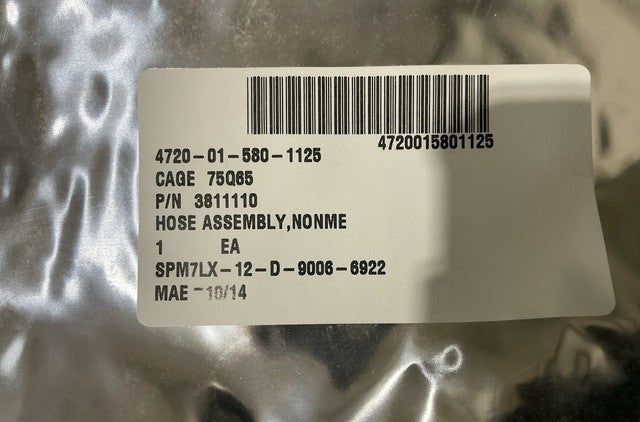

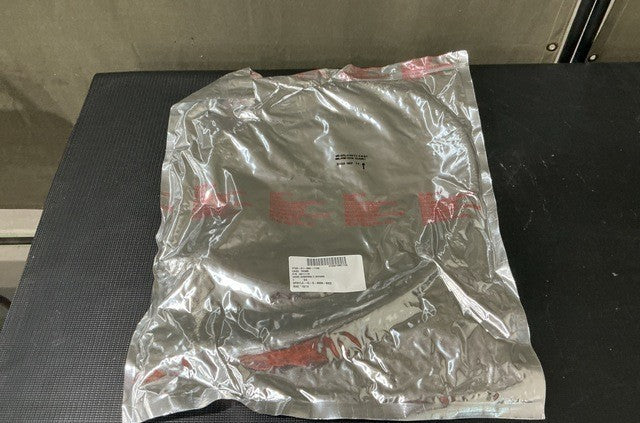

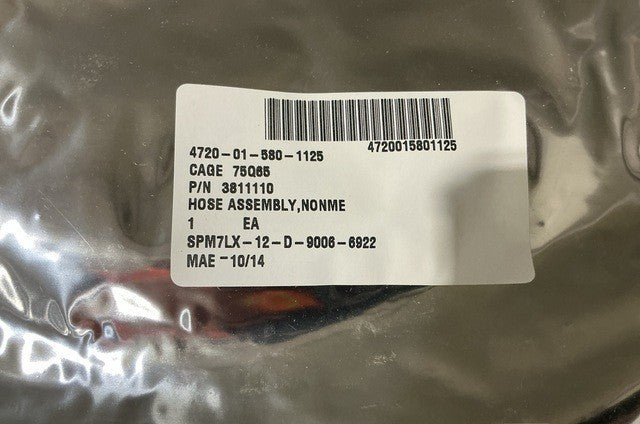

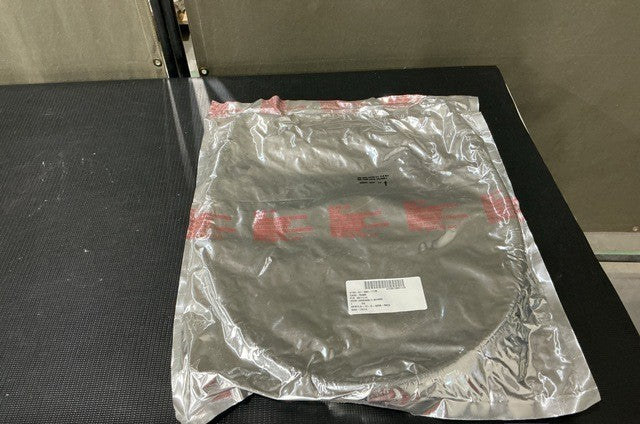

OSHKOSH DEFENSE LLC 3811110 Nonmetallic Hose Assembly (NSN 4720-01-580-1125)

Nonmetallic hose assembly with steel fittings, straight first end and elbow second end, 0.500 in. nominal ID, for the MRAP-Cougar Truck.

Part Information

• Manufacturer: Oshkosh Defense LLC
• Part Number: 3811110
• NSN: 4720-01-580-1125
• End Item: MRAP-Cougar Truck

Specifications

• Inside Diameter: 0.500 in. nominal
• Outside Diameter: 0.800 in. nominal
• Overall Length: 49.25 in. nominal
• Minimum Inside Bending Radius: 3.50 in.
• Thread: Right-hand, 16 threads per inch, nominal size 0.81 in.
• Connection Type: Threaded internal boss, all ends
• End Connection: First end straight; Second end elbow
• End Fitting: Complete fitting, steel, all ends
• Temperature Rating: -40.0°F to 212.0°F
• Operating Pressure: 4250 PSI maximum
• Burst Test Pressure: 17000 PSI
• Exterior Color: Black
• Outer Covering: Abrasion resistant
• Construction: First layer molded nitrile rubber; second layer braided steel wire; outer layer rubber composition
