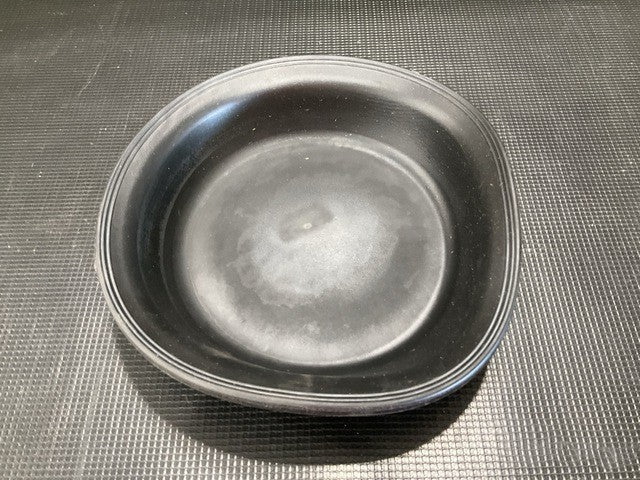

• Brake Chamber Diaphragm 11662241-10 NSN 2530-00-293-4373

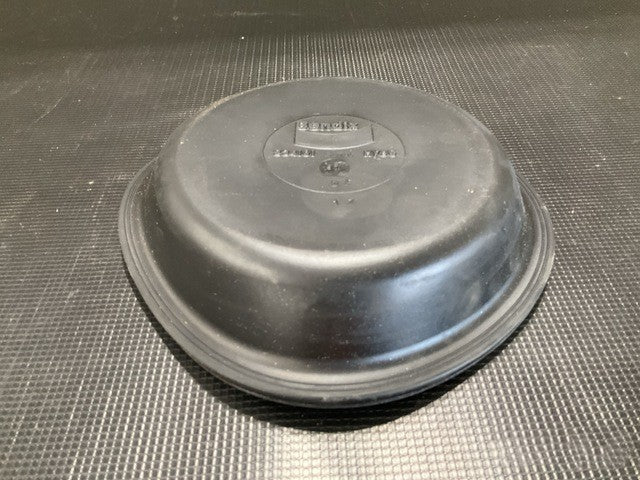

  • Brake Chamber Diaphragm 11662241-10 NSN 2530-00-293-4373 - photo 2

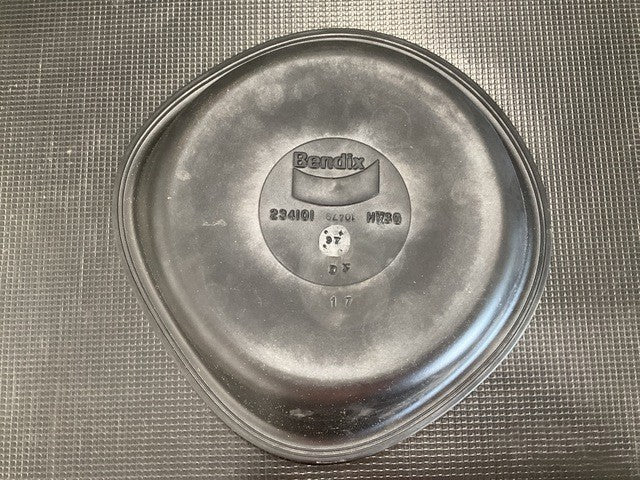

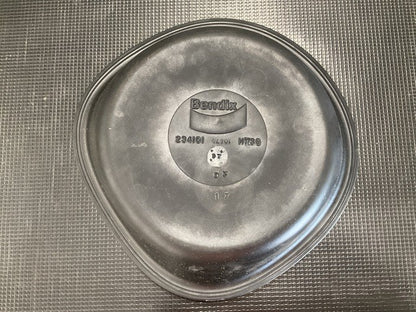

  • Brake Chamber Diaphragm 11662241-10 NSN 2530-00-293-4373 - photo 3

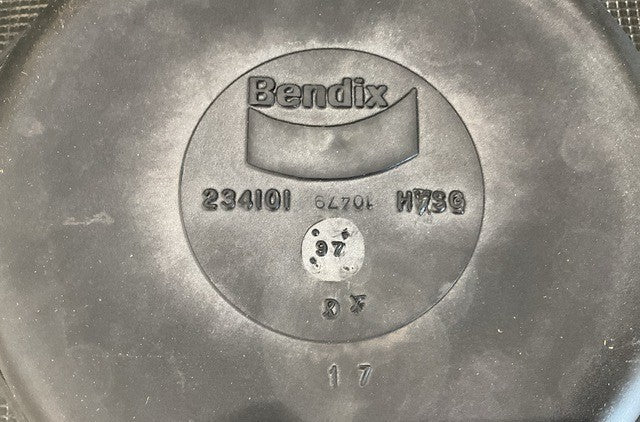

  • Brake Chamber Diaphragm 11662241-10 NSN 2530-00-293-4373 - photo 4
  • Brake Chamber Diaphragm 11662241-10 NSN 2530-00-293-4373 - photo 5
  • Brake Chamber Diaphragm 11662241-10 NSN 2530-00-293-4373 - photo 6
  • Brake Chamber Diaphragm 11662241-10 NSN 2530-00-293-4373 - photo 7
1 7

SECO Parts and Equipment

MK48 LVS BENDIX 11662241-10 BRAKE CHAMBER DIAPHRAGM AD42369D 2530-00-293-4373

MK48 LVS BENDIX 11662241-10 BRAKE CHAMBER DIAPHRAGM AD42369D 2530-00-293-4373

$25.00 USD
$25.00 USD
Sale Sold out
Shipping calculated at checkout.

NSN 2530-00-293-4373 Specs and cross-references ↗

LIFT PARTS MFG CO INC DIV OF ECHLIN AD42369D Brake Chamber Diaphragm (2530-00-293-4373)

Rubber brake chamber diaphragm, beaded tapered sleeve type, fabric insert construction, for the MK48 LVS.

Part Information

  • Manufacturer: Lift Parts Mfg Co Inc Div of Echlin
  • Part Number: AD42369D
  • NSN: 2530-00-293-4373
  • End Item: MK48 LVS
  • CAGE Code: 16662

Specifications

  • Overall Height: 1.477 in (nominal)
  • Material Thickness: 0.115 in min - 0.135 in max
  • Overall Outside Diameter: 7.912 in min - 7.932 in max
  • Mounting Method: Bead
  • Diaphragm Type: Beaded Tapered Sleeve
  • Sleeve Smallest Outside Diameter: 7.187 in (nominal)
  • Construction: Fabric Insert
  • Material: Rubber
