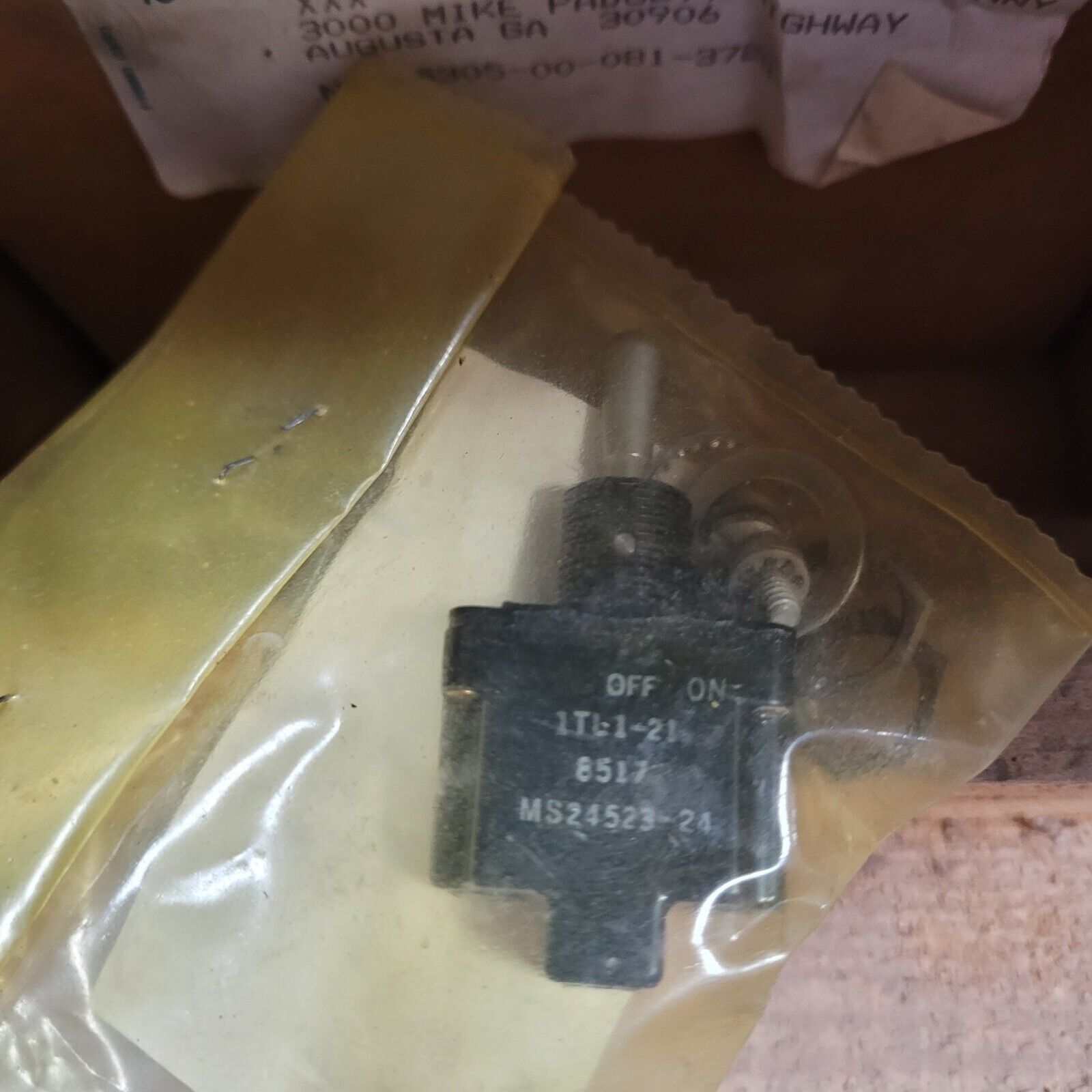

MILITARY STANDARDS MS24523-24 1TL1-21 ROUND TOGGLE SWITCH USAF 5930-00-683-1630

THREAD CLASS

2A

BODY STYLE

BUSHING MOUNT

HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION

VAPORTIGHT

OVERALL LENGTH

1.270 INCHES MAXIMUM

BUSHING LENGTH

0.455 INCHES MINIMUM AND 0.485 INCHES MAXIMUM

BODY LENGTH

1.270 INCHES MAXIMUM

BODY WIDTH

0.635 INCHES MAXIMUM

BODY HEIGHT

0.890 INCHES MINIMUM AND 0.930 INCHES MAXIMUM

ACTUATOR STYLE

ROUND

ACTUATOR DIAMETER

0.237 INCHES MINIMUM AND 0.243 INCHES MAXIMUM

ACTUATOR HEIGHT

0.665 INCHES MINIMUM AND 0.695 INCHES MAXIMUM

ACTUATOR POSITION-ACTION RELATIONSHIP

UP POSITION MAINTAINED AND DOWN POSITION MAINTAINED

MAXIMUM VOLTAGE RATING IN VOLTS

115.0 AC AND 28.0 DC

INCLOSURE TYPE

FULLY INCLOSED

MOUNTING METHOD

THREADED BUSHING

FEATURES PROVIDED

ACTUATOR SEAL

THREAD QUANTITY PER INCH

32

NOMINAL THREAD SIZE

0.469 INCHES

NONPILE-UP CONTACT ARRANGEMENT

1 POLE, DOUBLE THROW, BOTH POSITIONS MAINTAINED SINGLE SWITCH UNIT

CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE

20.000 AMPERES RESISTIVE DC AND 10.000 AMPERES INDUCTIVE DC AND 5.000 AMPERES LAMP DC AND 15.000 AMPERES RESISTIVE AC AND 10.000 AMPERES INDUCTIVE AC AND 3.000 AMPERES LAMP AC

TEST DATA DOCUMENT

81349-MIL-S-3950 SPECIFICATION (INCLUDES ENGINEERING TYPE BULLETINS, BROCHURES,ETC., THAT REFLECT SPECIFICATION TYPE DATA IN SPECIFICATION FORMAT; EXCLUDES COMMERCIAL CATALOGS, INDUSTRY DIRECTORIES, AND SIMILAR TRADE PUBLICATIONS, REFLECTING GENERAL TYPE DATA ON CERTAIN ENVIRONMENTAL AND PERFORMANCE REQUIREMENTS AND TEST CONDITIONS THAT ARE SHOWN AS "TYPICAL", "AVERAGE", "NOMINAL", ETC.).

THREAD SERIES DESIGNATOR

UNS

TERMINAL TYPE AND QUANTITY

2 SCREW
