Military PLS M1074 M1076 1941140 Green ANGLE BRACKET NSN 5340-01-355-2731 OEM New

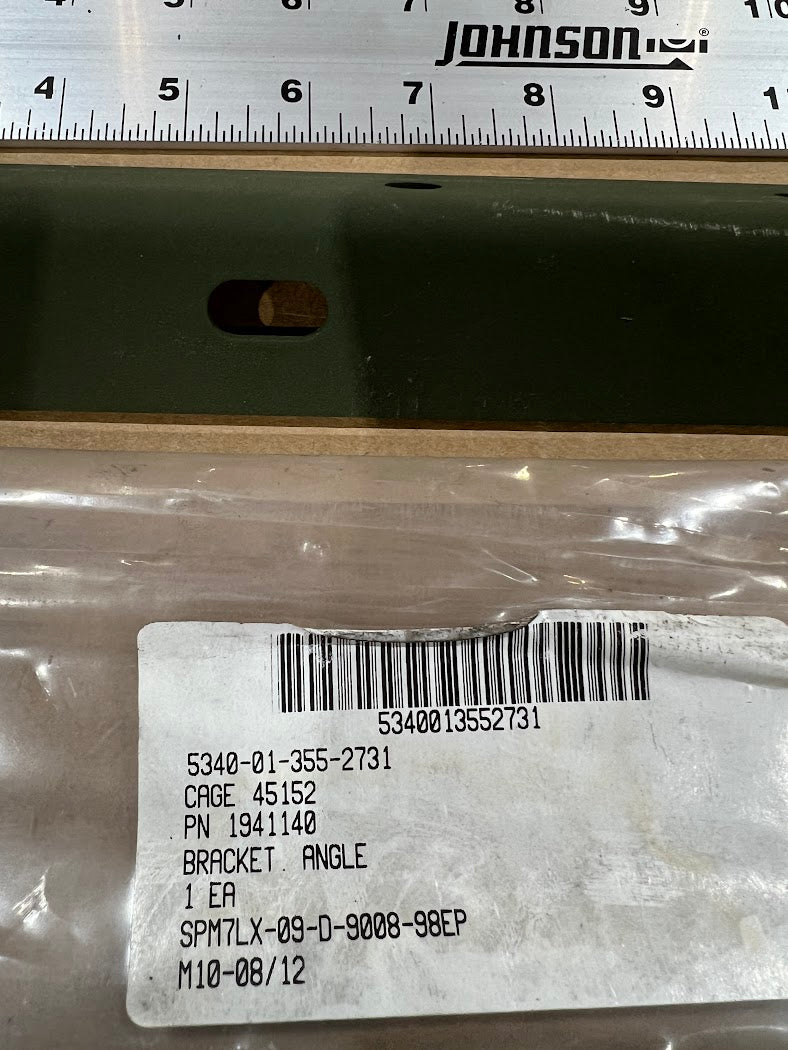

OSHKOSH 1941140 Angle Bracket (NSN 5340-01-355-2731)

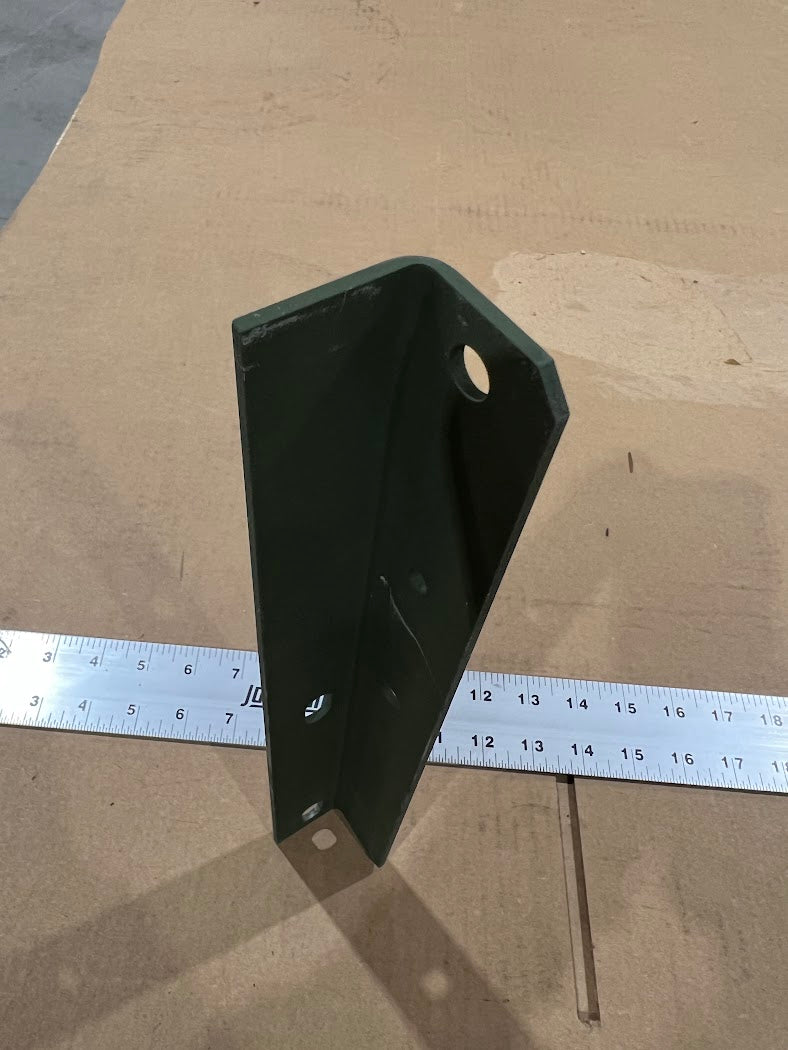

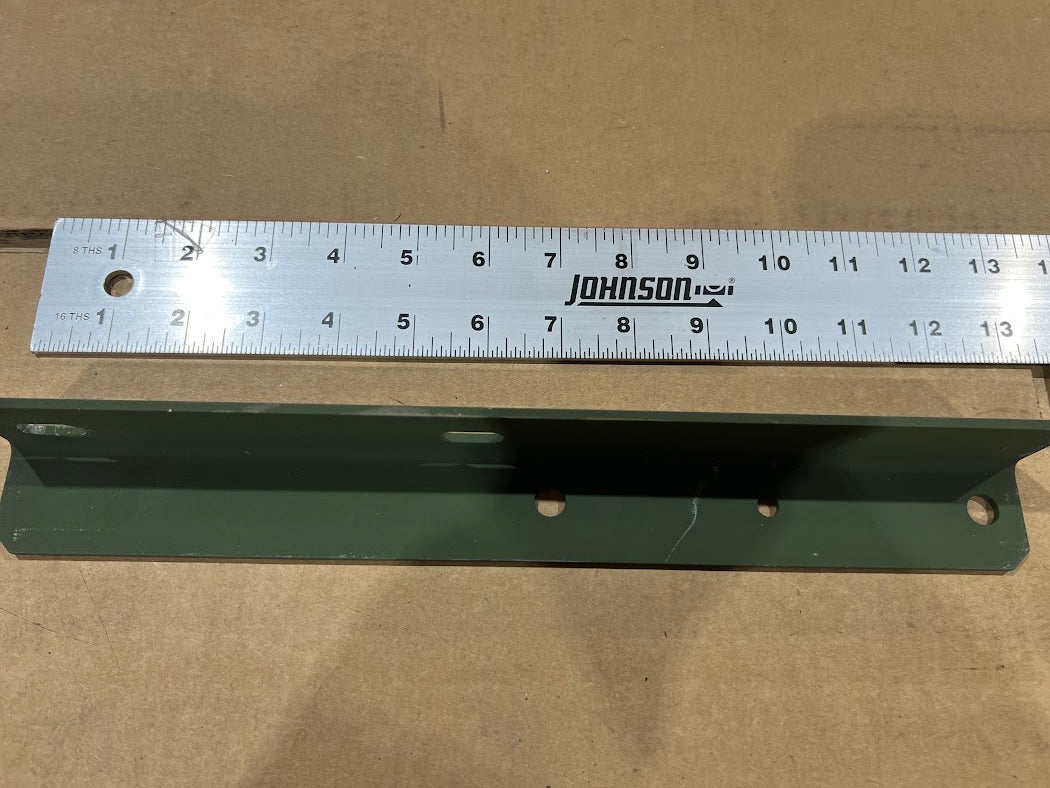

Steel angle bracket with plain mounting holes, for the M1074 M1076 PLS.

Part Information

• Manufacturer: Oshkosh Corp
• Part Number: 1941140
• NSN: 5340-01-355-2731
• End Item: M1074 M1076

Specifications

• First Leg Length: 1.500 in
• First Leg Width: 12.750 in
• First Leg Thickness: 0.119 in
• First Leg Angle: 90.0°
• First Leg Slot Length: 0.812 in / Slot Width: 0.406 in
• Second Leg Length: 1.500 in
• Second Leg Width: 12.750 in
• Second Leg End Width: 12.250 in
• Second Leg Thickness: 0.119 in
• Second Leg Hole Diameter: 0.406 in
• Second Leg Chamfer Angle: 45.0°
• Second Leg Relationship to First Leg: Not Identical
• Mounting Hole Type: Plain
• Special Features: One additional hole on second leg, 0.281 in dia
