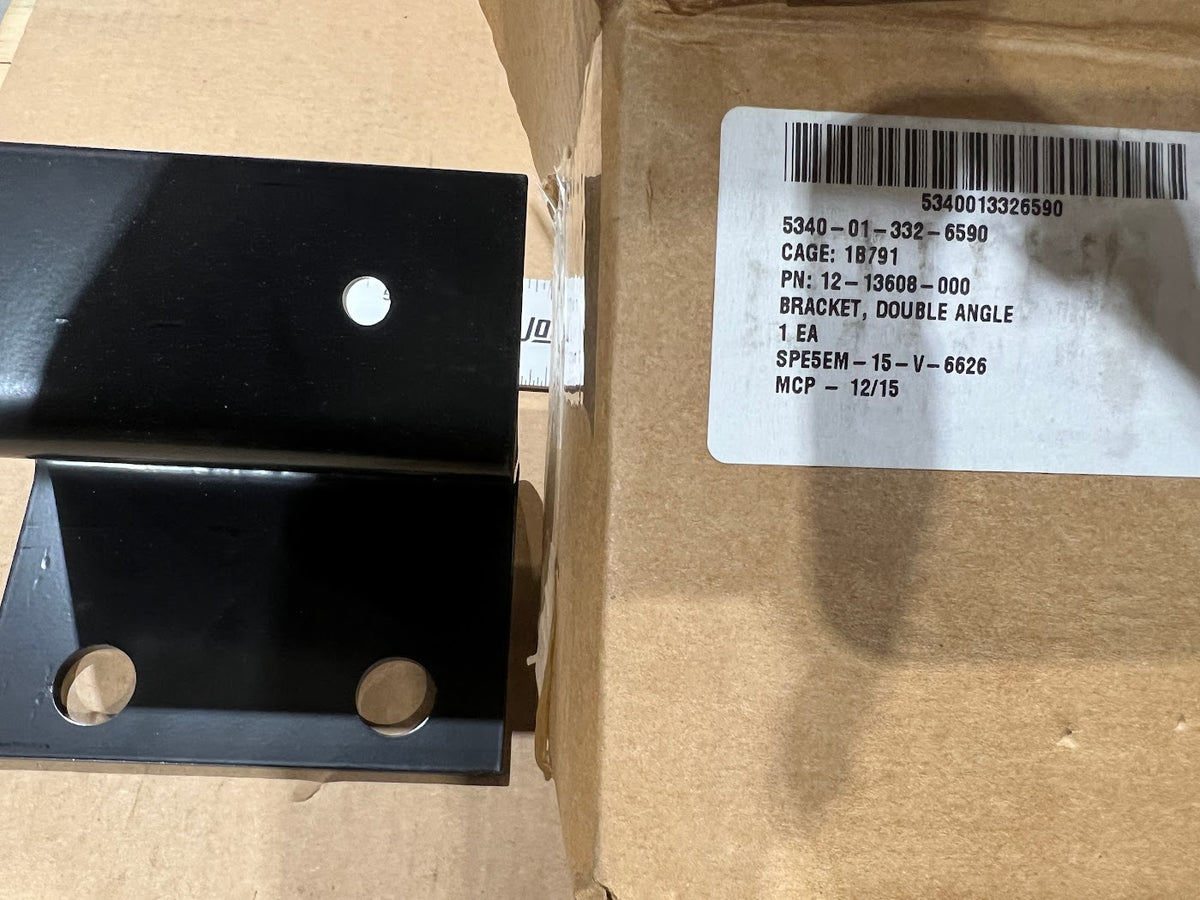

Military LET M-916A1 M-915 SERIES TRUCK 12-13608-000 90.0 Degrees Nominal Square Steel Double Angle Bracket NSN 5340-01-332-6590 OEM New

DAIMLER TRUCK NORTH AMERICA 12-13608-000 Double Angle Bracket (5340-01-332-6590)

Steel double angle bracket, 90.0 degree first leg angle, painted finish, for the M-916A1 M-915 Series Truck.

Part Information

• Manufacturer: Daimler Truck North America LLC
• Part Number: 12-13608-000
• NSN: 5340-01-332-6590
• End Item: M-916A1 M-915 Series Truck

Specifications

• Material: Steel
• Surface Treatment: Paint
• First Leg Angle: 90.0° nominal
• First Leg Length: 3.000 in nominal
• First Leg Width: 7.000 in nominal
• First Leg Thickness: 0.250 in nominal
• Second Leg Length: 4.611 in nominal
• Second Leg Width: 7.000 in nominal
• Second Leg Thickness: 0.250 in nominal
• Second Leg Distance Between Hole Centers Along Width: 4.000 in nominal
• Second Leg Distance From Edge to Hole Center Along Length: 1.000 in nominal
• Center Section Height: 4.751 in nominal
• Center Section Width: 7.000 in nominal
• Center Section Thickness: 0.250 in nominal
• Mounting Hole Type: Plain
• Second Leg Relationship to First Leg: Not Identical
