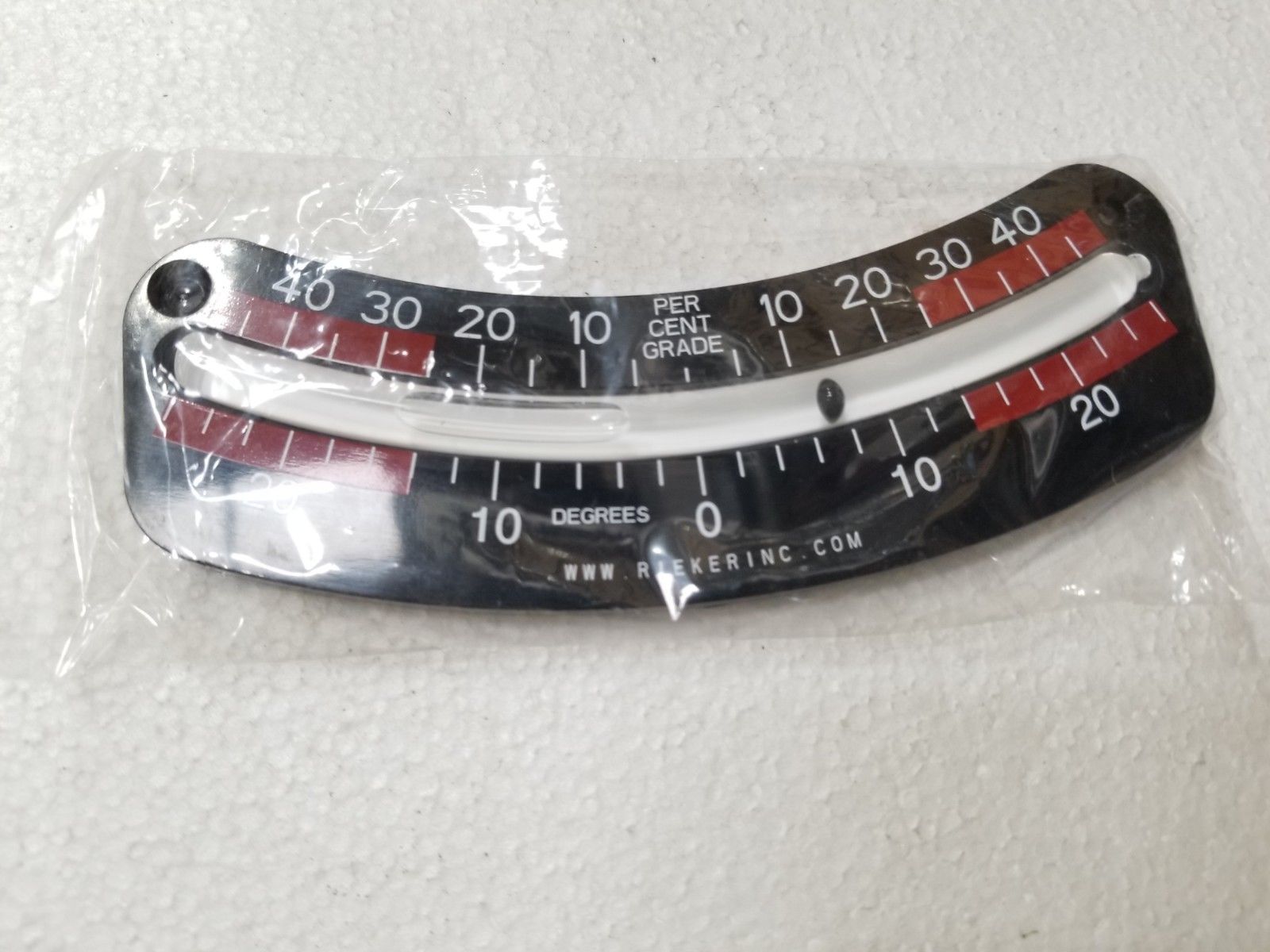

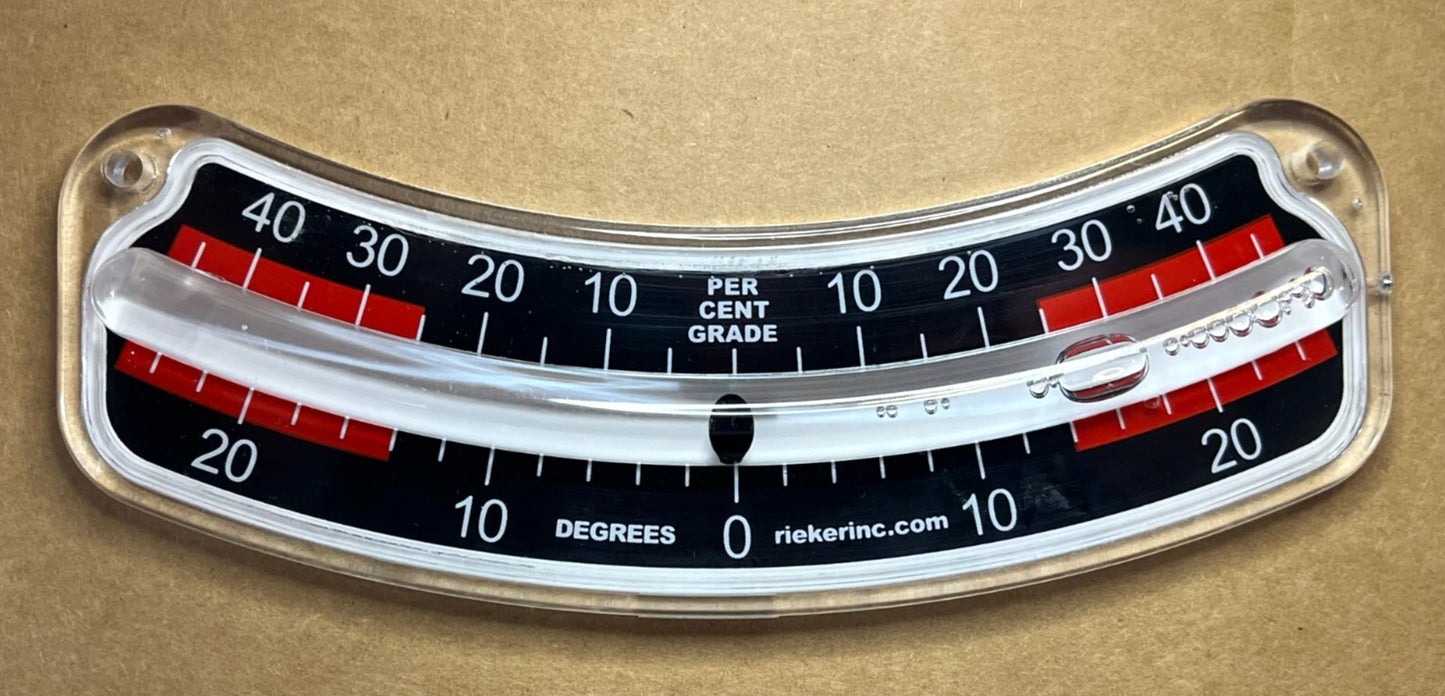

HMMWV MRAP FMTV M35A2 Off Road Military Truck Inclinometer | NSN 6695-01-493-8898

OVERALL DEPTH

0.375 INCHES NOMINAL

OVERALL HEIGHT

2.375 INCHES NOMINAL

OVERALL WIDTH

6.000 INCHES NOMINAL

END ITEM IDENTIFICATION

2420-01-160-2754; MRAP BUFFALO MK2A2

SCALE NAME

DEG

POINTER QUANTITY

1

POINTER FINISH

NONLUMINOUS

SCALE MARKING AND SURFACE FINISH

LETTERS NONLUMINOUS AND LINED INCREMENTS NONLUMINOUS AND NUMERALS NONLUMINOUS

POINTER PURPOSE

INDICATES DEGREE ANGLE AND PERCENT GRADE

SCALE RANGE

LEFT 26 DEG TO RIGHT 26 DEG

SCALE SMALLEST INCREMENT GRADUATION

2.0 DEGREE PER MARK

SPECIAL FEATURES

UPPER SCALE INDICATES PERCENT GRADE IN 5 PERCENT INCREMENTS FROM LEFT 45 PERCENT TO RIGHT 45 PERCENT; INDICATOR IS A FLOATING BLACK BALL INSIDE A CLEAR GLASS TUBE FILLED WITH DAMPENING FLUID IN FRONT OF A WHITE BACKGROUND; MATERIAL IS BLACK POLYCARBONATE; MARKINGS ARE WHITE SILK SCREENED; OPERATING TEMPERATURE RATING IS MINUS 50 DEGREES FAHRENHEIT TO 180 DEGREES FAHRENHEIT
