Mepp Generator 3468AS1004-1 Engine Coolant Radiator 3468AS1004 | NSN 2930-01-317-5409
Mepp Generator 3468AS1004-1 Engine Coolant Radiator 3468AS1004 | NSN 2930-01-317-5409
Regular price
$2,694.47 USD
Regular price
Sale price
$2,694.47 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
NSN 2930-01-317-5409 Specs and cross-references for NSN 2930-01-317-5409 (opens in a new tab) ↗

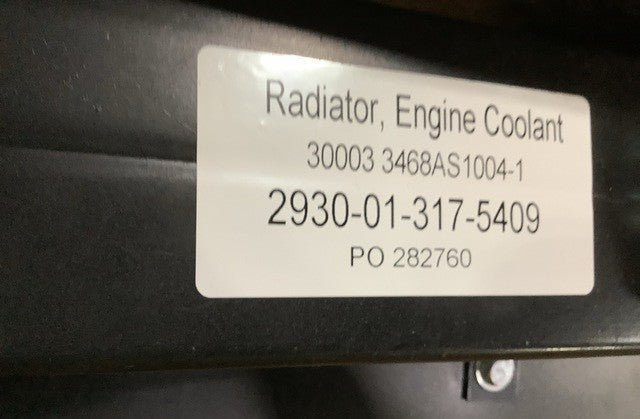

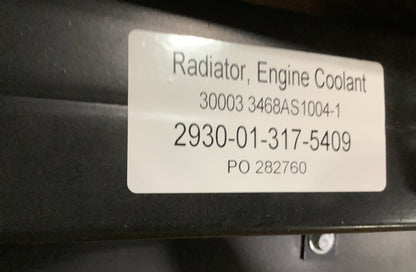

3468AS1004-1 Engine Coolant Radiator (NSN 2930-01-317-5409)
Single-tank, single-core engine coolant radiator with flanged round inlet and outlet connections, side bracket mounting; furnished with fan shroud, filler neck, and mounting feature.
Part Information
- Design Control Activity: Naval Air Systems Command
- Part Number: 3468AS1004-1
- NSN: 2930-01-317-5409
Specifications
- Overall Width: 23.000 in nominal
- Core Width: 20.375 in nominal
- Core Height: 23.000 in nominal
- Tank Quantity: 1
- Core Quantity: 1
- Outlet Connection: Round, Flanged
- Inlet Connection: Round, Flanged
- Mounting Method: Side Bracket(s)
- Tank (Upper): 4.125 in H x 20.000 in W x 3.000 in Thick
- Tank (Lower): 2.000 in H x 20.000 in W x 3.000 in Thick
- Furnished Items: Fan Shroud, Filler Neck, Mounting Feature
