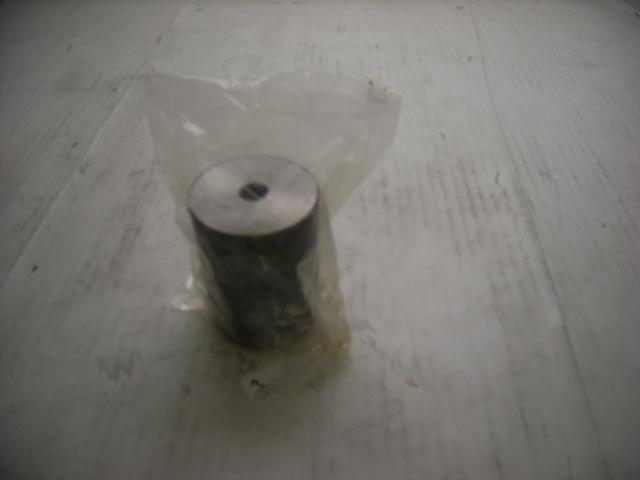

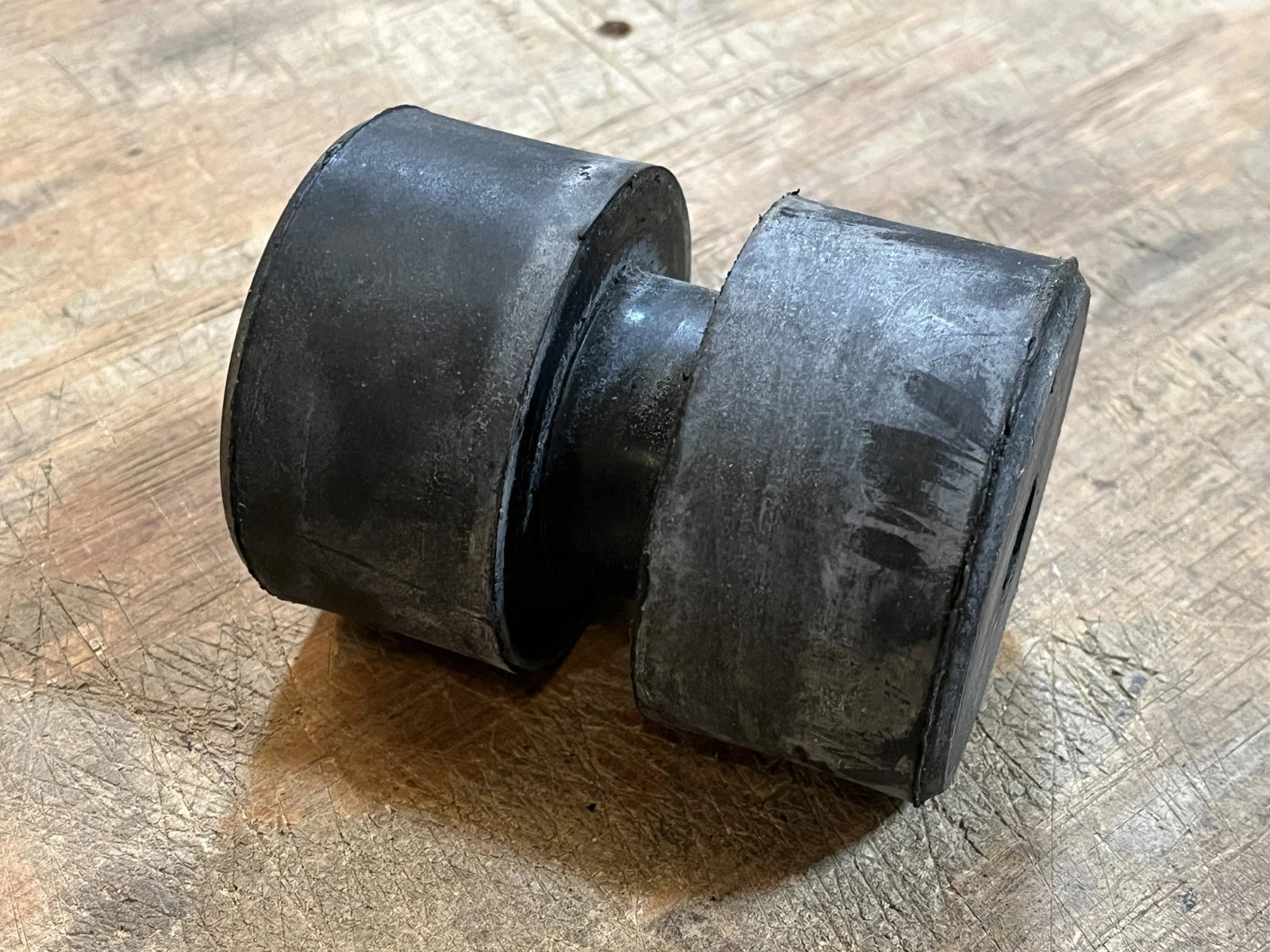

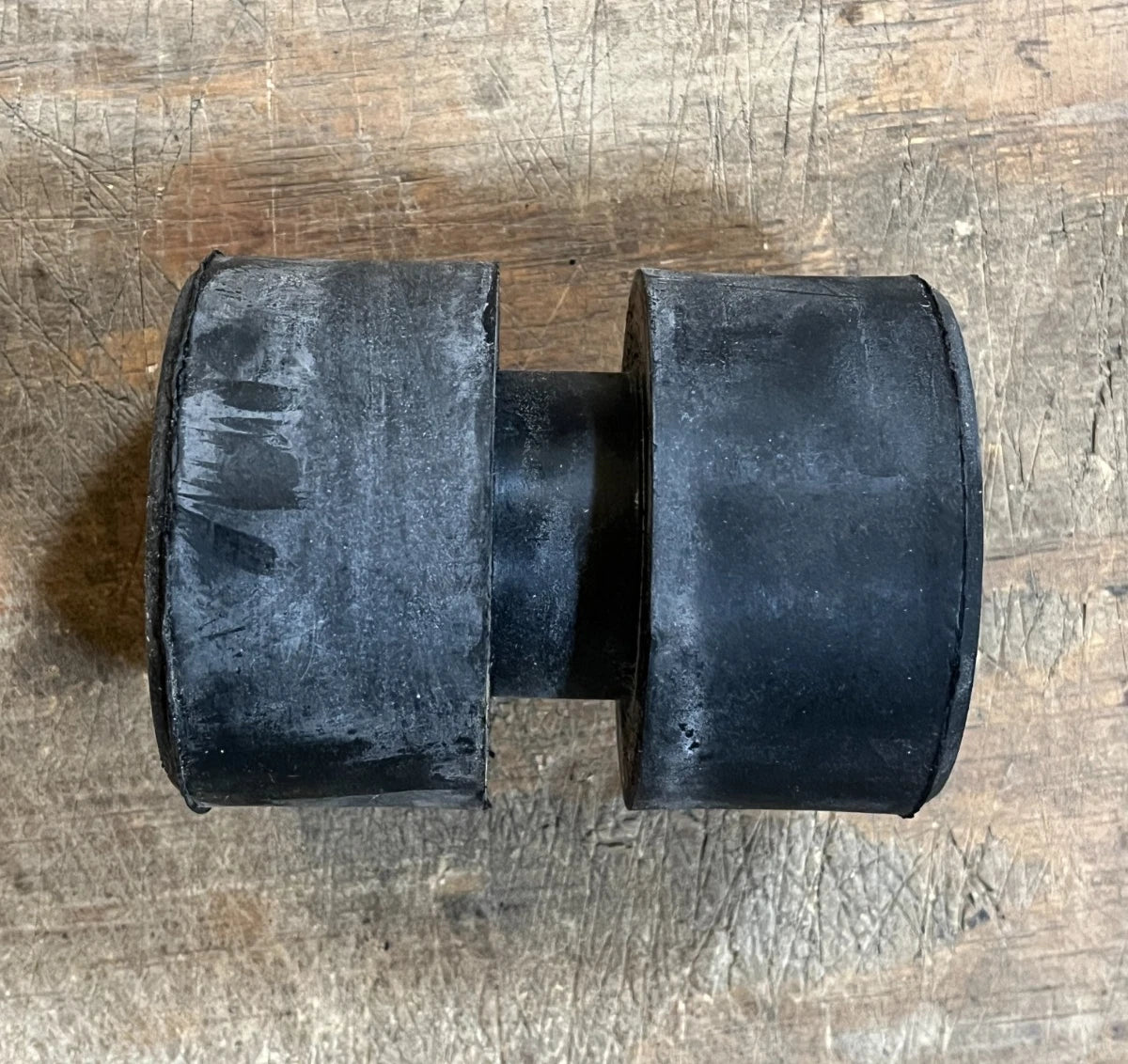

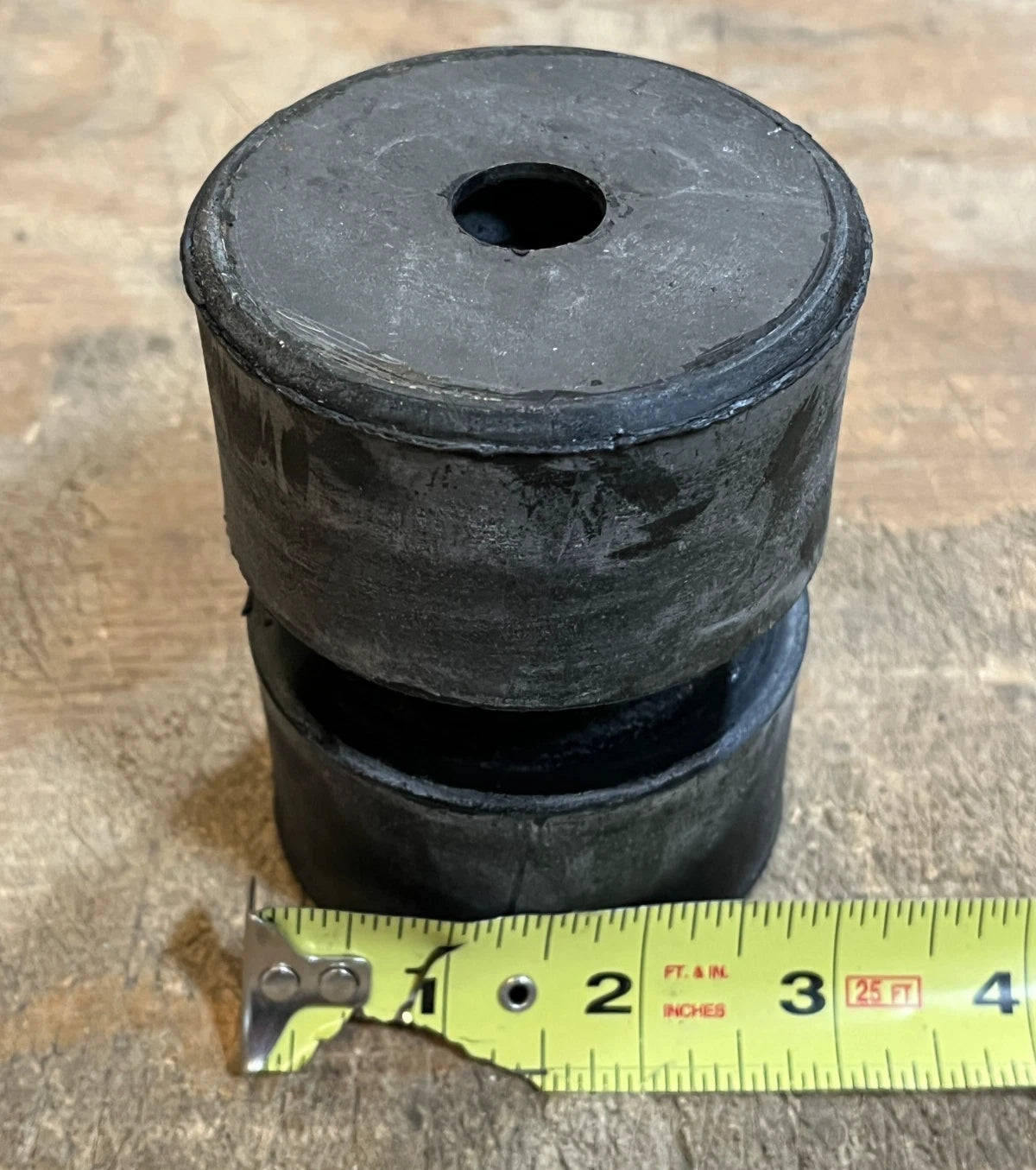

M939 5 Ton Resilient Engine Mount 12363275 | NSN 5340-01-331-7985
M939 5 Ton Resilient Engine Mount 12363275 | NSN 5340-01-331-7985
Couldn't load pickup availability
NSN 5340-01-331-7985 Specs and cross-references for NSN 5340-01-331-7985 (opens in a new tab) ↗
|

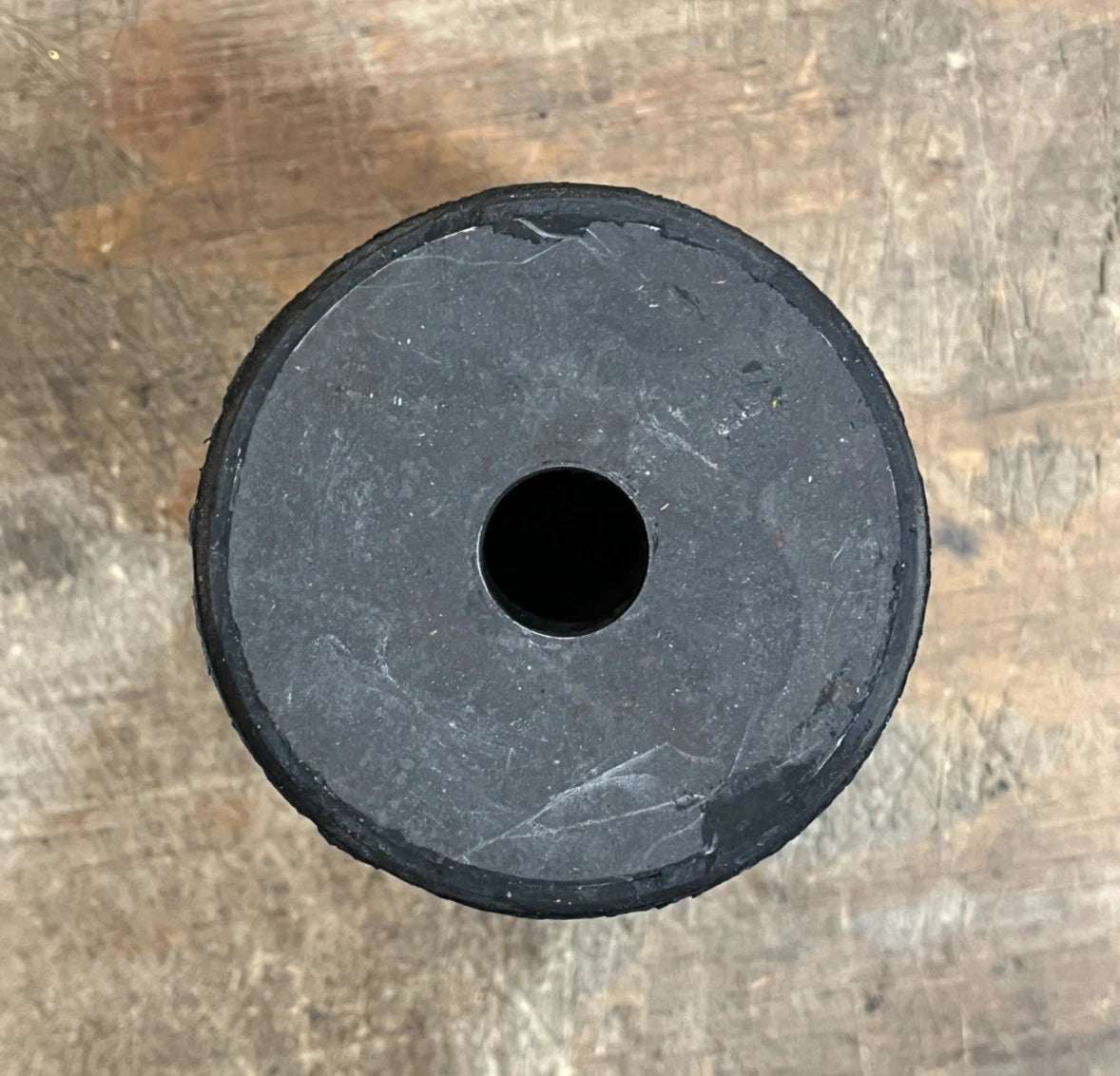

INSIDE DIAMETER |
0.656 INCHES NOMINAL |
|
NONMETALLIC HARDNESS RATING |
55.0 MINIMUM SHORE DUROMETER A AND 65.0 MAXIMUM SHORE DUROMETER A |
|
MAJOR OUTSIDE DIAMETER |
2.900 INCHES NOMINAL |
|
SPECIAL FEATURES |

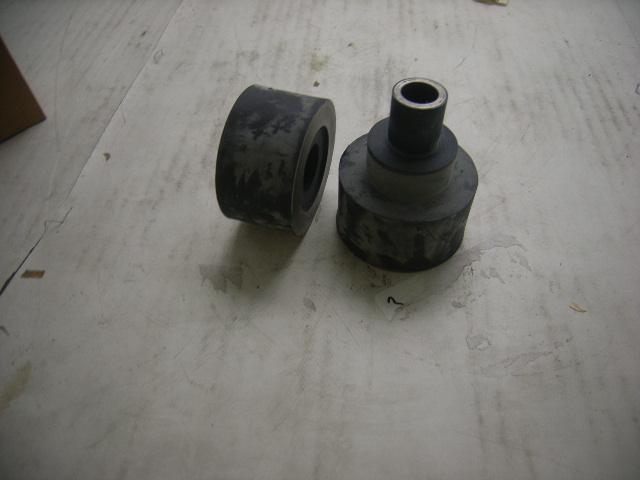

ITEM MADE IN 2 MATHCED SECTIONS |
|

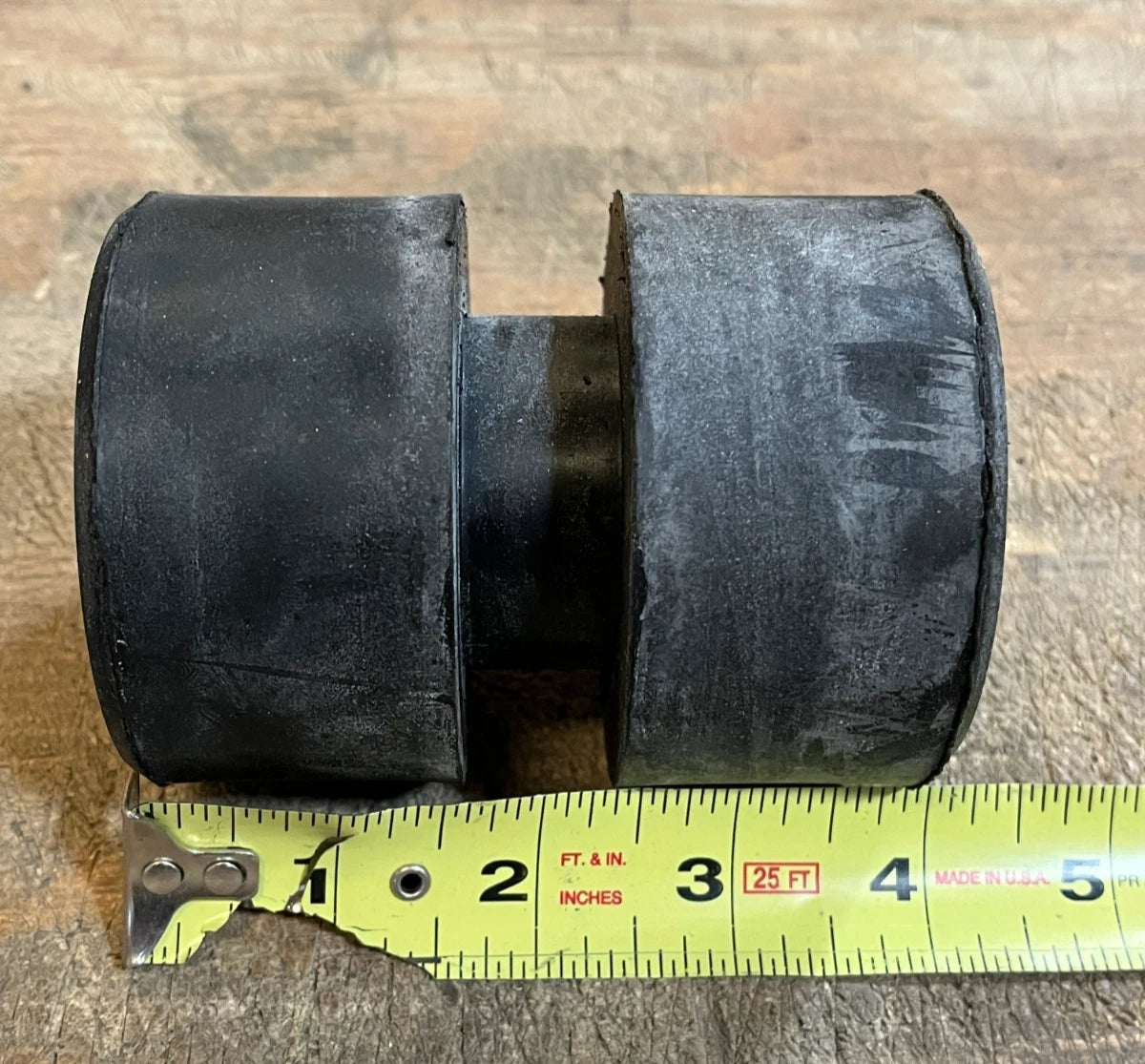

HEIGHT |
5.040 INCHES NOMINAL |
|
MATERIAL |
STEEL BUSHING |
|
MATERIAL |
STEEL WASHER |
|
MATERIAL DOCUMENT AND CLASSIFICATION |
ASTM A513, COMP 1+26, TYPE 5 ASSN STD SINGLE MATERIAL RESPONSE BUSHING |
|
MATERIAL DOCUMENT AND CLASSIFICATION |
ASTM A569 ASSN STD SINGLE MATERIAL RESPONSE OR ASTM A366 ASSN STD SINGLE MATERIAL RESPONSE WASHER |
|
MAXIMUM LOAD RATING |
NOT RATED |
|
RIGID MEMBER MATERIAL AND LOCATION |
STEEL,ASTM A513,CQMP 1P26, TYPE 5,BUSHING |
|
RIGID MEMBER MATERIAL AND LOCATION |
STEEL, ASTM A569 WASHER OR STEEL, ASTM A366 WASHER |
|
SHAPE |
RECTANGULAR |
Fits

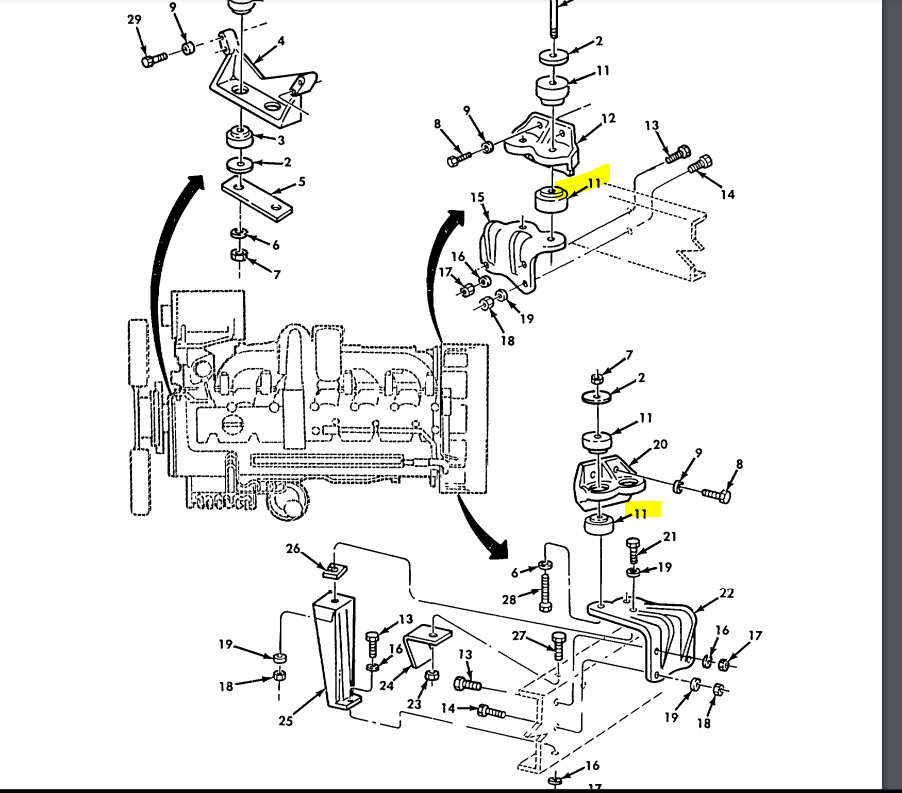

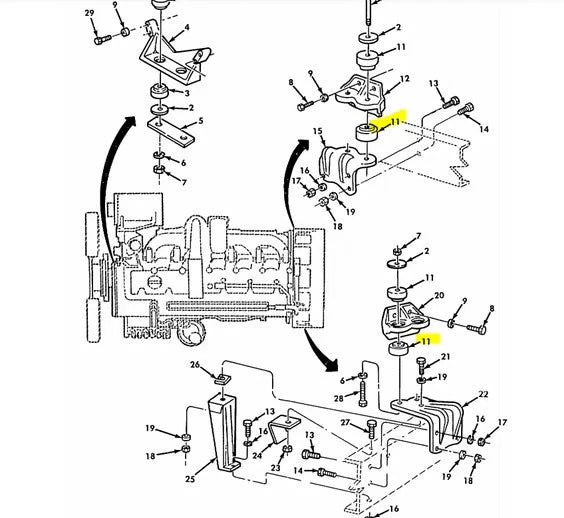

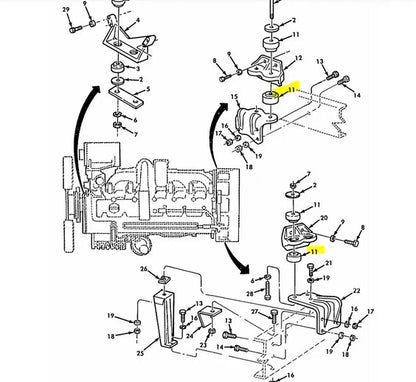

This NSN is listed in the U.S. Army repair parts manuals for:
- 5-ton M939 series: M923, M925, M927, M928, M929, M930, M931, M932, M934, M936 and A1/A2 variants (TM 9-2320-272-24P)
Confirm against your vehicle's data plate or technical manual before ordering. Call or email us with your vehicle model and we will check it for you.
