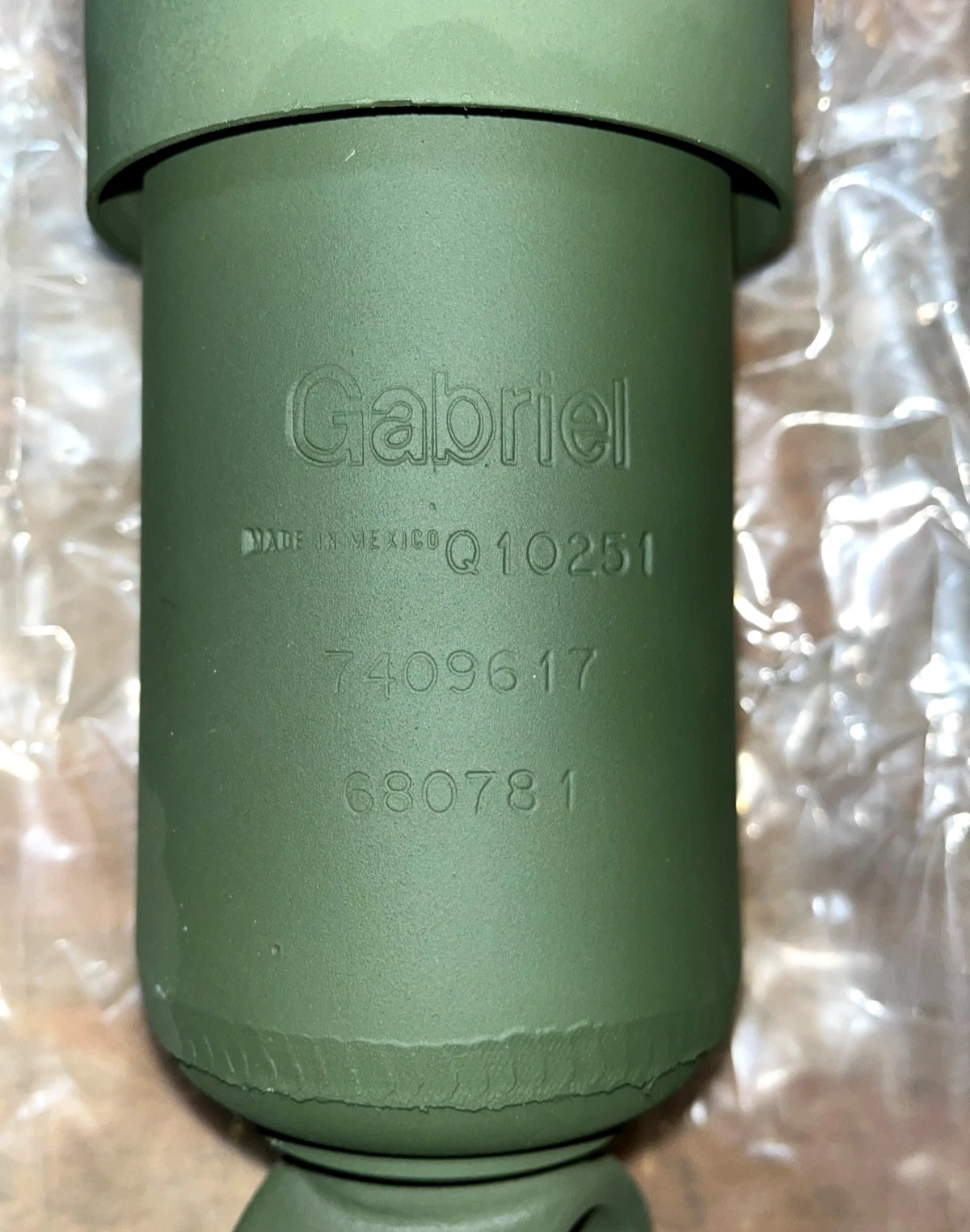

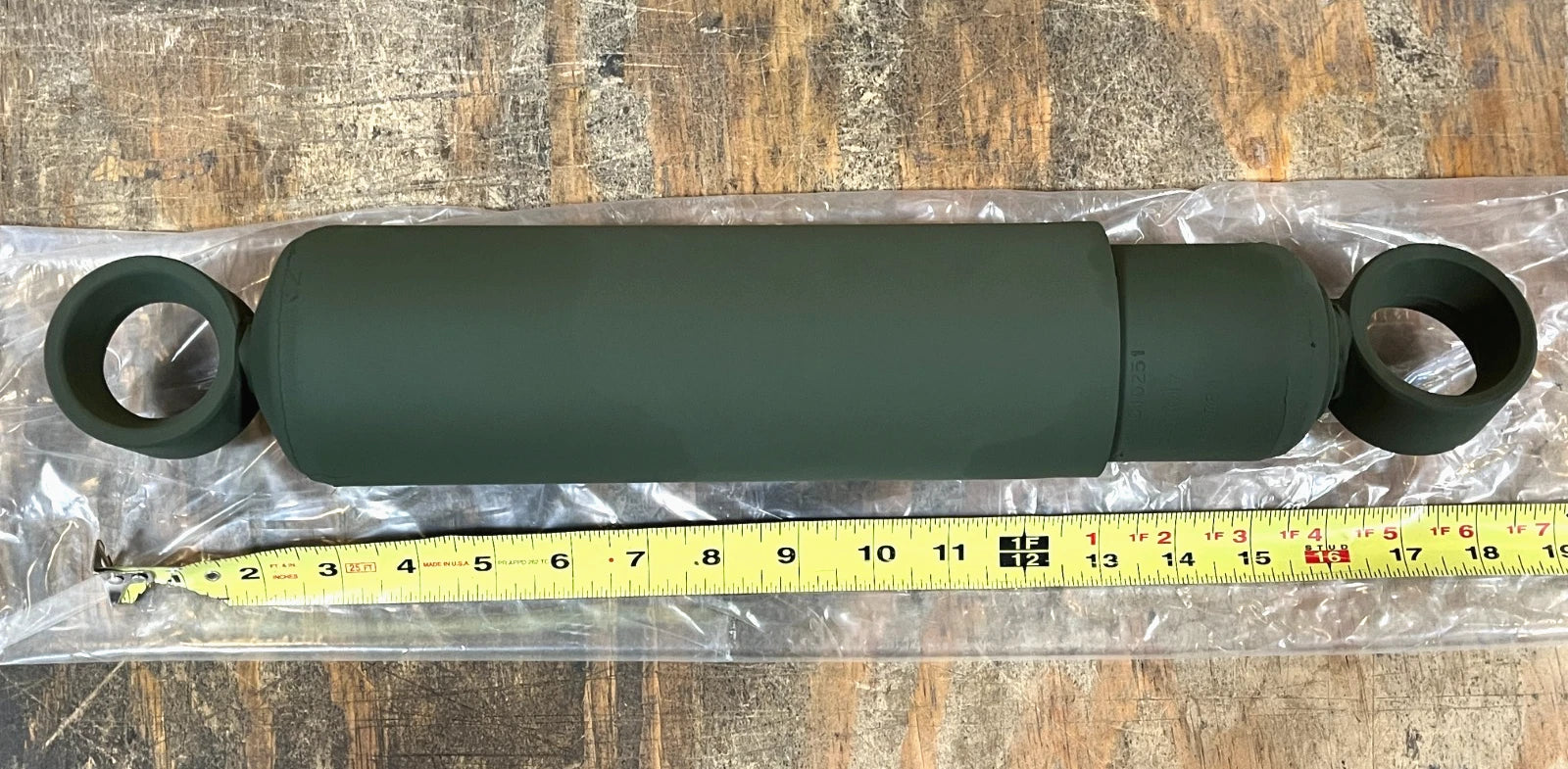

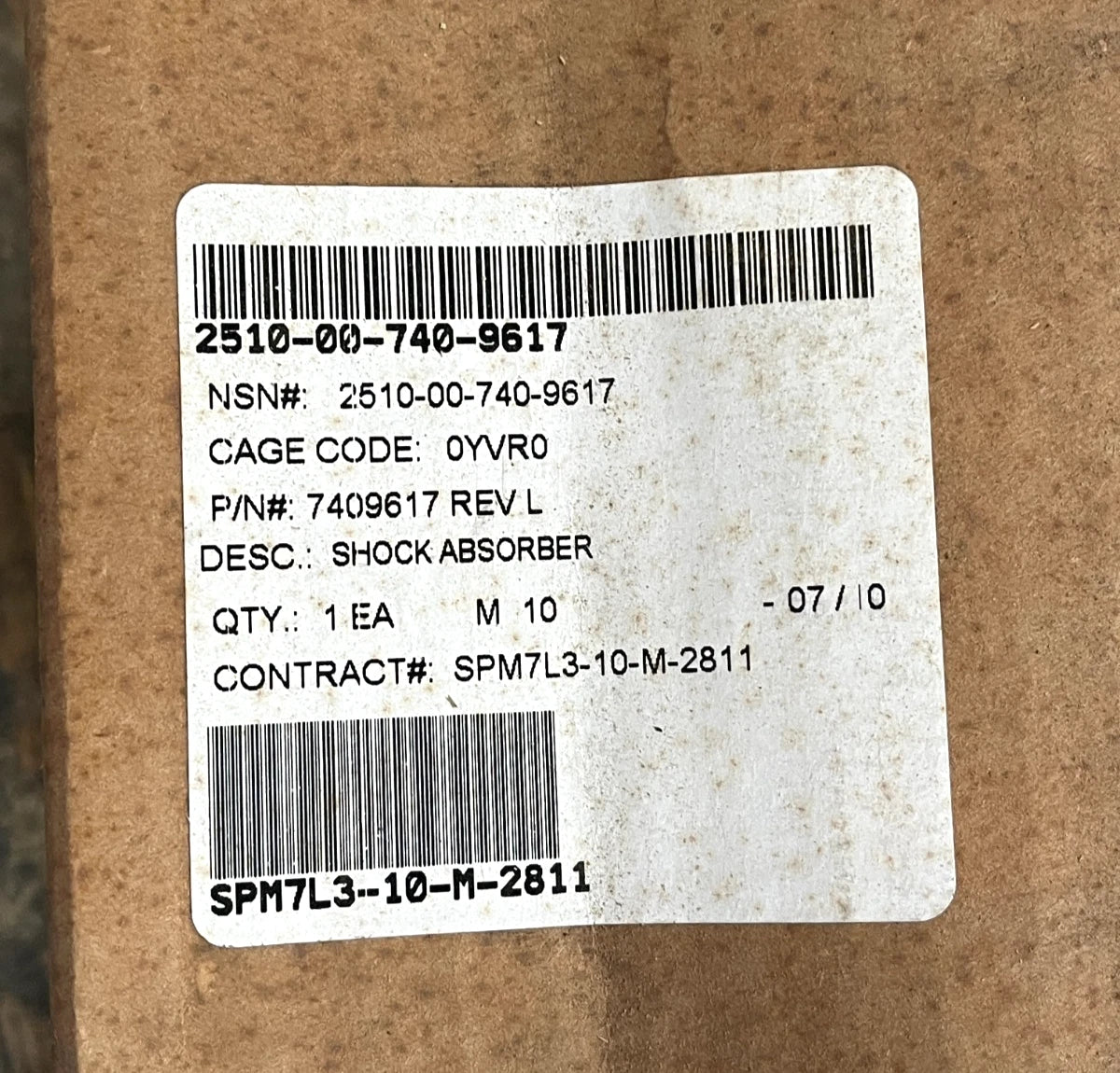

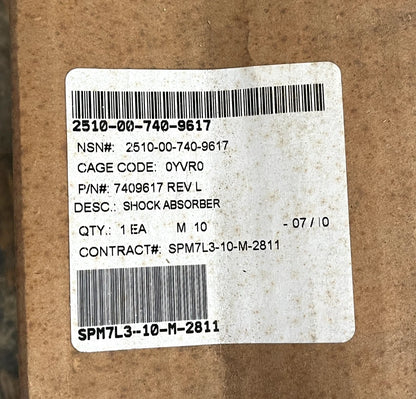

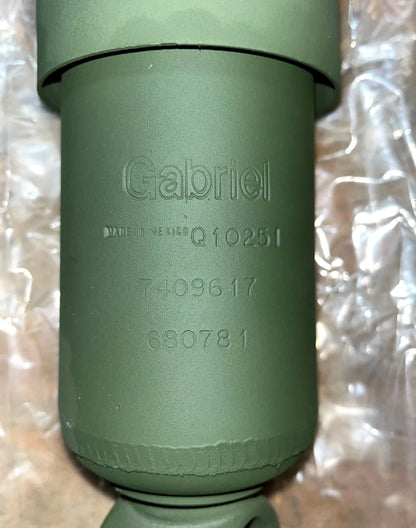

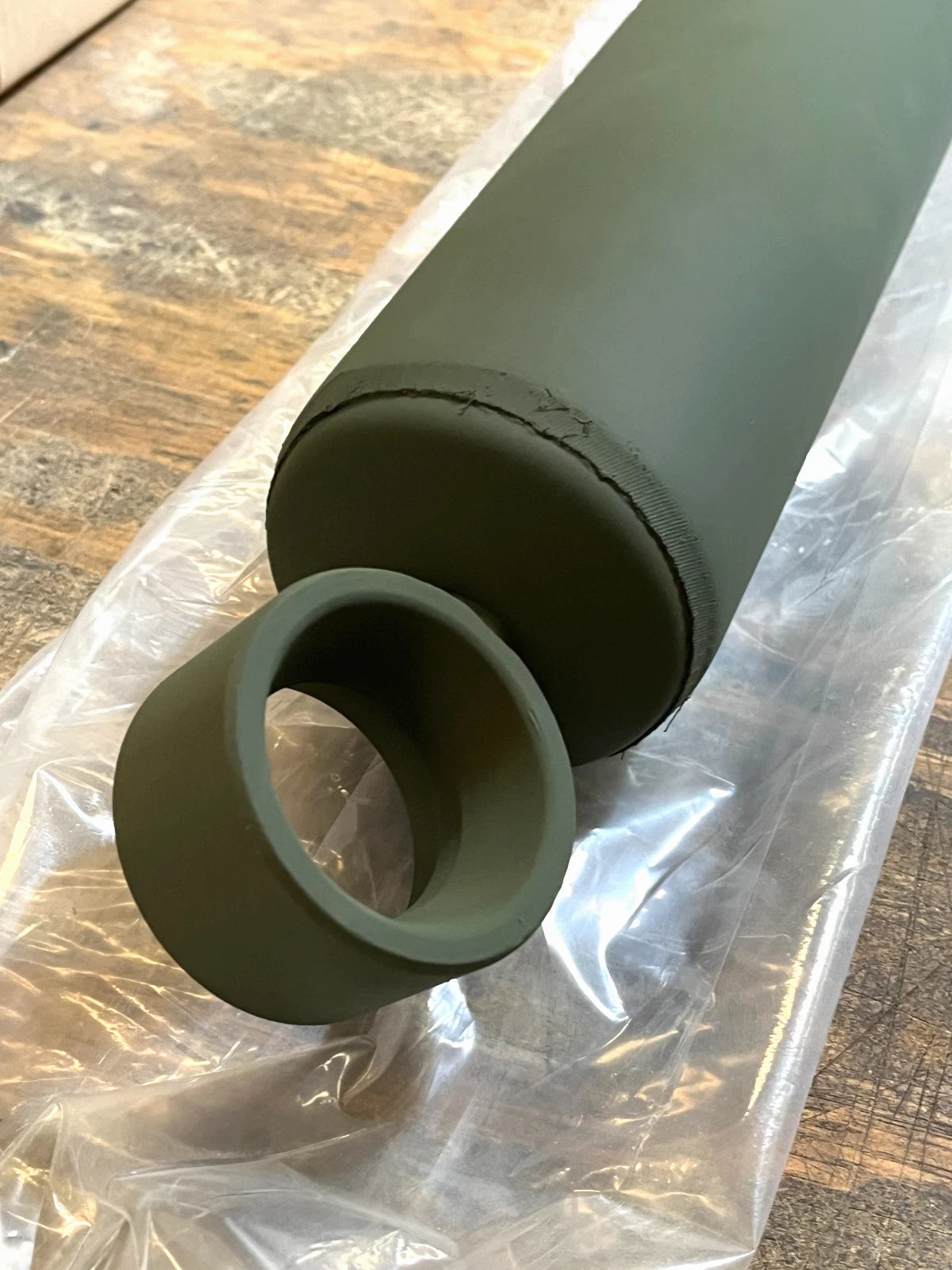

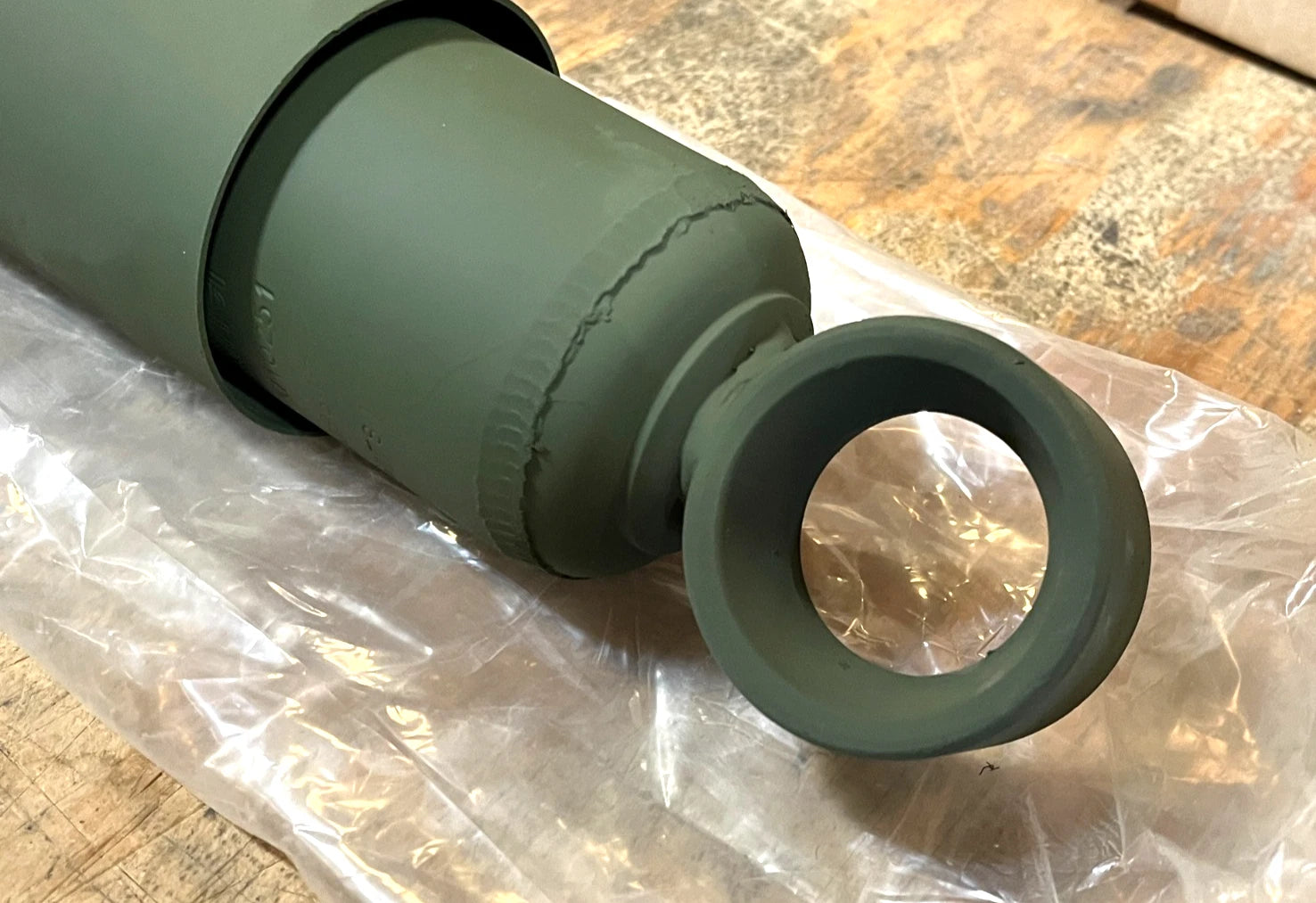

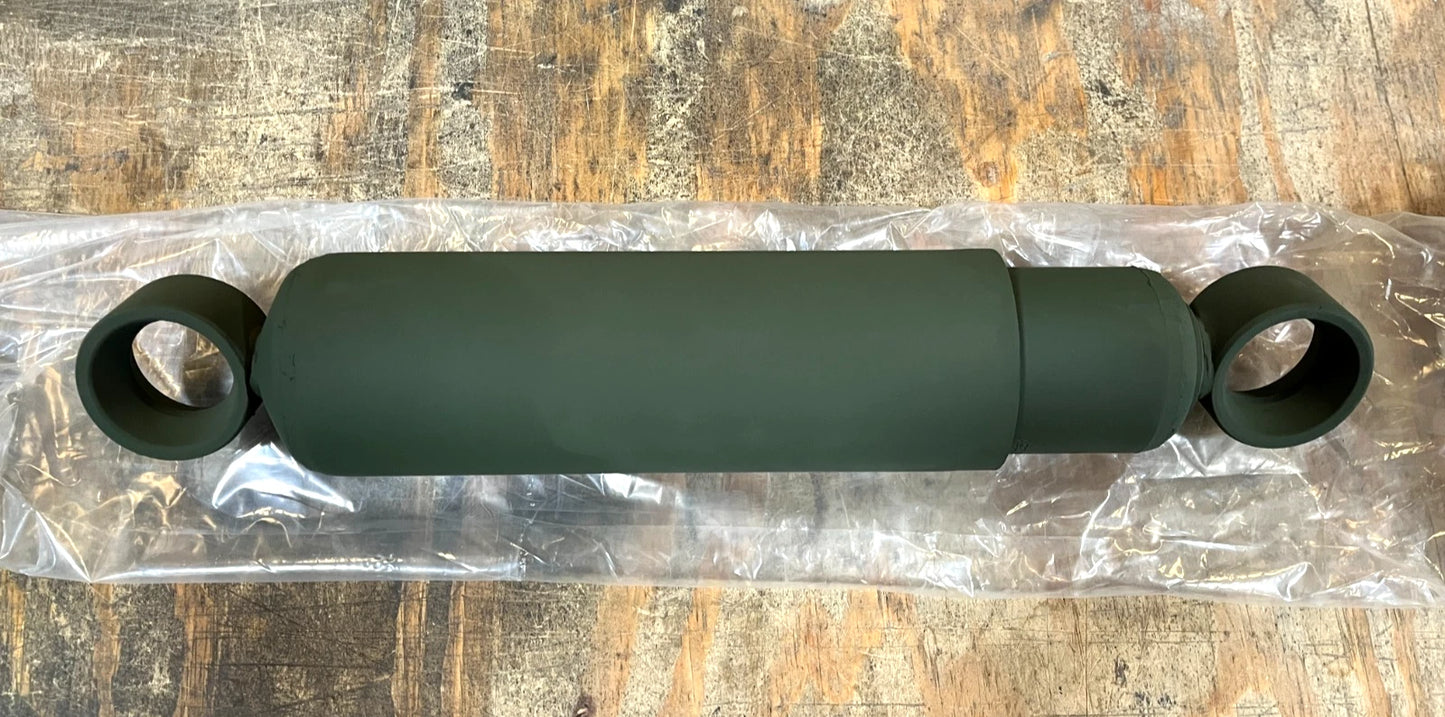

M936 5 Ton Truck Gabriel Shock Absorber 7409617 | NSN 2510-00-740-9617
M936 5 Ton Truck Gabriel Shock Absorber 7409617 | NSN 2510-00-740-9617
Couldn't load pickup availability
|
END ITEM IDENTIFICATION |
AIRBORNE MOBILE DIR AIR SPT CTL (2ID) (02M JUL 83) (AN/UYQ-3A). AN/TPQ-36 FIREFINDER RADAR SET. (M936) 5-TON WRECKER TRUCK. |
|
PISTON END CONNECTION STYLE |
RING |
|
CYLINDER END CONNECTION STYLE |
RING |
|
CRITICALITY CODE JUSTIFICATION |
FEAT |
|
NOMINAL COMPRESSED LENGTH |
15.875 INCHES |
|
PROTECTIVE SHIELD TYPE |
DUST |
|
PISTON END NOMINAL LARGEST INSIDE DIAMETER |
2.063 INCHES |
|
PISTON END NOMINAL OUTSIDE DIAMETER |
2.250 INCHES |
|
CYLINDER END NOMINAL LARGEST INSIDE DIAMETER |
2.063 INCHES |
|
CYLINDER END NOMINAL OUTSIDE DIAMETER |
2.250 INCHES
|
Fits
This NSN is listed in the U.S. Army repair parts manuals for:
- 5-ton M39 series: M39, M40, M41, M51, M52, M54, M55, M61, M63, M139, M246, M291 and A1/A2 variants (TM 9-2320-211-20P)
- 5-ton M939 series: M923, M925, M927, M928, M929, M930, M931, M932, M934, M936 and A1/A2 variants (TM 9-2320-272-24P)
- M915 line haul: M915, M916, M917, M918, M919, M920 (TM 9-2320-273-24P)
- M915 line haul: M915A1 (TM 9-2320-283-24P)
Confirm against your vehicle's data plate or technical manual before ordering. Call or email us with your vehicle model and we will check it for you.
