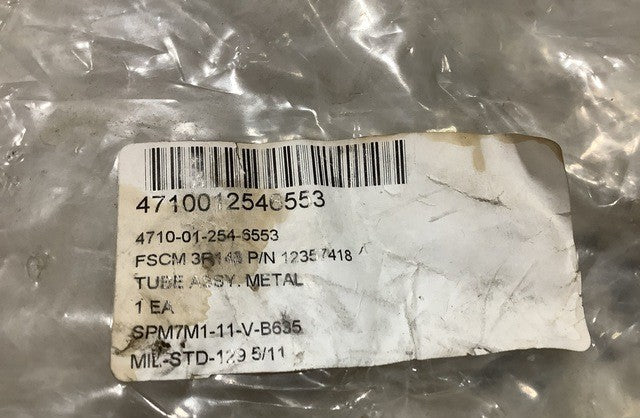

12357418 Metal Tube Assembly (NSN 4710-01-254-6553)

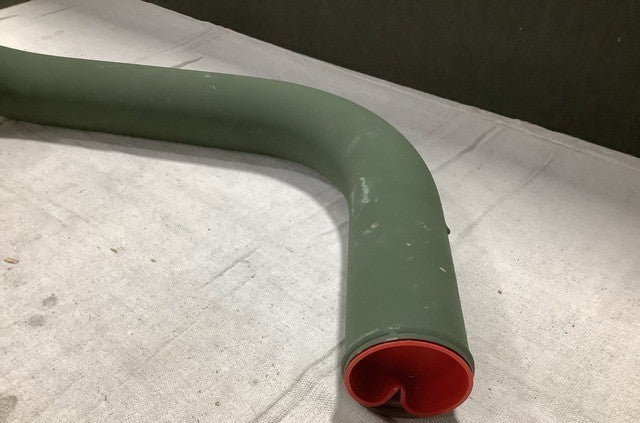

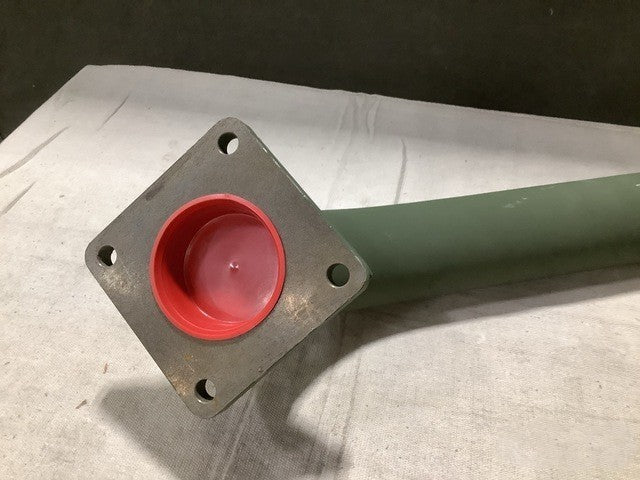

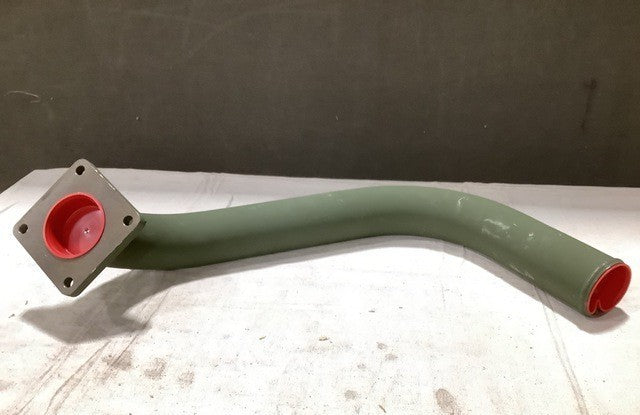

Prebent steel tube assembly, single mating end, for the Armored Combat Earthmover (ACE), M9.
Part Information
- Design Control Activity: U.S. Army Tank Automotive Command
- Part Number: 12357418
- NSN: 4710-01-254-6553
- End Item: Armored Combat Earthmover (ACE), M9
Specifications
- Design Form: Prebent
- Tube Outside Diameter: 2.750 in nominal
- Wall Thickness: 0.095 in nominal
- Mating End Quantity: 1
- Bolt Circle Diameter (Single End): 4.950 in nominal
- Bolt Hole Quantity: 4
- Bolt Hole Diameter (Single End): 0.043-0.045 in
- Material, Tubing: Steel
- Material, Single End: Steel Comp 1008
