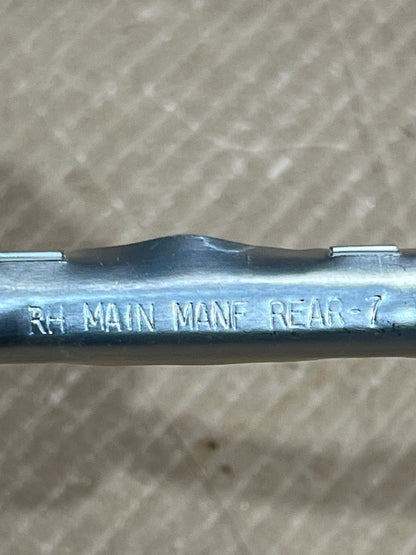

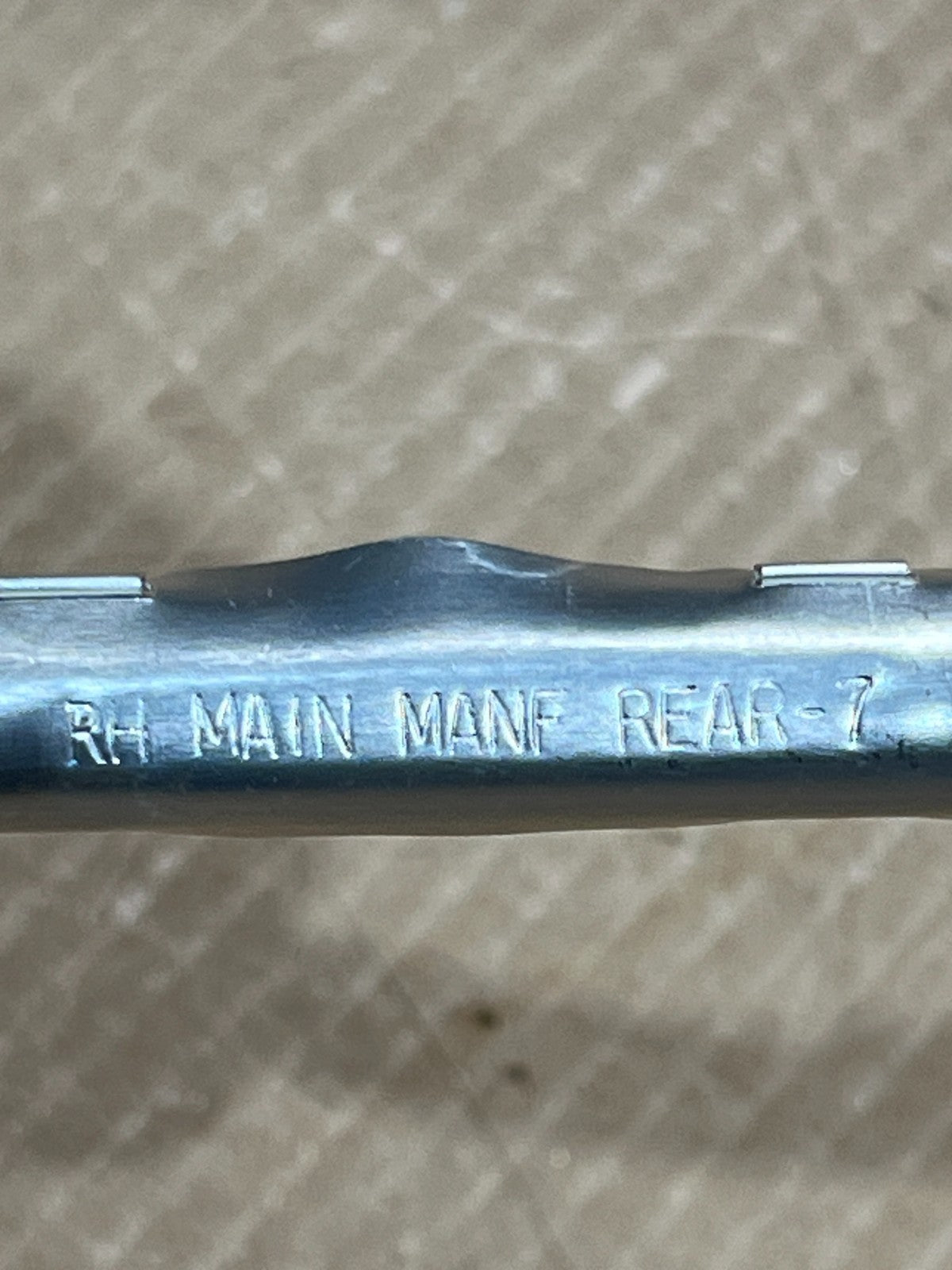

M9 ACE COMBAT EXCAVATOR 13214E2739 REAR RH PREBENT METAL TUBE ASSY 4710011928528

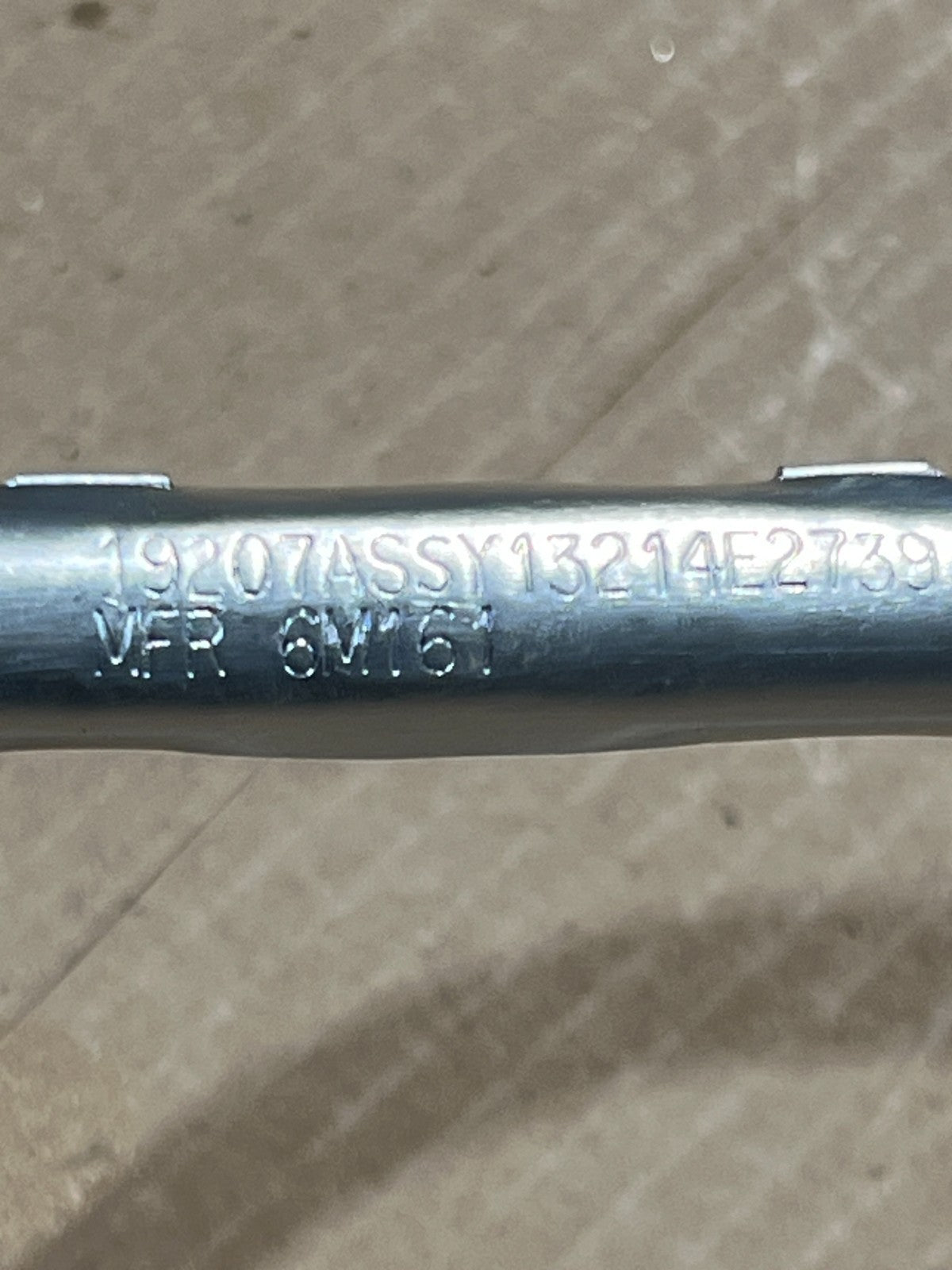

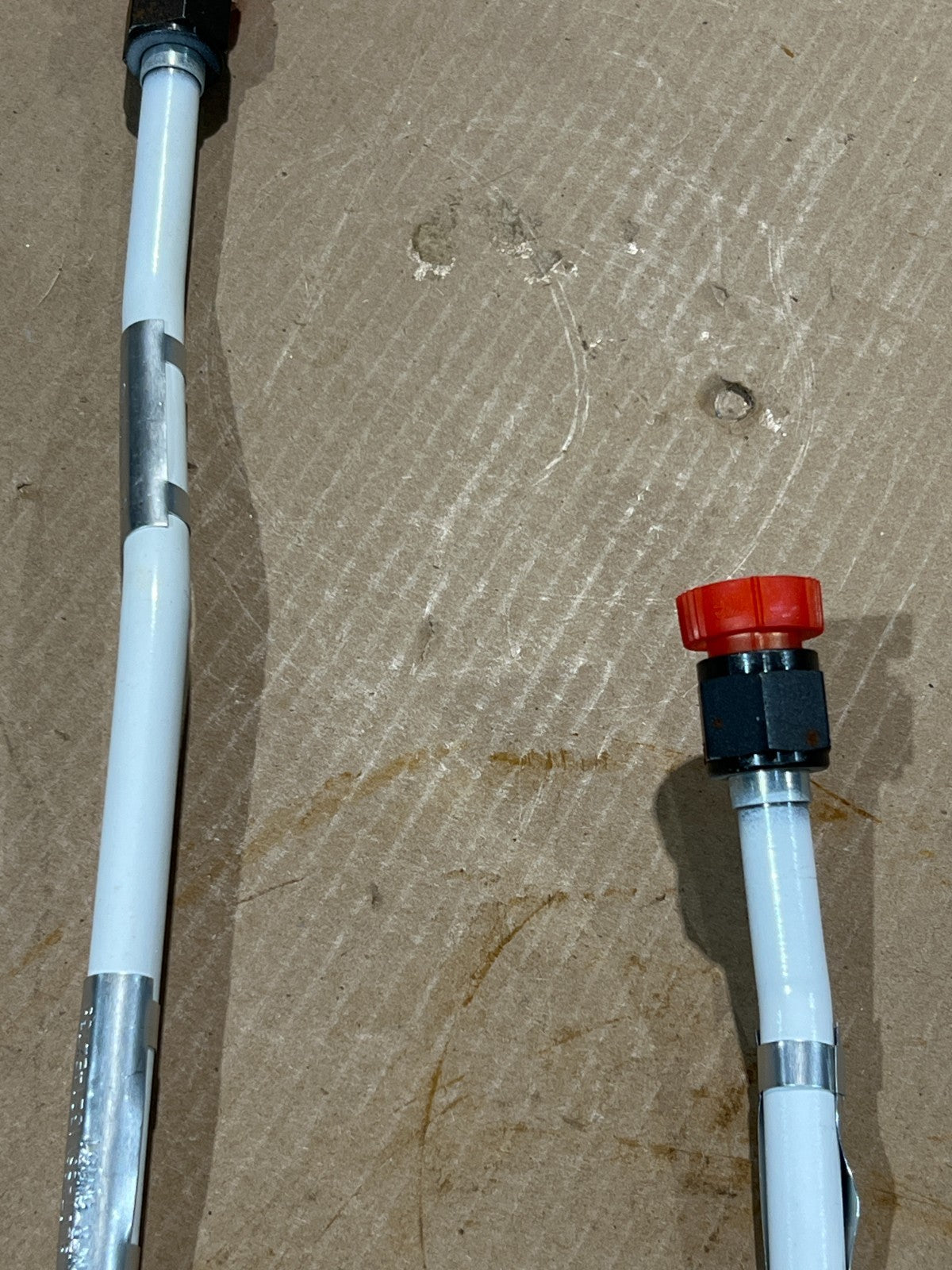

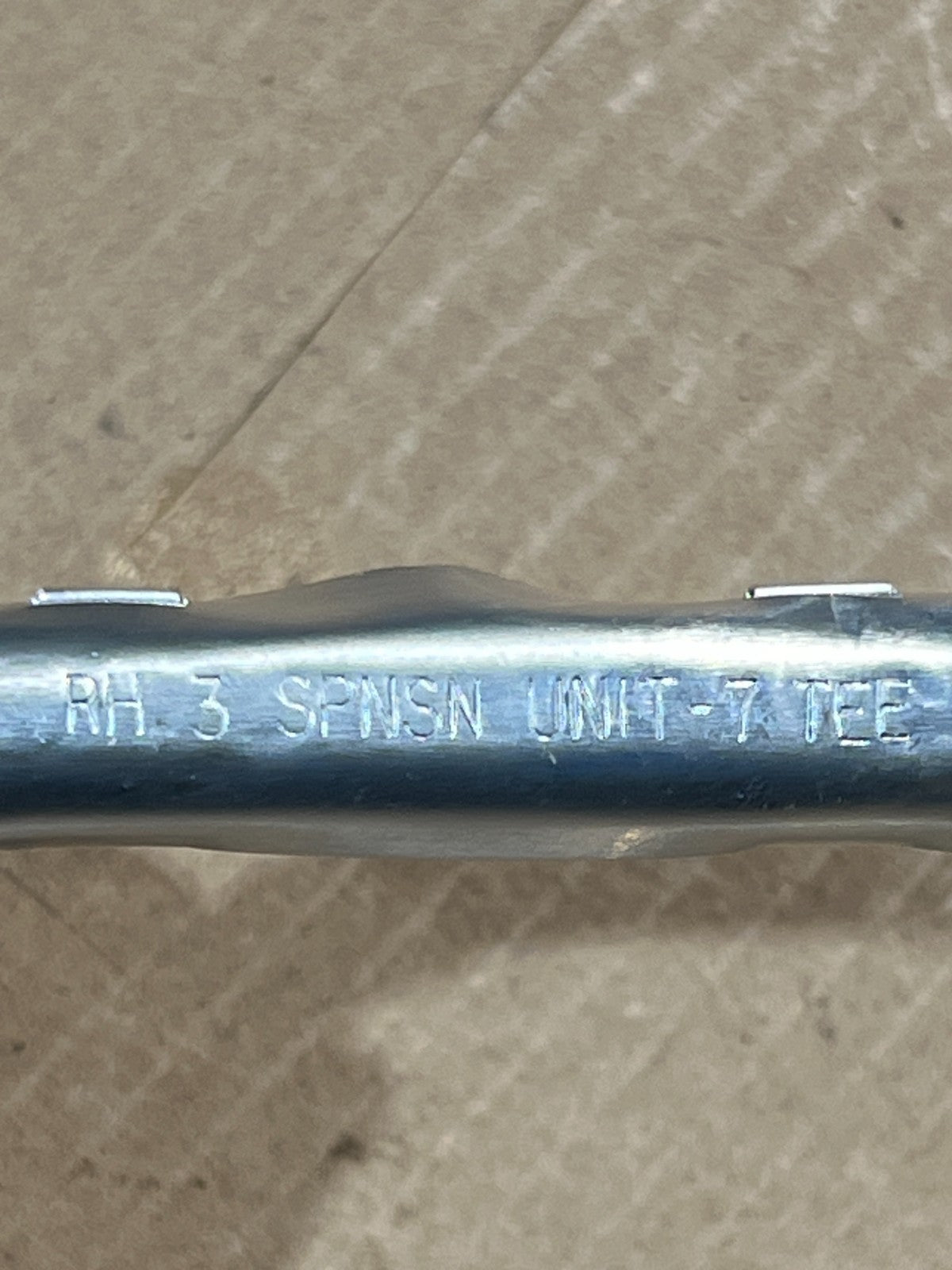

13214E2739 Metal Tube Assembly (4710-01-192-8528)

Prebent steel metal tube assembly for the Armored Combat Earthmover (ACE), M9.

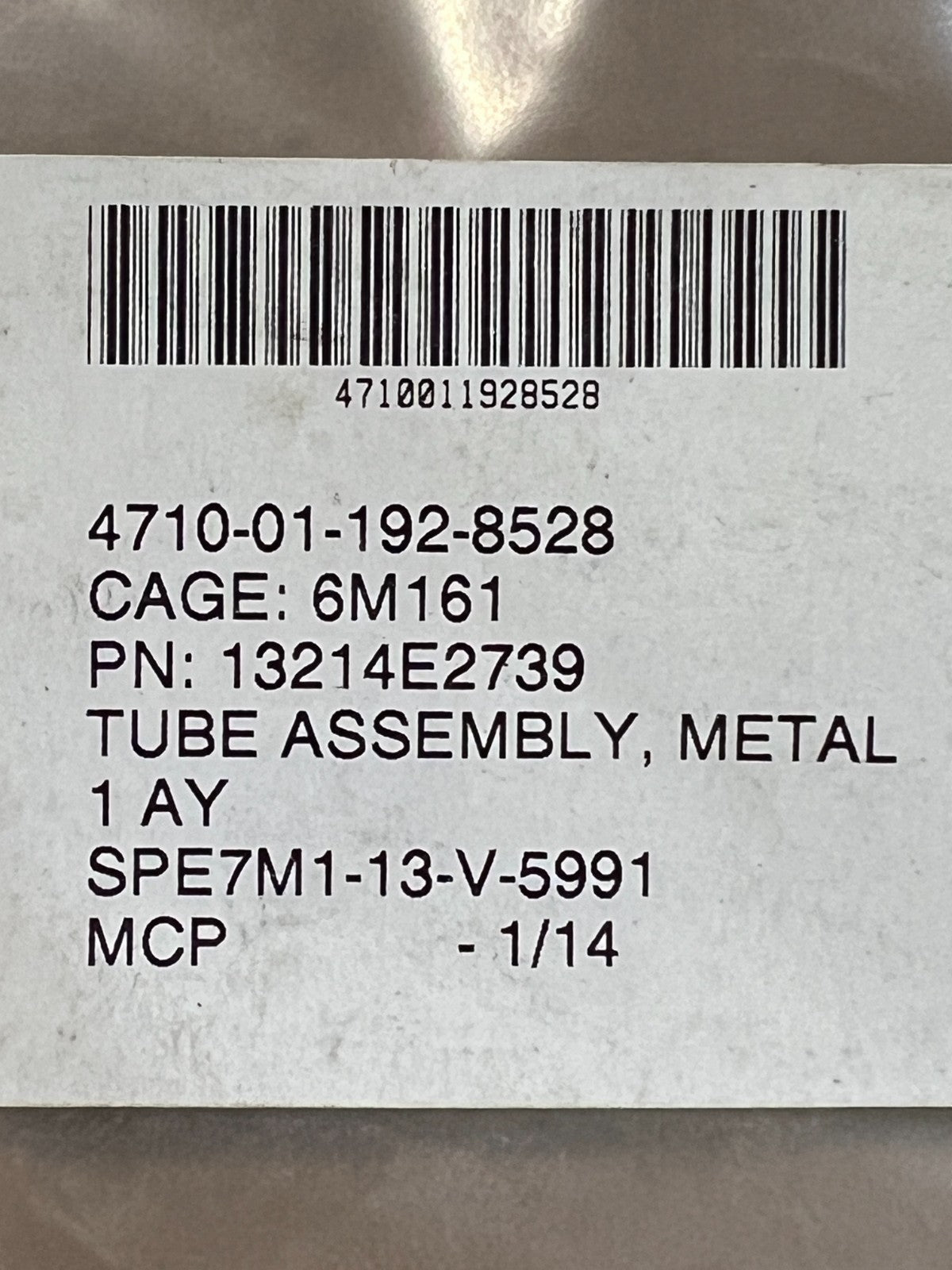

Part Information

• Design Control Activity: CECOM LR Center
• Part Number: 13214E2739
• NSN: 4710-01-192-8528
• End Item: Armored Combat Earthmover (ACE), M9

Specifications

• Wall Thickness: 0.065 in nominal
• Thread Class: 3B
• Thread Direction: Single end, right-hand
• Mating End Quantity: 2
• Seat Angle: 33.0°
• Design Form: Prebent
• Tube Outside Diameter: 0.500 in nominal

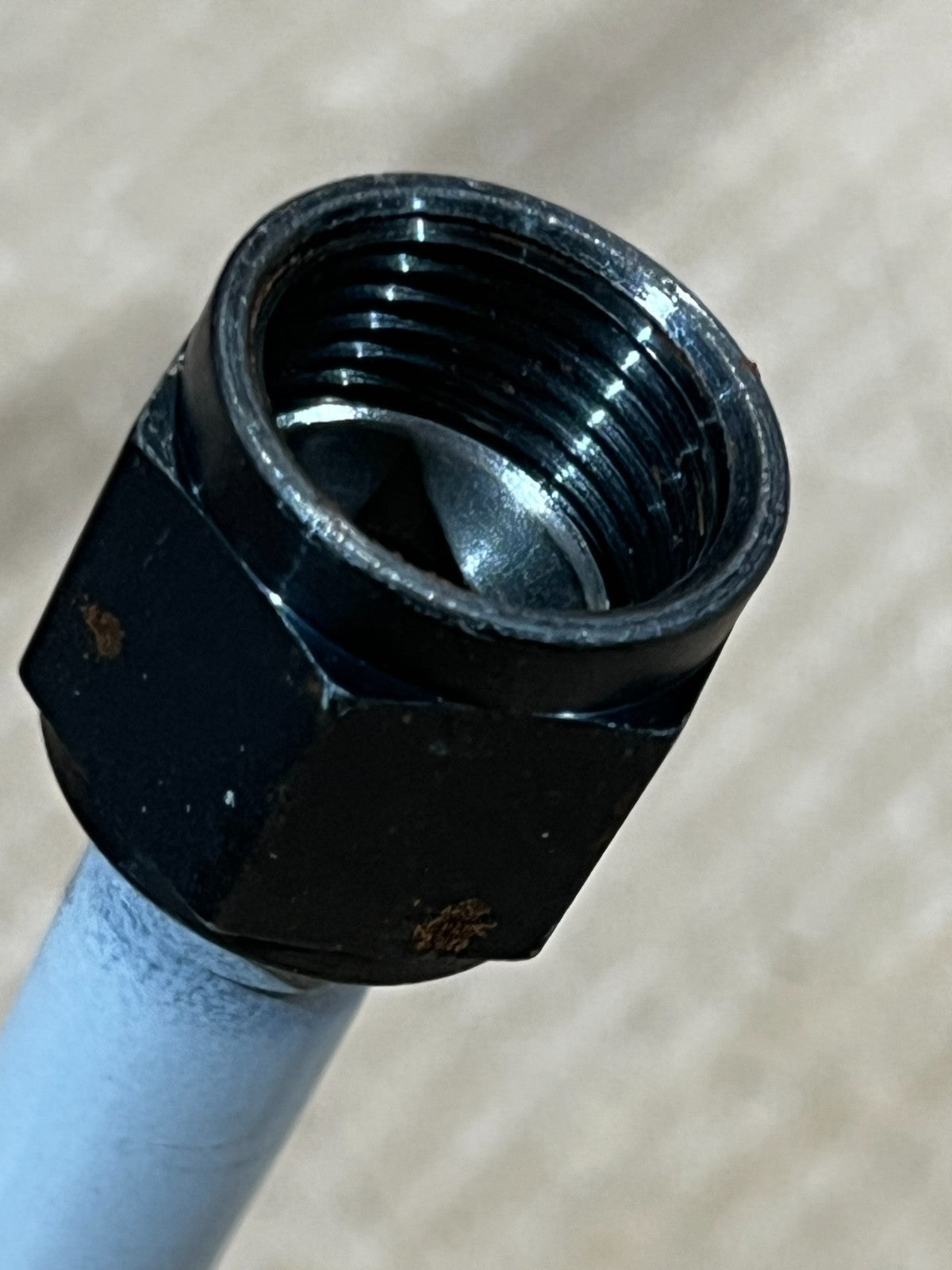

• End Connection Spec/Std: MIL, MS20819, Part No. MS20819-8 and AN818-8
• Nominal Thread Size: Single end, 0.750 in
• Material: Single end - Steel; Tubing - Steel Comp 304
• Material Document: MIL-T-8504, CO-304
• Thread Series: Unified National Joint Fine (UNJF)
