M88A2 HERCULES TANK 12477556 FUEL FLUID FILTER ELEMENT R9W2501 2940-01-434-5206

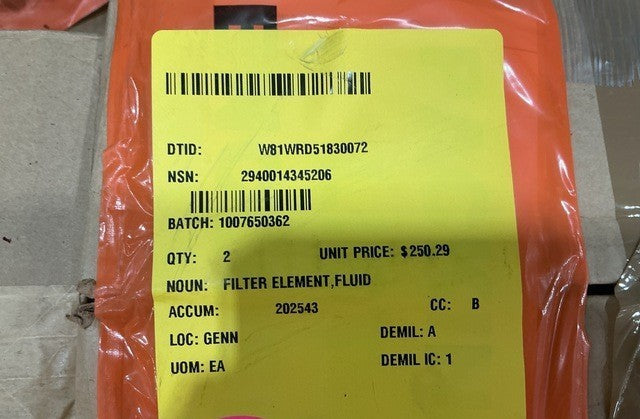

JSN INC 12477556 Fluid Filter Element (2940-01-434-5206)

Stainless steel fluid filter element, 200 x 200 mesh screen, for the M88A2 HERCULES TANK.

Part Information

• Manufacturer: JSN INC
• Part Number: 12477556
• NSN: 2940-01-434-5206
• End Item: M88A2 HERCULES TANK

Specifications

• Body Diameter: 4.120 in nominal
• Body Inside Diameter: 1.863 in nominal
• Body Overall Length: 12.590 in nominal
• Temp Rating: 180.0°F maximum
• Special Features: 200 x 200 mesh per screen scale, stainless steel twill weave, opening size .0027-68 micron, 42 x 42 support mesh per screen scale, stainless steel
• Material: Steel, corrosion resisting (screening)
• Media For Which Designed: Fuel/Oil, hydrocarbon
• Special Test Features: Fluid temperature range -60°F to +350°F; pressure drop across clean filter 5.0 PSI max at 50 GPM using MIL-PRF-5606 hydraulic fluid at 100°F ± 5°F; filtration area 800 sq in
