M88A2 HERCULES BAE SYSTEMS 12364344-1 SUSPENSION TORSION BAR 2510-01-414-2274

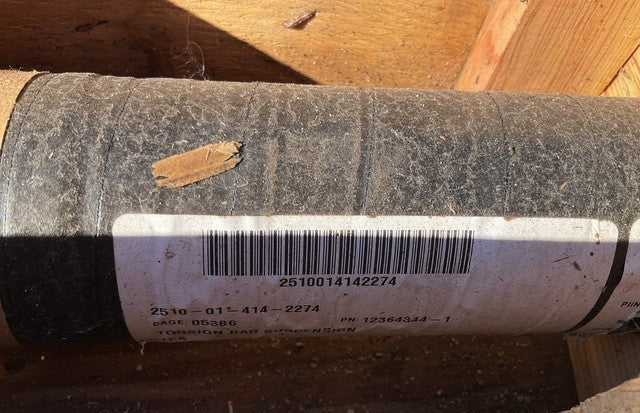

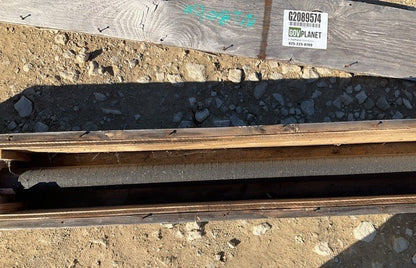

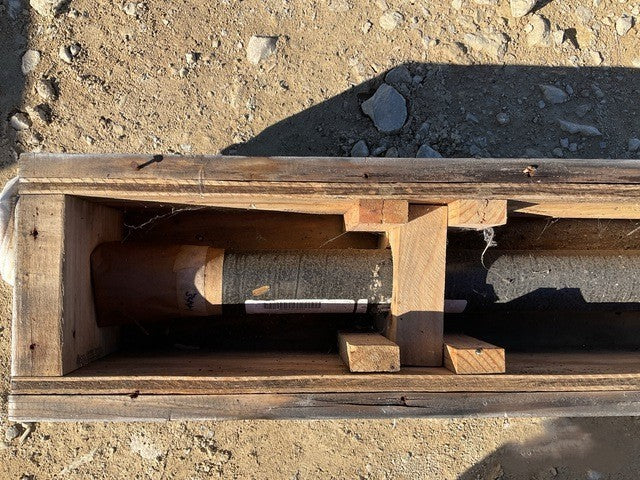

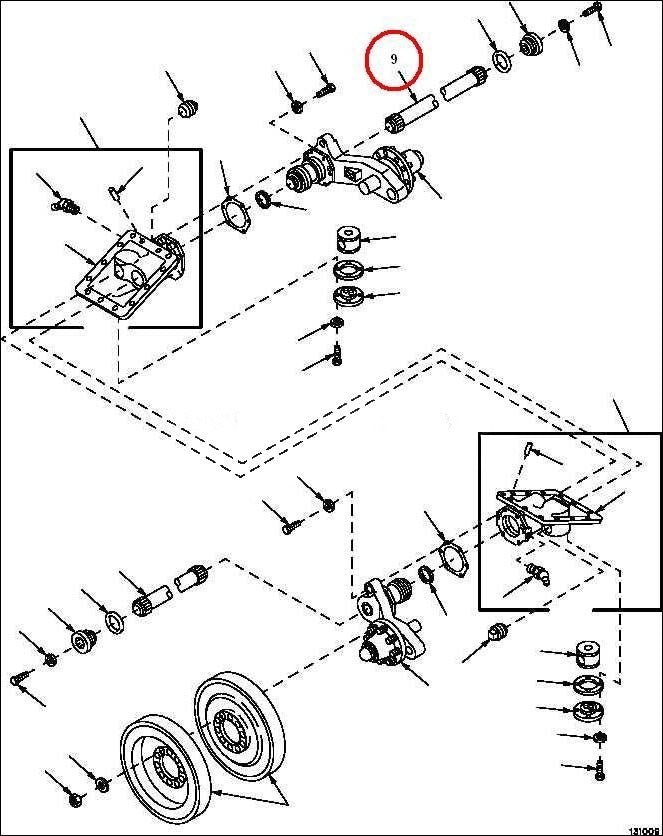

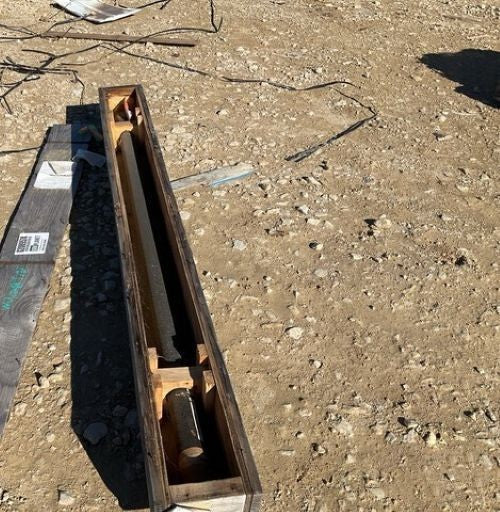

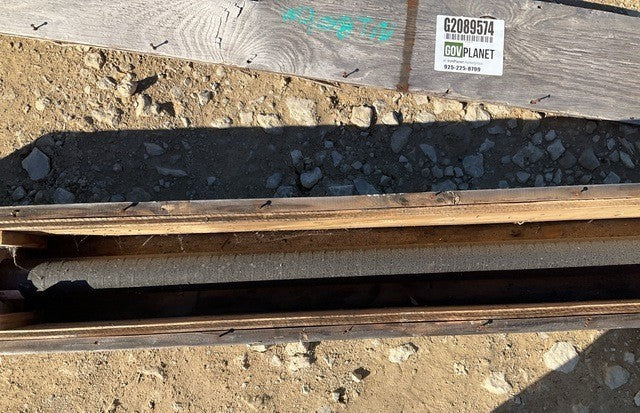

BAE SYSTEMS 12364344 Suspension Torsion Bar (2510-01-414-2274)

Solid steel suspension torsion bar, serrated ends, for the M88A2 HERCULES.

Part Information

• Manufacturer: BAE Systems Land & Armaments L.P.
• Part Number: 12364344
• NSN: 2510-01-414-2274
• End Item: M88A2 HERCULES
• CAGE Code: 06085

Specifications

• Overall Length: 77.250 in nominal
• Outside Diameter: 2.350 in nominal
• Construction: Solid
• Material: Steel
• First End Cross-Section: Serrated, 55 teeth, 1.120 in serration length, major dia 2.745-2.750 in, pressure angle 48.73°
• Second End Cross-Section: Serrated, 57 teeth, 1.120 in serration length, major dia 2.840-2.845 in, pressure angle 48.73°
• Second End Thread: 1/2-20 UNF, Class 2B, right-hand
• Second End Internal Thread Length: 0.880 in nominal
• Twist Direction: Clockwise
• Solid Bar End Characteristic: First End Plain; Second End Threaded Hole
