M88A2 Full-tracked Tank 12364733 Prebent Metal Tube Assembly | NSN 4710-01-417-2259

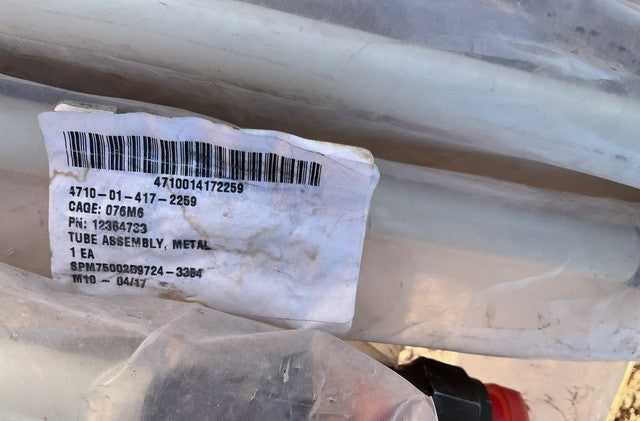

12364733 Metal Tube Assembly (4710-01-417-2259)

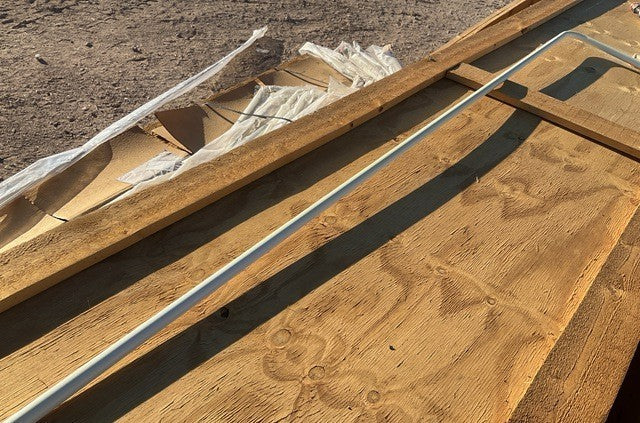

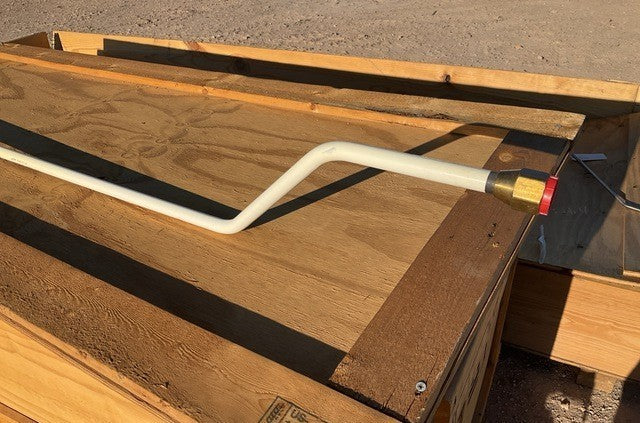

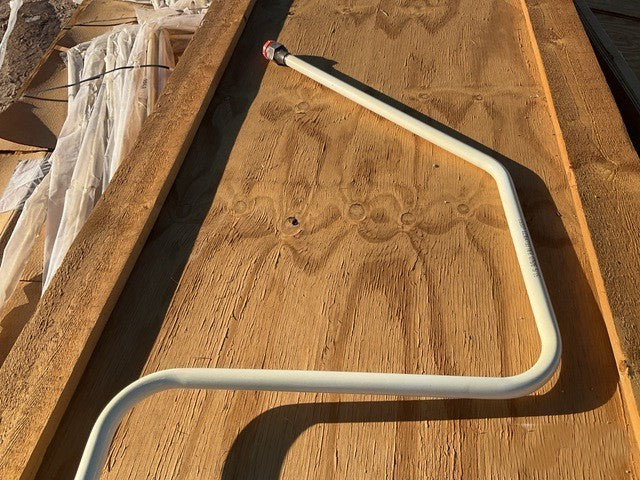

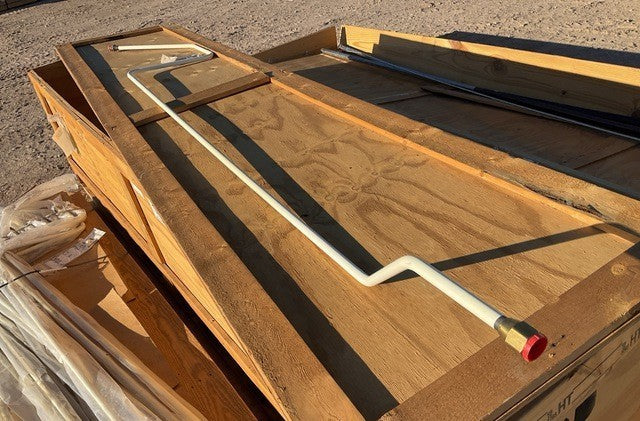

Prebent steel metal tube assembly, 0.750 in. tube outside diameter, for the M88A2 Full-tracked Tank.

Part Information

• Design Control Activity: U S Army Tank Automotive Command
• Part Number: 12364733
• NSN: 4710-01-417-2259
• End Item: M88A2 Full-tracked Tank

Specifications

• Wall Thickness: 0.049 in. nominal
• Tube Outside Diameter: 0.750 in. nominal
• Design Form: Prebent
• Thread Class: 2B; 3B
• Thread Direction: First End Right-Hand; Second End Right-Hand
• Mating End Quantity: 1
• Seat Angle: 33.0°; 45.0°
• Nominal Thread Size: First End 1.062 in.; Second End 1.062 in.
• Thread Series Designator: First End UNJ; Second End UNS
• End Connection Spec/Std: AN817-12 and MS39166-9
• Material, First End: Steel
• Material, Second End: Copper Alloy 268/260/240/230/377/360/342/353/262/270/272/274/280/330/331/332/335/340/344/345/347/348/350/356/370/462/464/465/466/467/482/485
• Material, Tubing: Steel Comp MT1010 or MTX1020
