M60A1 & M48A5 ARMORED LAUNCH BRIDGE 12252582 ANGLE BRACKET 5340-01-044-8386 NOS

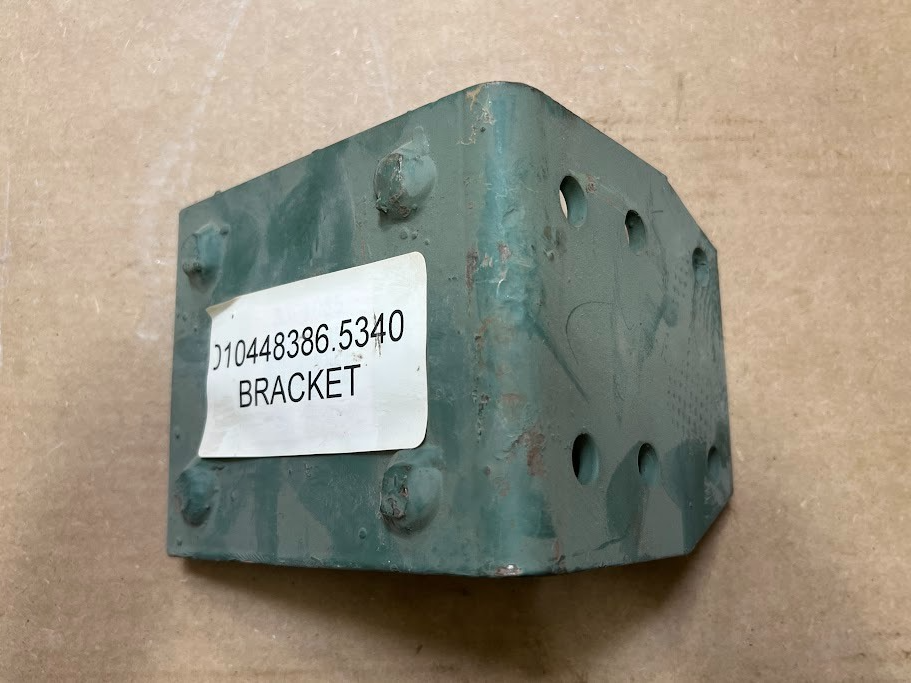

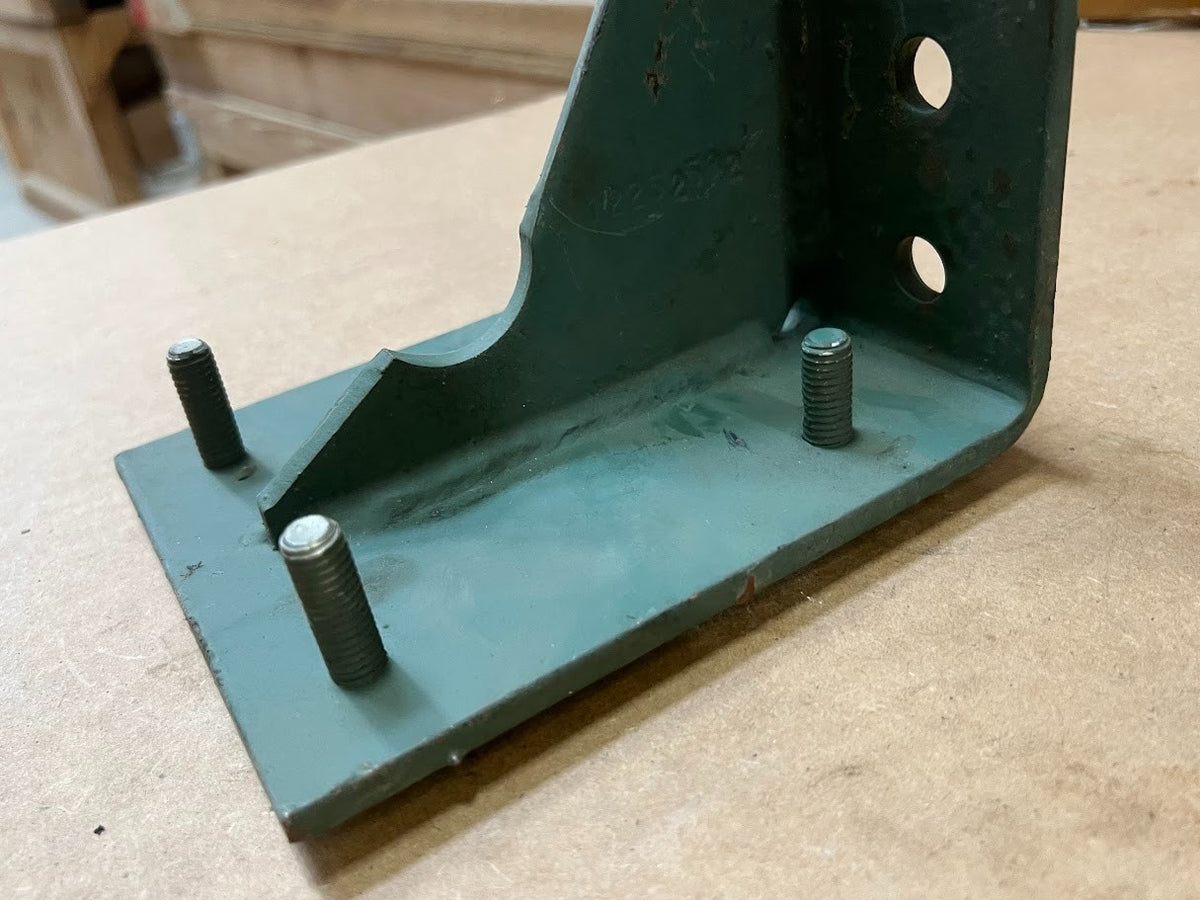

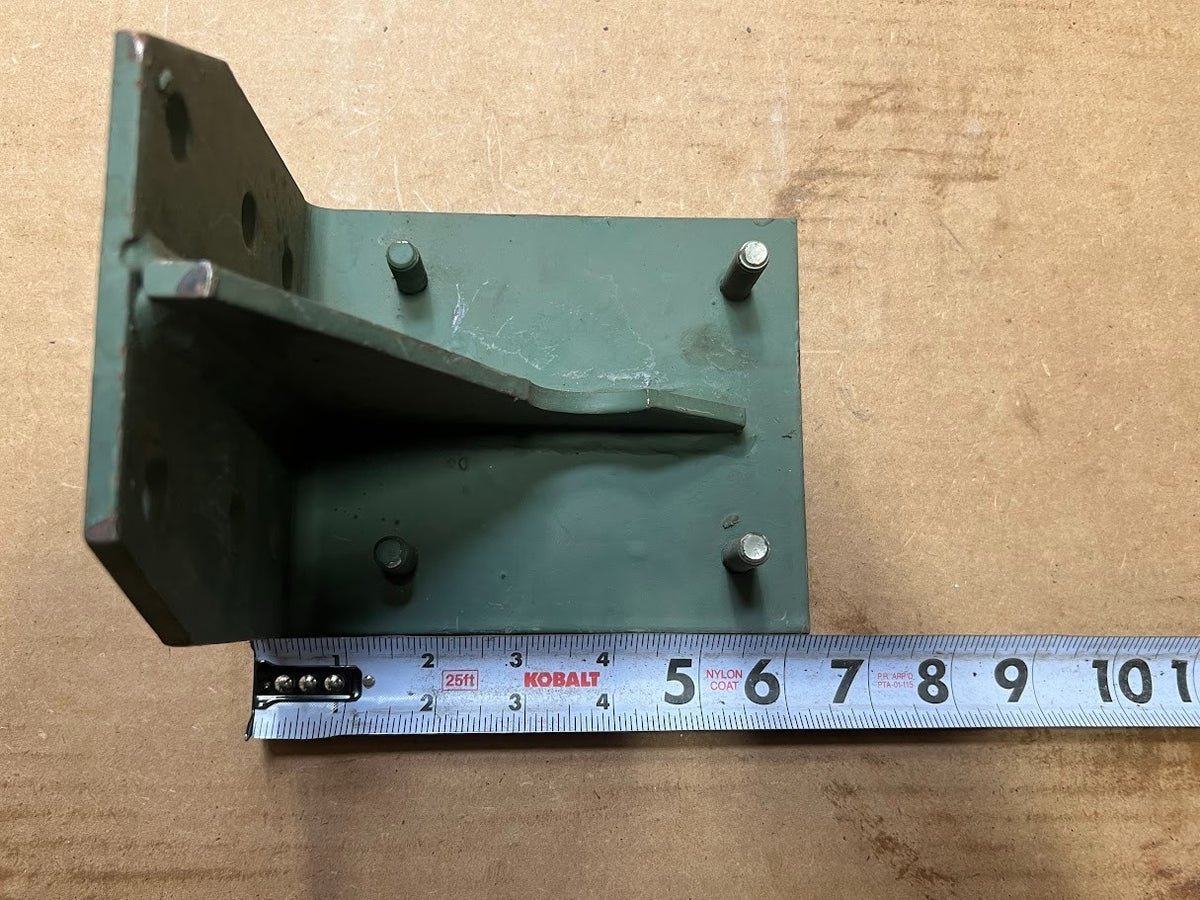

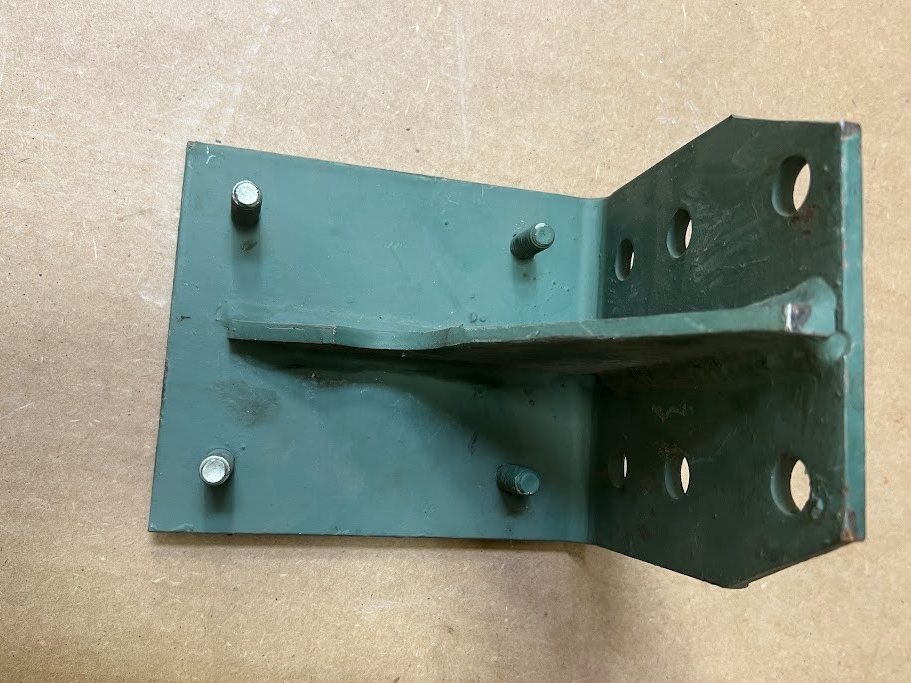

12252582 Angle Bracket (5340-01-044-8386)

Steel angle bracket, first leg 5.310 in nominal length, second leg 6.130 in nominal length, 90 degree nominal first leg angle, for the M60A1 & M48A5 Armored Launch Bridge.

Part Information

• Design Control Activity: U.S. Army Tank Automotive Command
• Part Number: 12252582

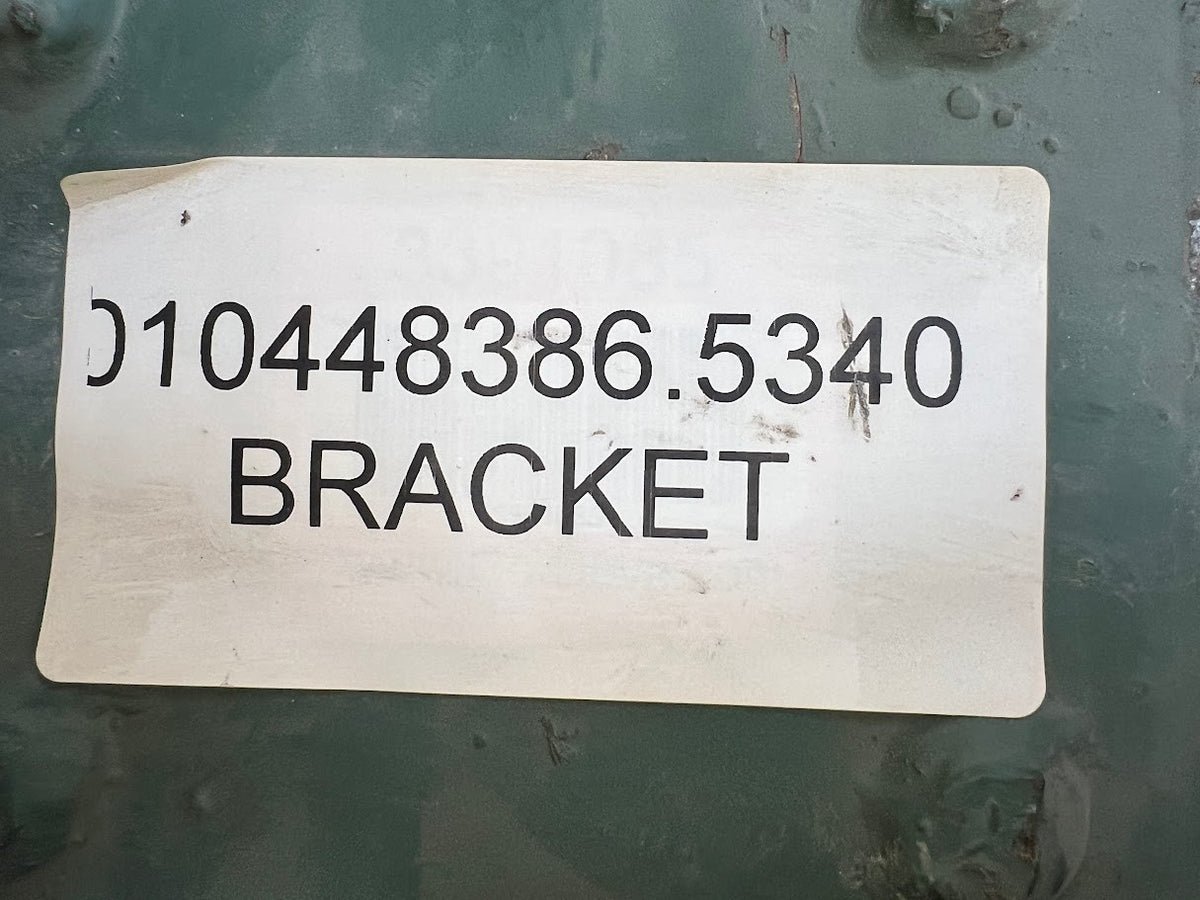

• NSN: 5340-01-044-8386
• End Item: M60A1 & M48A5 Armored Launch Bridge

Specifications

• Material: Steel
• First Leg Length: 5.310 in nominal
• First Leg Width: 5.000 in nominal
• First Leg End Width: 3.500 in nominal
• First Leg Thickness: 0.250 in nominal
• First Leg Angle: 90.0 degrees nominal
• Second Leg Length: 6.130 in nominal
• Second Leg Thickness: 0.250 in nominal
• Second Leg Hole Diameter: 0.375 in min / 0.380 in max
• Second Leg Hole Centers (Width): 3.250 in nominal
• Second Leg Hole Centers (Length): 3.875 in nominal
• Second Leg Edge to Hole (Width): 0.880 in nominal
• Second Leg Edge to Hole (Length): 0.755 in nominal
• Second Leg Relationship to First Leg: Not Identical
