M548A1 6-TON Cargo Mobile Power Technologies 10861607 Tow Hook 2540-00-679-8035

Name: M548A1 6-TON Cargo Mobile Power Technologies 10861607 Tow Hook 2540-00-679-8035
SKU: 5016995179323
Price: 84.64 USD
Availability: InStock

$84.64 USD

Sale Sold out

Shipping calculated at checkout.

Quantity

NSN 2540-00-679-8035 Specs and cross-references for NSN 2540-00-679-8035 (opens in a new tab) ↗

E.C.A ETABLISSEMENT 10861607 Tow Hook (2540-00-679-8035)

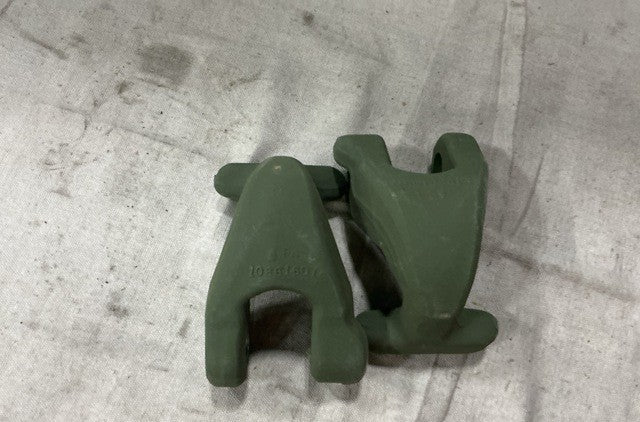

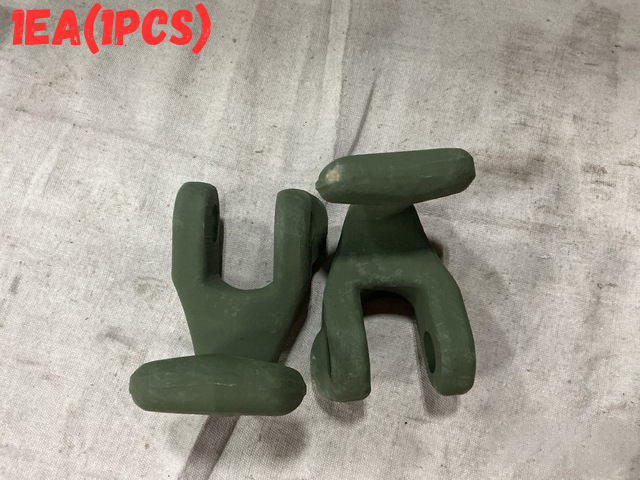

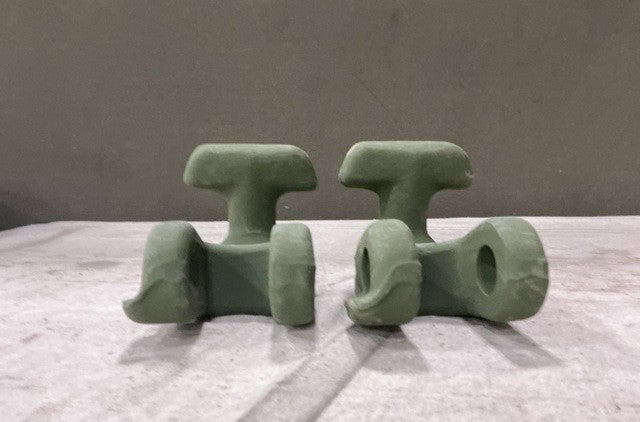

Metal tow hook for the M548A1.

Part Information

Manufacturer: E.C.A ETABLISSEMENT

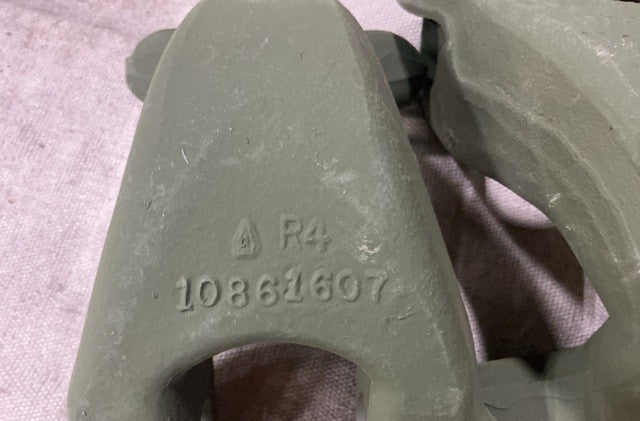

Part Number: 10861607
NSN: 2540-00-679-8035
End Item: M548A1

Specifications

Hole Diameter: 1.015 in min - 1.047 in max
Width: 3.750 in nominal
Fork Span Width: 1.546 in min - 1.562 in max
Fork Depth: 2.750 in nominal
Hook Inside Radius: 0.625 in min - 0.687 in max
Smallest Width: 3.250 in nominal
Length from Hole Center to Hook Head Center: 3.938 in min - 4.125 in max

View full details
