M35 CARGO TRUCK 10951177 ENGINE REAR MAIN PLAIN ENCASED SEAL 5330-00-918-0595
M35 CARGO TRUCK 10951177 ENGINE REAR MAIN PLAIN ENCASED SEAL 5330-00-918-0595
Couldn't load pickup availability
NSN 5330-00-918-0595 Specs and cross-references for NSN 5330-00-918-0595 (opens in a new tab) ↗
Sold as-is, no returns.
ER5248, 46839, 476801HAR, 5330009180595
Fits: 2.5 Ton Deuce and a Half and 5 Ton Military Truck
M35A2, M36A2, M109A3, M275 2 ½ Ton Trucks
M54 and variants 5-Ton Trucks
|
Name |
Value |
|
ACCOMMODATED SHAFT DIAMETER |
5.000 INCHES NOMINAL |
|
SEAL WIDTH |
0.485 INCHES MINIMUM AND 0.515 INCHES MAXIMUM |
|
CASE STYLE |
SQUARE |
|
HOUSING BORE DIAMETER |
6.001 INCHES MINIMUM AND 6.005 INCHES MAXIMUM |
|
SEALING ELEMENT STYLE |
ANGULAR |
|
MATERIAL |
STEEL CASE |
|
MATERIAL |
RUBBER SYNTHETIC SEALING ELEMENT |
|
SURFACE TREATMENT |
PAINT CASE |
Fits

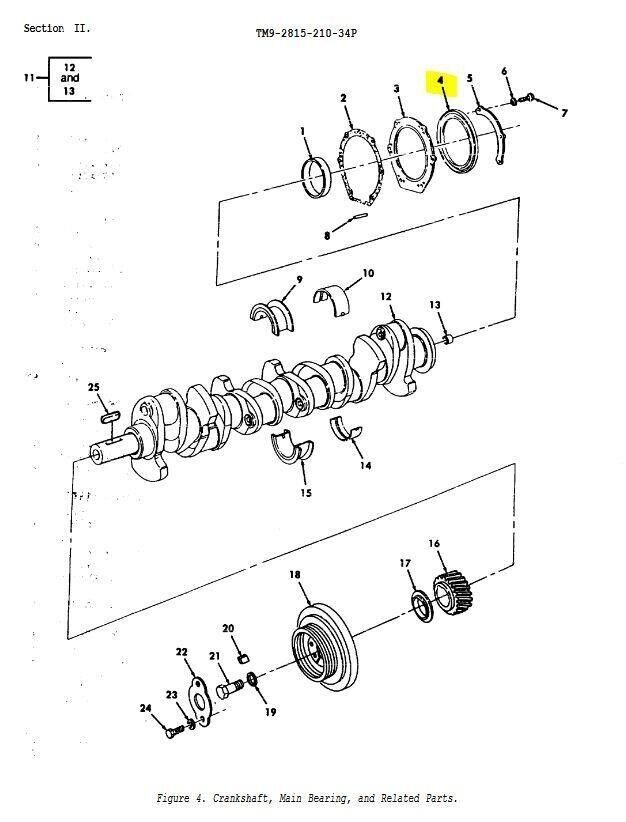

This NSN is listed in the U.S. Army repair parts manuals for:
- LDS-427 multifuel engine: LDS-427-2 (TM 9-2815-204-34P)
- LDT-465 / LDS-465 multifuel engine: M35A2 / M44A2 series (TM 9-2815-210-34P)
Confirm against your vehicle's data plate or technical manual before ordering. Call or email us with your vehicle model and we will check it for you.
