M1A1 Combat Tank 30938 Alloy Dust & Moisture Protective Plug | NSN 5340-01-073-3078
M1A1 Combat Tank 30938 Alloy Dust & Moisture Protective Plug | NSN 5340-01-073-3078
Regular price
$177.03 USD
Regular price
Sale price
$177.03 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
NSN 5340-01-073-3078 Specs and cross-references for NSN 5340-01-073-3078 (opens in a new tab) ↗

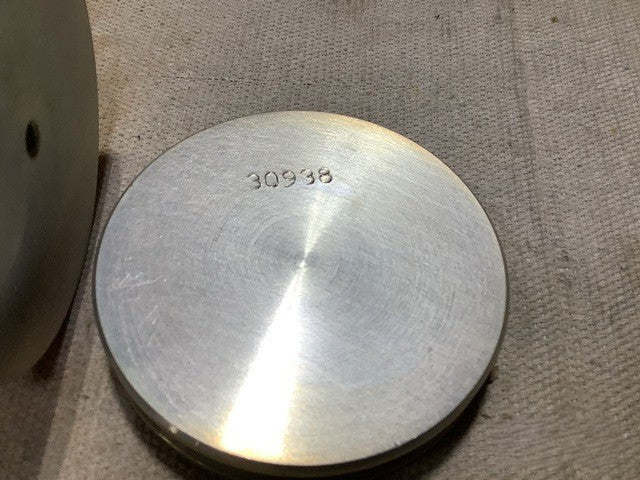

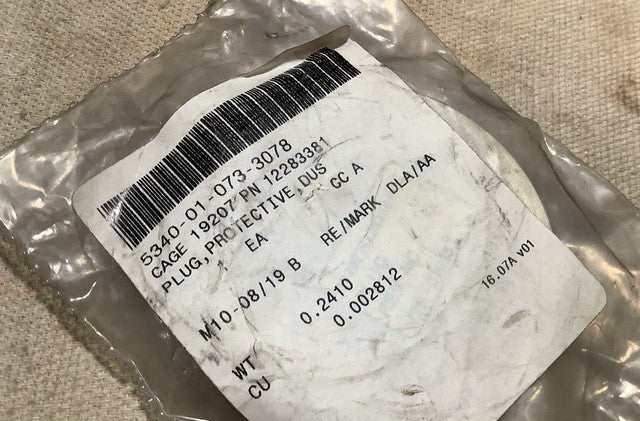

TEXTRON INC 12283381 Dust And Moisture Protective Plug (NSN 5340-01-073-3078)
Aluminum alloy dust and moisture protective plug, friction design with beveled seat, for the M1A1 Combat Tank.
Part Information
- Manufacturer: Textron Inc
- Part Number: 12283381
- NSN: 5340-01-073-3078
- End Item: M1A1 Combat Tank
- CAGE Code: 19200
Specifications
- Overall Diameter: 2.615 in. nominal
- Design Type: Friction
- Features Provided: Beveled seat
- Special Features: Ring groove 2.375 in. dia x 0.240 in. w, 0.130 in. from face; hole 0.370 in. deep, 0.190-24UNC-2B centered in one face; 0.500 in. overall thickness
- Material: Aluminum alloy
- Surface Treatment: Chromate, per MIL-C-5541, Class 1A
