M113A1 Armored Prestolite 12313371 Electrical Engine Starter | NSN 2920-01-188-7438
M113A1 Armored Prestolite 12313371 Electrical Engine Starter | NSN 2920-01-188-7438
Regular price
$597.00 USD
Regular price
Sale price
$597.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
NSN 2920-01-188-7438 Specs and cross-references for NSN 2920-01-188-7438 (opens in a new tab) ↗

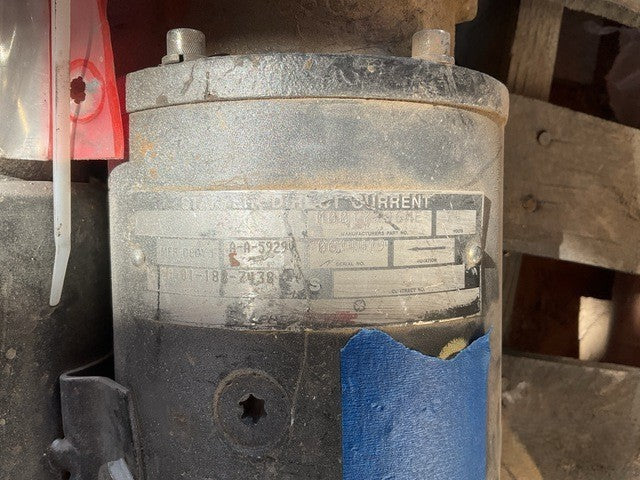

PRESTOLITE M001-7264MD Electric Engine Starter (2920-01-188-7438)
24-volt electric engine starter, clockwise shaft rotation, three threaded stud terminals, for the M113 Family of Vehicles, Block 1 Modification.
Part Information
- Manufacturer: Prestolite Electric Inc
- Part Number: M001-7264MD
- NSN: 2920-01-188-7438
- End Item: M113 Family of Vehicles, Block 1 Modification
Specifications
- Voltage: 24.0 Volts
- Shaft Rotation Direction: Clockwise
- Terminal Type and Quantity: Threaded Stud, 3
- Mounting Hole Diameter: 0.654–0.672 in
- Mounting Hole Radius: 2.875 in (nominal)
- Engaging Mechanism Opening Angular Deviation: 39.0°
- Mounting Flange Angular Deviation: 120.0°
