M113A1 ALLISON TRANSMISSION 23017995 CONTROL LINEAR VALVE SLIDE 4820-01-214-9042
M113A1 ALLISON TRANSMISSION 23017995 CONTROL LINEAR VALVE SLIDE 4820-01-214-9042
Regular price
$79.88 USD
Regular price
Sale price
$79.88 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
NSN 4820-01-214-9042 Specs and cross-references for NSN 4820-01-214-9042 (opens in a new tab) ↗

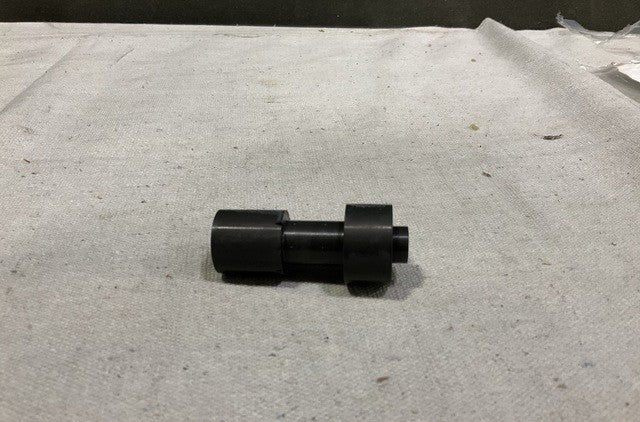

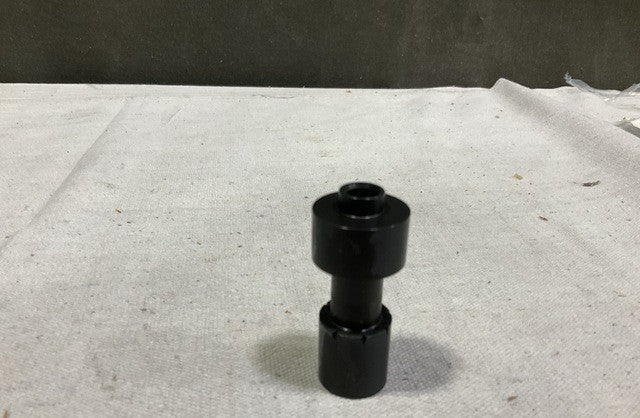

ALLISON TRANSMISSION INC 23017995 Directional Control Linear Valve Slide (4820-01-214-9042)
Aluminum alloy directional control linear valve slide for the M113A1.
Part Information
- Manufacturer: Allison Transmission Inc
- Part Number: 23017995
- NSN: 4820-01-214-9042
- End Item: M113A1
Specifications
- Material: Aluminum Alloy
- Overall Length: 2.512 in (nominal)
- Nominal Diameter One End: 1.061 in
- Nominal Diameter Other End: 0.873 in
- Inside Diameter: 0.600 in thru
- Countersink: 60° to 0.40 in, both ends
- Finish: Hardcoat anodized per TPS 11803
