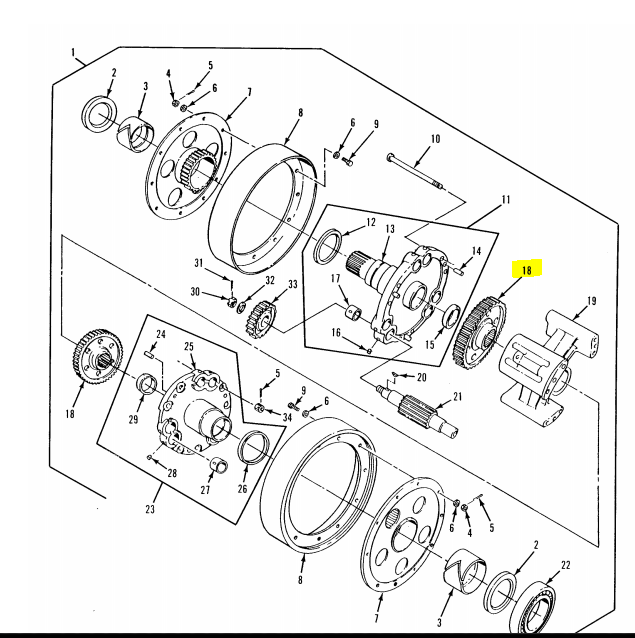

M113 Gear, Spur Differential 8756535 | NSN 3020-00-679-9257

Name: M113 Gear, Spur Differential 8756535 | NSN 3020-00-679-9257
Price: 395.0 USD
Availability: InStock

$395.00 USD

Sale Sold out

Shipping calculated at checkout.

Quantity

NSN 3020-00-679-9257 Specs and cross-references for NSN 3020-00-679-9257 (opens in a new tab) ↗

3020-00-679-9257

8756535

ODY STYLE	WEBBED, WITH LIGHTENING HOLES
SPLINE QUANTITY	25 BOTH ENDS
PITCH DIAMETER	6.4286 INCHES NOMINAL
TEETH QUANTITY	45
BORE STYLE	INVOLUTE SPLINE BOTH ENDS
SPLINE PITCH DIAMETER	1.6300 INCHES NOMINAL BOTH ENDS
HARDNESS RATING	58.0 ROCKWELL C MINIMUM AND 63.0 ROCKWELL C MAXIMUM TEETH
NOMINAL OUTSIDE DIAMETER	6.651 INCHES
TOOTH FORM	STUB
PRESSURE ANGLE	25.0000 DEGREES
NOMINAL DISTANCE BETWEEN BODY FACE AND PROTRUDING HUB END	0.593 INCHES FIRST END
NOMINAL DISTANCE BETWEEN BODY FACE AND PROTRUDING HUB END	0.593 INCHES SECOND END
FACE NOMINAL WIDTH	1.031 INCHES
BORE NOMINAL DIAMETER	1.630 INCHES BOTH ENDS
HUB STYLE DESIGNATOR	PLAIN BOTH ENDS
HUB NOMINAL DIAMETER	2.248 INCHES SECOND END
MATERIAL	STEEL OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	MIL-S-13048 MIL SPEC SINGLE MATERIAL RESPONSE OVERALL
STYLE DESIGNATOR	PROTRUDING HUBS
