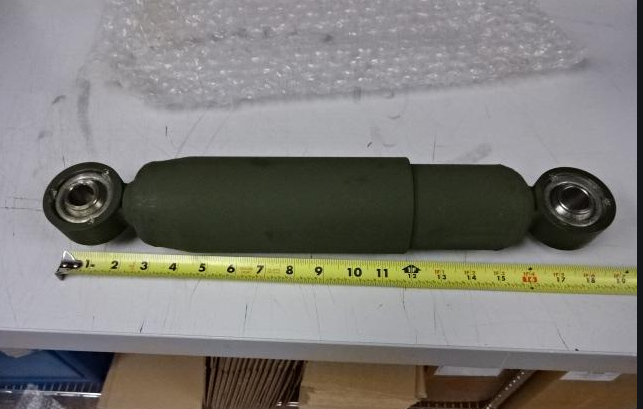

M113 APC Shock Absorber 11669371 2510-01-028-8573

HORSTMAN CANADA INC 11669371 Shock Absorber (2510-01-028-8573)

Hydraulic shock absorber with ring end connections, for the M113 APC.

Part Information

• Manufacturer: Horstman Canada Inc
• Part Number: 11669371
• NSN: 2510-01-028-8573
• End Item: M113 APC

Specifications

• Operation Method: Hydraulic
• Piston End Connection Style: Ring
• Cylinder End Connection Style: Ring
• Piston End Nominal Inside Diameter: 2.033 in.
• Piston End Nominal Outside Diameter: 2.620 in.
• Piston End Nominal Thickness: 1.202 in.
• Cylinder End Nominal Inside Diameter: 2.033 in.
• Cylinder End Nominal Outside Diameter: 2.331 in.
• Cylinder End Nominal Thickness: 1.202 in.
• Compressed Length: 16.060 in. max
• Extended Length: 24.380 in. min
• Stroke Length: 8.310 in. nominal
• Compression Resistance: 5000.0 lbs
• Rebound Resistance: 3000.0 lbs
• Protective Shield: No protection
• Furnished with: two bearings, FSCM 93019, P/N 8368-31X, mounted end connections
