M1120A4 TRUCK JARP 151234B TAN HYDRAULIC HOOK ARM CYLINDER ASSY 3040-01-642-5340
M1120A4 TRUCK JARP 151234B TAN HYDRAULIC HOOK ARM CYLINDER ASSY 3040-01-642-5340
Regular price
$5,433.92 USD
Regular price
Sale price
$5,433.92 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
NSN 3040-01-642-5340 Specs and cross-references for NSN 3040-01-642-5340 (opens in a new tab) ↗

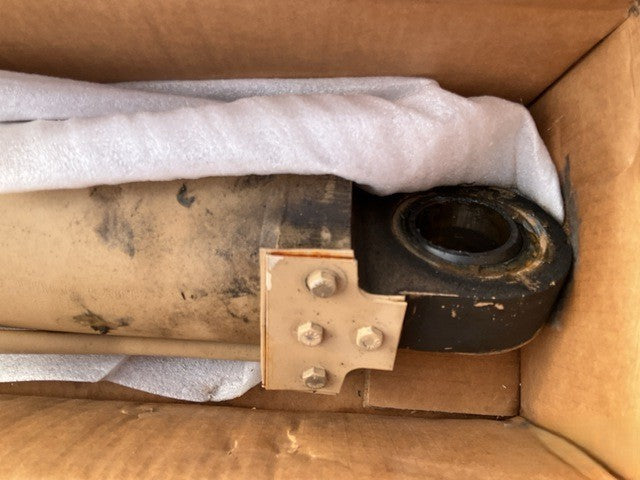

OSHKOSH DEFENSE LLC 3921292 Hook Arm Cylinder Assembly (3040-01-642-5340)
Hydraulic hook arm cylinder assembly for the M1120A4 Truck.
Part Information
- Manufacturer: Oshkosh Defense LLC
- Part Number: 3921292
- NSN: 3040-01-642-5340
- End Item: M1120A4 Truck
- CAGE Code: 17TN514
Specifications
- Mounting Type: Both Ends Bearing
- Temp Rating: -50.0°F to 120.0°F
- Bore Diameter: 5.0 in nominal
- First End Hole Diameter: 2.5 in nominal
- Compressed Length: 51.1 in nominal
- Extended Length: 84.97 in nominal
- Pressure Rating: 3750 PSI nominal
- Integral Valve Operation Method: Hydraulic
- Design Characteristics: Single Acting, Single Cylinder
- Stroke: 34.25 in
- Rod Diameter: 2.5 in
- Maximum Operating Temp: 180°F
