M109 SERIES MILITARY TANKS 10898073 ROTATING SHAFT EYE BRACKET 3040-00-133-0983
M109 SERIES MILITARY TANKS 10898073 ROTATING SHAFT EYE BRACKET 3040-00-133-0983
Regular price
$608.53 USD
Regular price
Sale price
$608.53 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
NSN 3040-00-133-0983 Specs and cross-references for NSN 3040-00-133-0983 (opens in a new tab) ↗

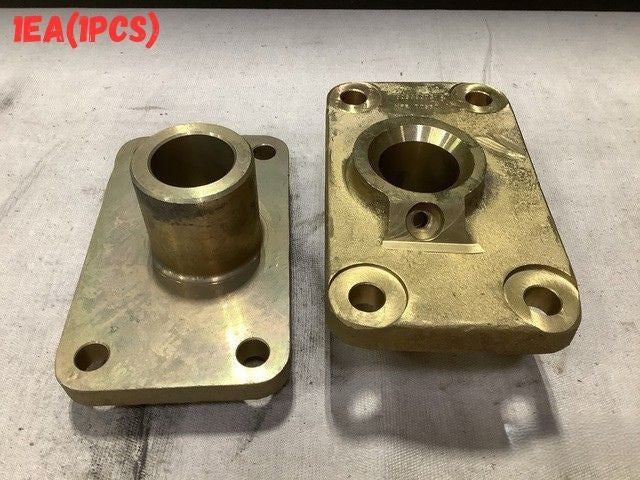

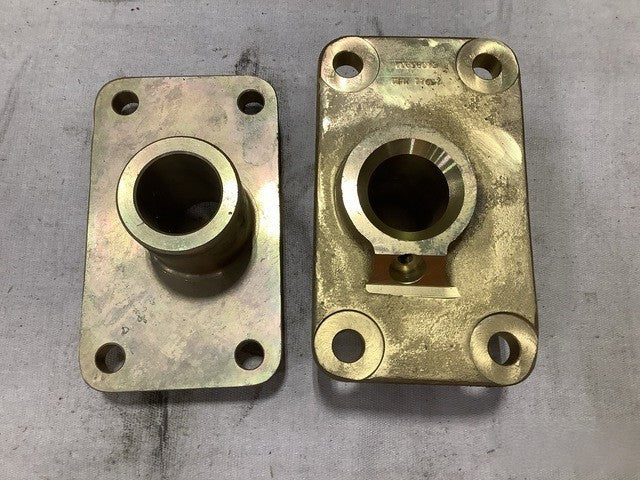

10898073 Rotating Shaft Eye Bracket (3040-00-133-0983)
Steel rotating shaft eye bracket for the M109 Series Military Tanks.
Part Information
- Design Control Activity: U S Army Tank Automotive Command
- Part Number: 10898073
- NSN: 3040-00-133-0983
- End Item: M109 Series Military Tanks
Specifications
- Width: 4.750 in nominal
- Overall Length: 8.000 in nominal
- Overall Height: 3.812 in nominal
- Bore Inside Diameter: 1.750 in min, 1.760 in max
- Center-to-center between bolt holes (length): 6.5 in
- Center-to-center between bolt holes (width): 3.075 in
- Material: Steel
- Material Spec: QQ-S-681, Class 90-60
