M1070 HEAVY TRACTOR TRUCK OSHKOSH 1988120 VERTICAL ACCESS COVER 5340-01-375-2947
M1070 HEAVY TRACTOR TRUCK OSHKOSH 1988120 VERTICAL ACCESS COVER 5340-01-375-2947
Regular price
$422.00 USD
Regular price
Sale price
$422.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
NSN 5340-01-375-2947 Specs and cross-references for NSN 5340-01-375-2947 (opens in a new tab) ↗

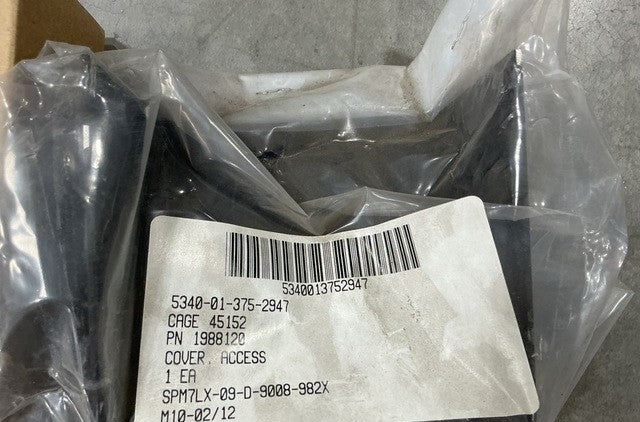

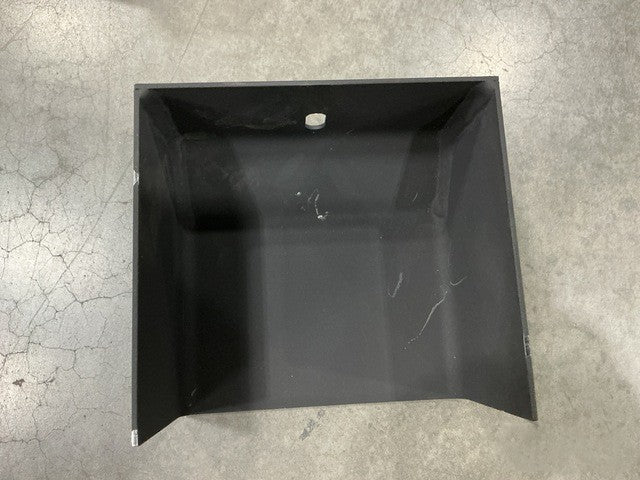

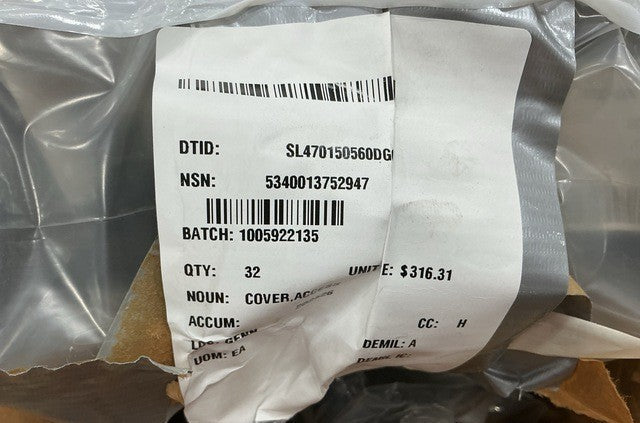

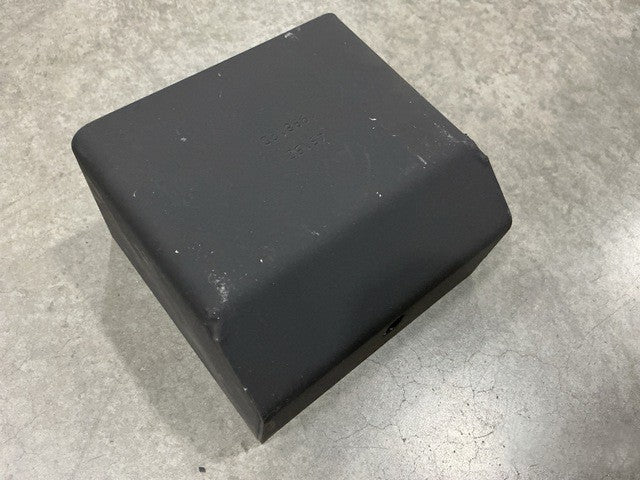

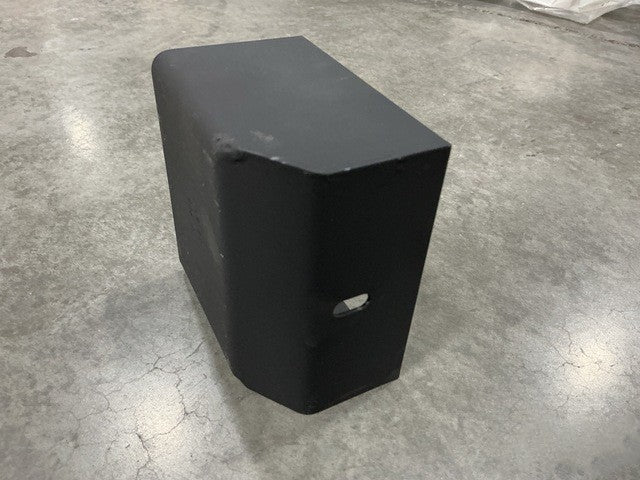

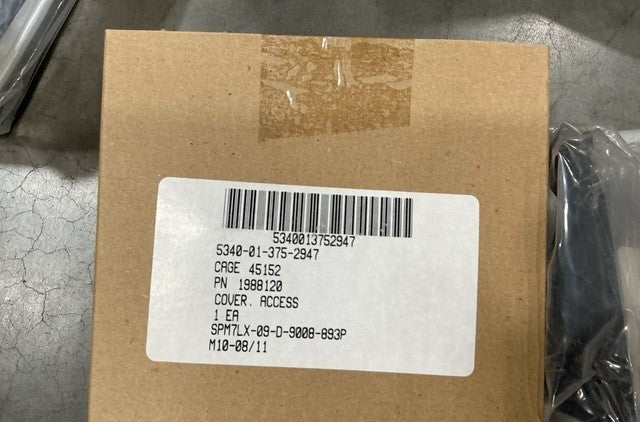

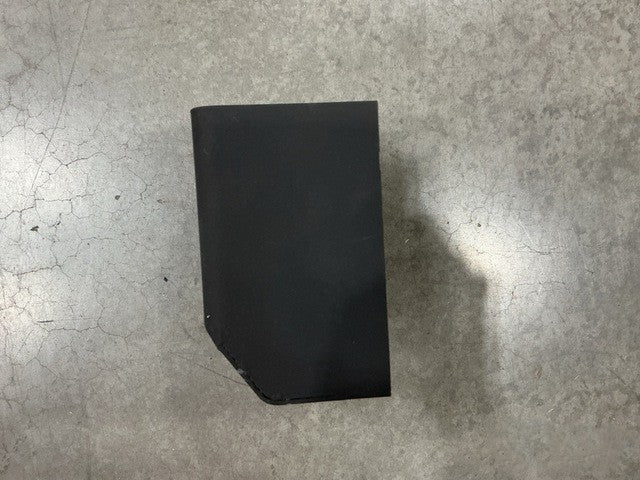

OSHKOSH CORP 1988120 Vertical Access Cover (5340-01-375-2947)
Vertical access cover for the M1070 Heavy Tractor Truck.
Part Information
- Manufacturer: Oshkosh Corp
- Part Number: 1988120
- NSN: 5340-01-375-2947
- End Item: M1070
Specifications
- Slot Width: 0.281 in (nominal)
- Slot Length: 0.562 in (nominal)
- Width: 4.000 in (nominal)
- Length: 4.310 in (nominal)
- Flange Thickness: 0.0598 in (nominal)
- Body Thickness: 0.0598 in (nominal)
- Corner Radius: 0.250 in (nominal)
- Distance from First Hole Centerline to End Along Length: 2.160 in (nominal)
- First Recess Inside Height: 2.440 in (nominal)
- Securing Device Type: Special
