M1070 Heavy Tractor Truck 2GL576 Nonmetallic Hose Assy 75307 4720-01-344-5672

DP MANUFACTURING INC 75307 Nonmetallic Hose Assembly (4720-01-344-5672)

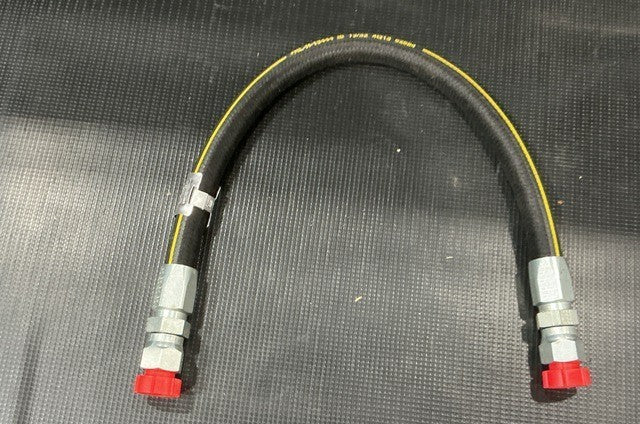

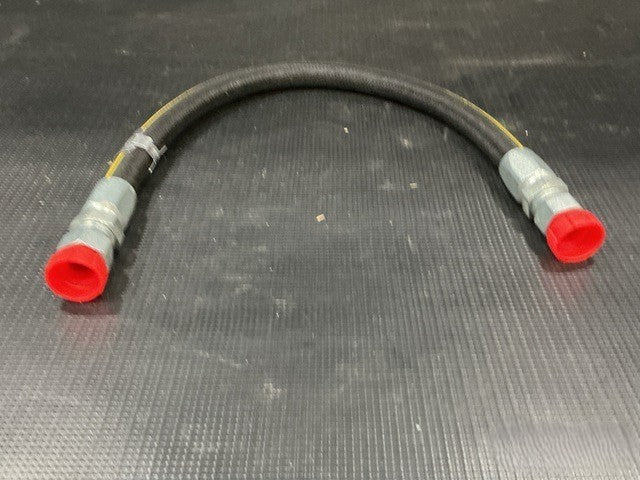

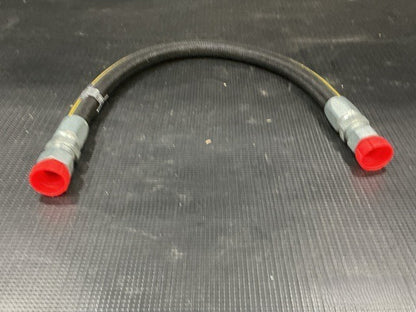

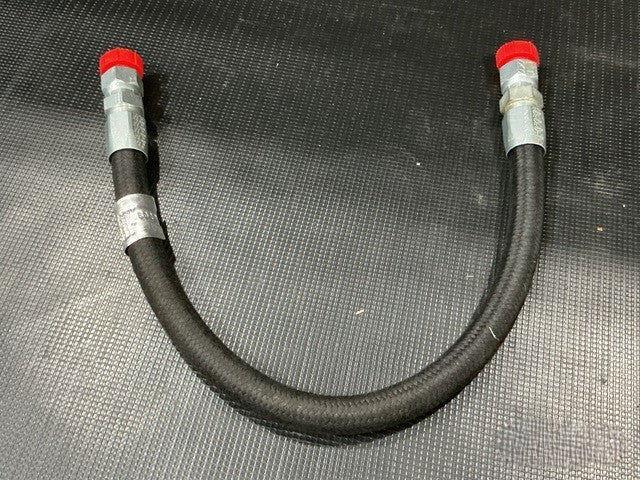

SAE 100R2 nonmetallic hose assembly with steel threaded fittings on both ends, for the M1070 Heavy Tractor Truck.

Part Information

• Manufacturer: DP Manufacturing Inc.
• Part Number: 75307
• NSN: 4720-01-344-5672
• End Item: M1070 Heavy Tractor Truck

Specifications

• Inside Diameter: 0.500 in nominal
• Outside Diameter: 0.875 in nominal
• Overall Length: 55.000 in nominal
• Minimum Inside Bending Radius: 7.000 in
• First End: Straight, threaded external tube, 0.750 in UNF, right-hand, 37° seat angle
• Second End: Straight, threaded external tube, 0.750 in UNF, right-hand
• End Fittings: Steel, complete fitting
• Structural Composition: Braided steel wire (first and third layers), molded synthetic rubber (second and outer layers)
• Inner Conveying Tube: Synthetic rubber
• Operating Pressure: 3500 PSI maximum
• Burst Test Pressure: 14000 PSI
• Hydrostatic Test Pressure: 7000 PSI
• Temperature Rating: -40.0°F to 250.0°F
• Media: Fuel/Oil, hydrocarbon
• Outer Covering: Abrasion resistant, oil resistant, weatherproof
• Specification: SAE 100R2, Size 8-81343
