SECO Parts and Equipment

M-88 SERIES MILITARY TANKS 401832 FLANGE TO BOSS ELBOW 401832-1 | 4730-01-268-2416

M-88 SERIES MILITARY TANKS 401832 FLANGE TO BOSS ELBOW 401832-1 | 4730-01-268-2416

$1,545.28 USD
$1,545.28 USD
Sale Sold out
Shipping calculated at checkout.

NSN 4730-01-268-2416 Specs and cross-references ↗

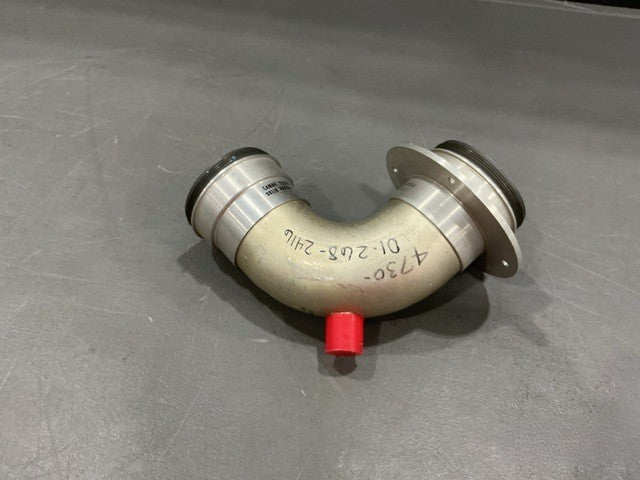

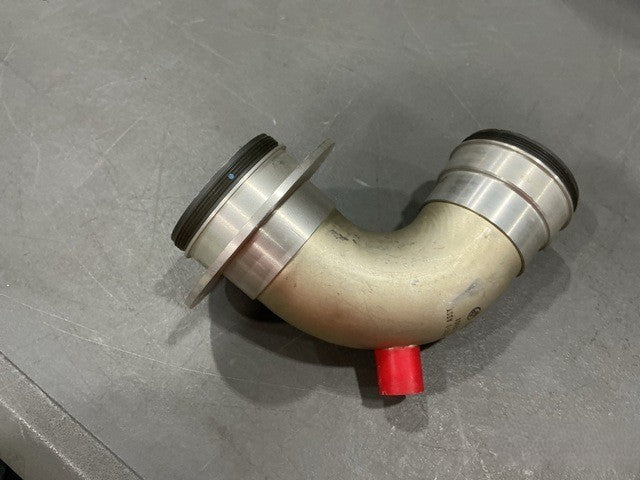

EATON AEROQUIP LLC 401832-1 Flange To Boss Elbow (4730-01-268-2416)

Aluminum alloy flange-to-boss elbow, 90-degree flow angle, for the M-88 Series Military Tanks.

Part Information

  • Manufacturer: Eaton Aeroquip LLC
  • Part Number: 401832-1
  • NSN: 4730-01-268-2416
  • End Item: M-88 Series Military Tanks

Specifications

  • Elbow Material: Aluminum Alloy 6061
  • Flange Material: Aluminum Alloy 2024 (QQ-A-225 to 6)
  • Sleeve Material: Aluminum Alloy 2024
  • Surface Treatment (Flange/Sleeve): Anodize, MIL-A-8625 Type II Class I
  • First End: Flange, Round With Holes, 4 Bolt Holes, Raised Straight Face
  • Inlet: Threaded Internal Boss, 0.438 in, UNJF, Single Inlet High Heel
  • Second End: Threaded External Boss, 3.000 in, UN, 16 TPI
  • Thread Class: 2A / 3B
  • Flow Angle: 90.0 Degrees
  • Leg Length (First End, Inlet, Second End): 4.890 in Nominal
