M-88 Series Military Recovery Tank 12290966 Circular Gasket | NSN 5330-01-096-9333 USA
M-88 Series Military Recovery Tank 12290966 Circular Gasket | NSN 5330-01-096-9333 USA
Regular price
$25.00 USD
Regular price
Sale price
$25.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
NSN 5330-01-096-9333 Specs and cross-references for NSN 5330-01-096-9333 (opens in a new tab) ↗

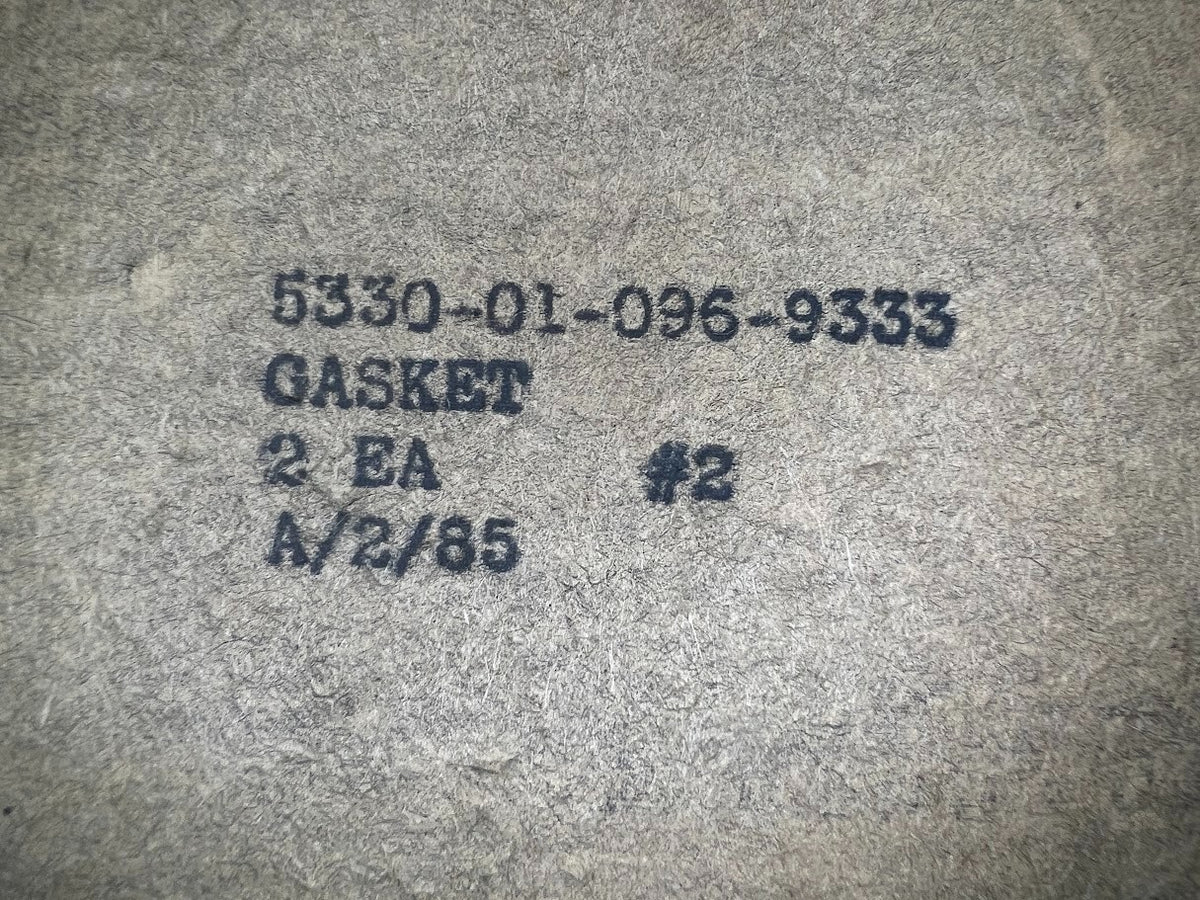

12290966 Circular Gasket (NSN 5330-01-096-9333)
Circular gasket for the M-88 Series Military Recovery Tank.
Part Information
- Design Control Activity: U.S. Army Tank Automotive Command
- Part Number: 12290966
- NSN: 5330-01-096-9333
- End Item: M-88 Series Military Recovery Tank
Specifications
- Hole Diameter: 0.550 in minimum, 0.569 in maximum
- Bolt Circle Diameter: 10.000 in nominal
- Outside Diameter: 11.000 in nominal
- Aperture Diameter: 9.120 in nominal
- Cross-Sectional Thickness: 0.032 in nominal
- Bolt Hole Quantity: 8
