M-80 Water Liquid Fuel Heater 8611345-9 Nonmetallic Hose Assy 4720-01-485-8125

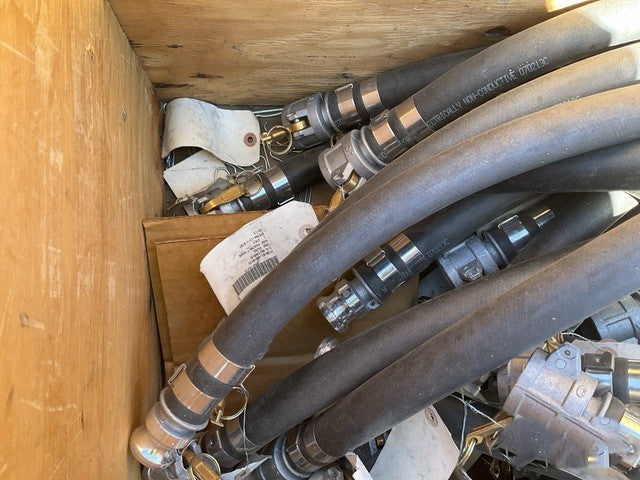

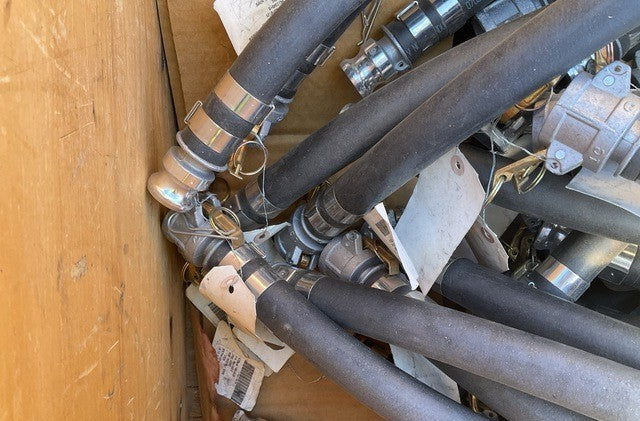

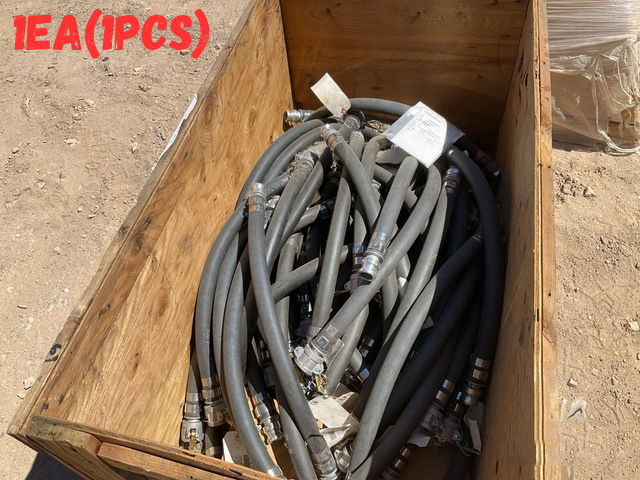

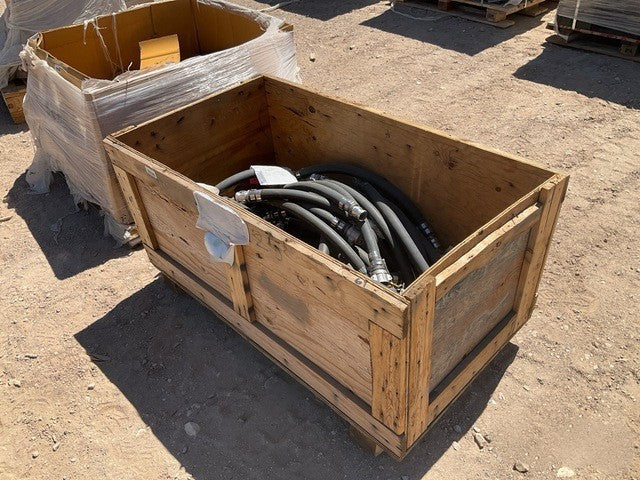

8611345-9 Nonmetallic Hose Assembly (4720-01-485-8125)

Nonmetallic hose assembly, water media, for the M-80 Water Liquid Fuel Heater.

Part Information

• Design Control Activity: Warner Robins Air Logistics Center

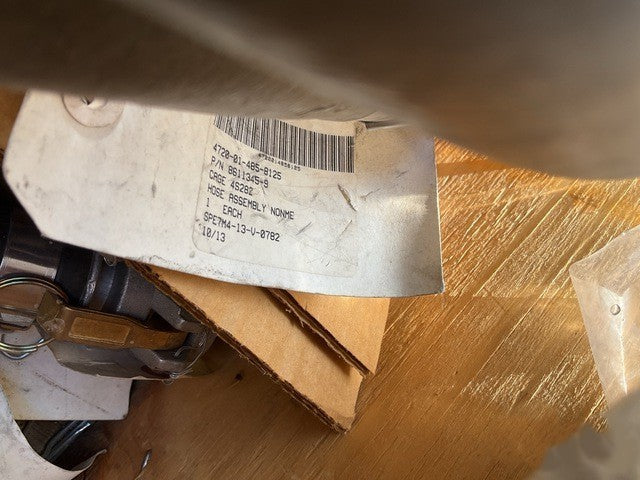

• Part Number: 8611345-9
• NSN: 4720-01-485-8125
• End Item: M-80 Water Liquid Fuel Heater

Specifications

• Inside Diameter: 1.000 in nominal
• Outside Diameter: 1.420 in nominal
• Overall Length: 28.620 in nominal
• Minimum Inside Bending Radius: 10.000 in
• Temp Rating: -40.0°F to 212.0°F
• Burst Test Pressure: 800 PSI
• Operating Pressure: 200 PSI max
• Media: Water
• Exterior Color: Black
• Outer Covering: Heat and Ozone Resistant
• Inside Surface: Smooth
• First End: Straight, Internal Quick Disconnect, 1.000 in
• Second End: Straight, External Quick Disconnect, 1.000 in
• Structural Composition: Braided Synthetic Cord / Molded Rubber, Ethylene Propylene / Braided Synthetic Cord

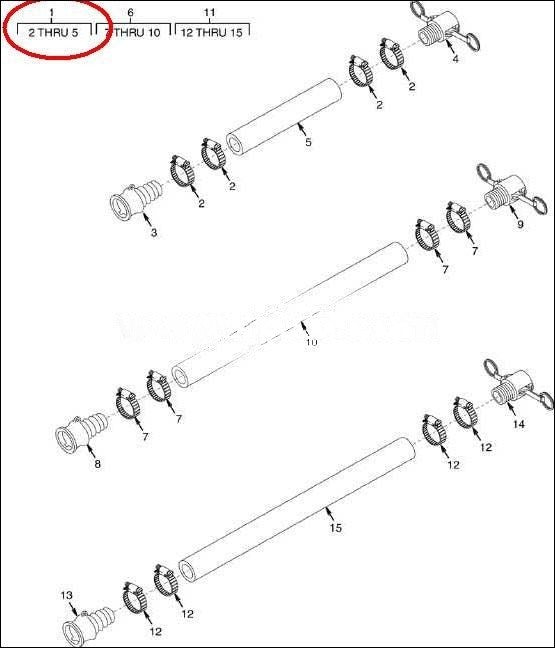

Included Components

• 4 ea hose clamps, commercial grade (worm screw type)
